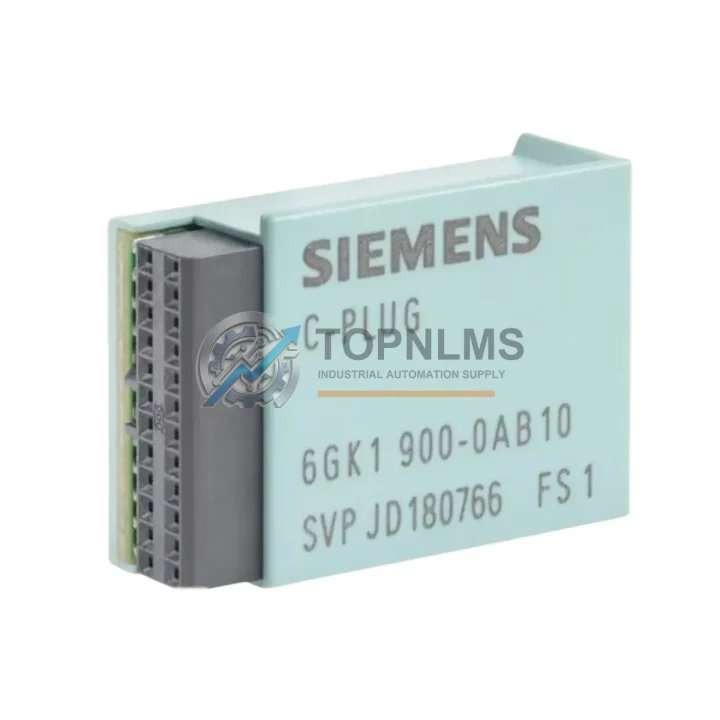

Siemens 6GK1900-0AB10 Original Industrial Spare SIMATIC NET Compatible

Product Overview

Siemens 6GK1900-0AB10 Original Industrial Spare SIMATIC NET Compatible: System Stability and Industrial Spare Parts Maintenance Value

In modern industrial automation environments, network infrastructure reliability is as critical as the PLC or DCS logic it supports. The Siemens 6GK1900-0AB10 C-PLUG — a compact, removable configuration memory module designed for the SIMATIC NET SCALANCE family of managed industrial Ethernet switches and communication devices — is one of those deceptively small components that carries enormous operational weight. When a SCALANCE switch fails or requires replacement, the C-PLUG allows the entire device configuration to be transferred to a replacement unit within minutes, eliminating the need for manual reconfiguration and dramatically reducing unplanned downtime.

For maintenance engineers managing aging automation infrastructure, the 6GK1900-0AB10 is not merely a spare part — it is a downtime insurance policy. Facilities running SCALANCE X-200, X-300, X-400, W-700 series switches, or SCALANCE S security modules, depend on this module to preserve switch configurations including VLAN settings, port mirroring rules, PROFINET device names, and SNMP parameters. Without a pre-loaded C-PLUG on the shelf, a switch failure can translate into hours of reconfiguration work by a network specialist — time that most production environments simply cannot afford.

Critical Technical Specs Table

Preventive Maintenance Strategy

A C-PLUG is most valuable when it is already loaded and on the shelf before a failure occurs. Experienced maintenance planners treat the 6GK1900-0AB10 as a mandatory companion to every SCALANCE switch in their network cabinet. When conducting scheduled network infrastructure inspections — typically aligned with quarterly or semi-annual preventive maintenance cycles — engineers should verify that each managed switch has a C-PLUG installed and that the stored configuration is current.

During these inspections, it is equally important to assess the health of adjacent components in the same control cabinet or network segment. The SCALANCE X208 (6GK5208-0BA10-2AA3) and SCALANCE X216 (6GK5216-0BA00-2AA3) managed switches are common hosts for the C-PLUG and should be checked for port error counters, firmware currency, and physical connector condition. If the cabinet also houses a SCALANCE W788-2 wireless access point, its configuration should likewise be backed up to a C-PLUG to protect against radio module failures in harsh environments.

Beyond the switches themselves, the surrounding electrical infrastructure deserves attention during the same maintenance window. The SITOP PSU100S 24V DC power supply modules feeding the network cabinet should be load-tested and their output voltage verified, as undervoltage conditions are a leading cause of intermittent switch resets that can corrupt C-PLUG write cycles. SIMATIC NET IE FC RJ45 Plug 180 connectors (6GK1901-1BB10-2AA0) on field-side Ethernet cables should be inspected for corrosion or mechanical damage, particularly in environments with vibration or humidity. Replacing degraded connectors proactively prevents the kind of intermittent link failures that are notoriously difficult to diagnose under production pressure.

For facilities running PROFINET IO over SCALANCE infrastructure, the SIMATIC S7-300 or S7-1500 CP communication processors — such as the CP 343-1 or CP 1543-1 — should be included in the inspection checklist. A misconfigured or failed CP module can cause the entire PROFINET segment to lose synchronization, making a pre-configured C-PLUG on the switch side even more critical for rapid recovery. Similarly, SIMATIC NET OLM optical link modules used in fiber-optic ring topologies should have their signal levels checked and their configurations backed up.

Maintenance teams managing older SCALANCE X-200 installations should also stock 24V DC DIN rail terminal blocks and Phoenix Contact or Weidmüller fuse terminal modules for the power distribution section of the network cabinet. These low-cost components are frequently overlooked until a blown fuse takes down an entire network segment. Pairing a C-PLUG replacement strategy with a comprehensive cabinet-level spare parts kit — including SIMATIC NET media converters and fiber SFP transceiver modules — creates a resilient maintenance posture that minimizes both diagnostic time and procurement lead time during emergencies.

Strategic Replacement Solutions

The 6GK1900-0AB10 C-PLUG directly addresses one of the most costly scenarios in industrial network maintenance: the unplanned replacement of a managed switch in a live production environment. Without a pre-configured C-PLUG, replacing a failed SCALANCE switch requires a network engineer to manually re-enter all configuration parameters — VLAN assignments, port settings, PROFINET device names, security policies, and SNMP community strings — a process that can take anywhere from 30 minutes to several hours depending on the complexity of the installation.

With a C-PLUG already loaded with the current configuration, the replacement procedure is reduced to three steps: remove the C-PLUG from the failed switch, insert it into the replacement unit, and power on. The new switch reads the configuration automatically and resumes normal operation within seconds. This approach is fully compatible with the original system architecture — no changes to the PLC program, no PROFINET topology updates, and no HMI reconfiguration are required.

For facilities managing legacy SCALANCE X-200 series switches that are approaching end-of-life, the C-PLUG strategy also supports a phased migration path. By maintaining a library of C-PLUGs loaded with configurations for each switch in the network, maintenance teams can replace aging hardware with newer SCALANCE X-300 or X-400 series units on a planned schedule, using the C-PLUG to transfer configurations and validate compatibility before committing to the swap. This approach preserves the original system’s operational logic while progressively modernizing the network infrastructure — extending the useful life of the overall automation system without requiring a full network redesign.

TOPNLMS supplies the 6GK1900-0AB10 as a genuine original Siemens component, fully tested prior to shipment. Each unit is verified for read/write functionality and packaged to prevent ESD damage during transit. Standard lead time is 3–7 business days for in-stock units, with expedited options available for urgent maintenance requirements.

Support FAQ

Q1: Is the 6GK1900-0AB10 compatible with all SCALANCE switches?
The C-PLUG is compatible with the majority of SCALANCE X-200, X-300, X-400, and W-700 series devices, as well as selected SCALANCE S security modules. Compatibility depends on the specific device firmware version. We recommend verifying the target device’s order data sheet or contacting our technical team at [email protected] before ordering if you are unsure about compatibility with a specific SCALANCE variant.

Q2: What does the 12-month warranty cover, and how is the unit tested before shipment?
Every 6GK1900-0AB10 unit supplied by TOPNLMS undergoes functional testing prior to dispatch, including verification of read/write integrity and physical connector condition. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. In the event of a warranty claim, we provide a replacement unit or full refund after fault verification. Warranty claims are processed within 5 business days.

Q3: How should I manage C-PLUG inventory for a multi-switch network?
Best practice is to maintain one spare C-PLUG per critical switch in your network, pre-loaded with the current device configuration and stored in a labeled, ESD-safe bag in your spare parts cabinet. For networks with 10 or more SCALANCE switches, a minimum buffer of 2–3 unloaded spare C-PLUGs is recommended to cover simultaneous failures or configuration updates during planned maintenance windows. TOPNLMS offers volume pricing for bulk orders — contact [email protected] for a quotation.

Q4: Can the C-PLUG be reused after a switch replacement?
Yes. The 6GK1900-0AB10 is a reusable, non-volatile memory module. After a successful switch replacement, the C-PLUG can be updated with the new device’s configuration (if any changes were made) and returned to the spare parts inventory for future use. The module supports multiple write cycles and does not degrade under normal maintenance use. Always update the stored configuration after any significant network change to ensure the spare reflects the current operational state.
