Siemens 6GK1561-2AA00 Ruggedized Communication Module for Harsh Environments

Product Overview

Siemens 6GK1561-2AA00 Ruggedized Communication Module for Harsh Environments

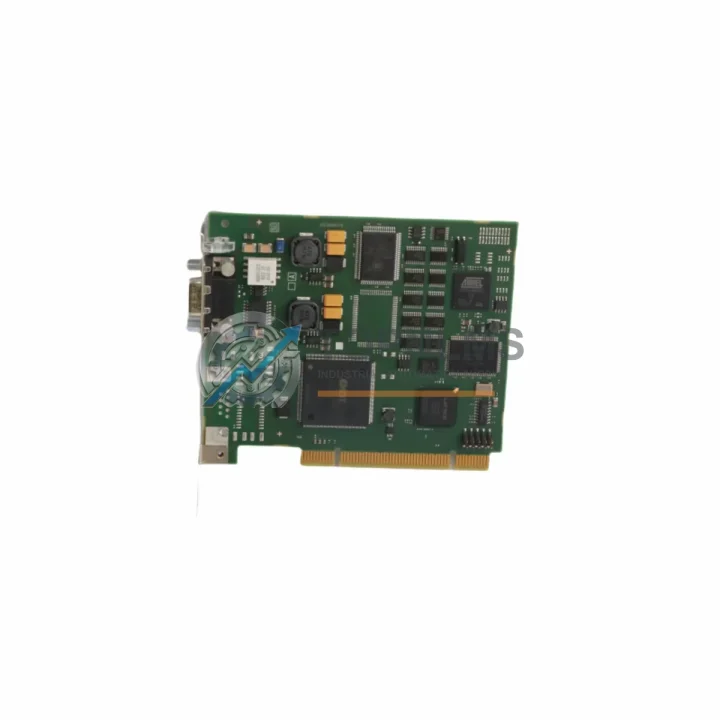

The Siemens 6GK1561-2AA00, commercially designated as the CP 5612 A2, is a PCIe-form-factor PROFIBUS DP/MPI communication processor engineered for continuous, uninterrupted operation in the most demanding industrial environments. Designed to integrate seamlessly into SIMATIC-based control architectures, this module delivers deterministic fieldbus communication even under conditions of elevated temperature, high humidity, pervasive dust, mechanical vibration, and intense electromagnetic interference — conditions routinely encountered in oil and gas processing, mining, power generation, water treatment, metallurgy, and heavy manufacturing.

Industrial automation systems cannot afford communication dropouts. A single lost telegram on a PROFIBUS DP network can cascade into unplanned downtime, safety interlocks tripping, or production batch failures. The 6GK1561-2AA00 addresses this risk through its hardened PCIe interface, robust EMC shielding, and Siemens-validated firmware that maintains DP cycle times even when the host PC is subjected to vibration or thermal cycling. Whether installed in a ruggedized industrial PC inside a control cabinet on a continuous casting line or mounted in a panel PC at a remote pump station, this CP delivers the communication reliability that critical infrastructure demands.

In a typical SIMATIC S7 or WinCC-based architecture, the 6GK1561-2AA00 acts as the communication backbone between the host SCADA workstation and field devices — including S7-300/S7-400 PLCs, ET 200M and ET 200S distributed I/O stations, SINAMICS G120 and S120 variable-frequency drives, SITOP power supply units, and SIRIUS safety relays. The module supports both PROFIBUS DP master and slave modes as well as MPI protocol, making it compatible with legacy S5 and S7 installations without requiring protocol converters or additional gateways. This backward compatibility is particularly valuable in brownfield plant upgrades where existing PROFIBUS segments must be preserved while new control hardware is introduced.

For applications involving hazardous areas or safety-rated zones, the 6GK1561-2AA00 is frequently paired with F-CPU safety controllers and PROFIsafe-capable I/O modules to form a complete functional safety communication chain. Its deterministic latency characteristics satisfy the timing requirements of safety-instrumented systems operating at SIL 2 levels, and its stable PCIe bus interface ensures that the host safety application receives process data without jitter-induced faults. In petrochemical plants and offshore platforms where Zone 1 or Zone 2 classification applies, the CP is installed in purged and pressurized enclosures alongside SITOP PSU8600 modular power supplies and SIMATIC ET 200iSP intrinsically safe I/O, forming a fully integrated hazardous-area control node.

The module’s EMI immunity is equally critical in heavy industrial settings such as electric arc furnace steelmaking, where high-frequency interference from thyristor drives and arc discharge can corrupt fieldbus signals on lesser hardware. The 6GK1561-2AA00’s shielded design and compliance with IEC 61000-4 series immunity standards ensure that PROFIBUS DP telegrams are transmitted and received without bit errors even in close proximity to high-power switching equipment. This makes it a preferred choice for metallurgical plants running SIMATIC PCS 7 distributed control systems, where the CP serves as the communication interface between the DCS operator station and field-level actuators, positioners, and intelligent motor control centers.

From a procurement and lifecycle management perspective, the 6GK1561-2AA00 represents a high-value spare part for any facility running SIMATIC-based PROFIBUS networks. As Siemens transitions its portfolio toward PROFINET and Industrial Ethernet, maintaining a verified stock of CP 5612 A2 modules ensures that existing PROFIBUS installations can be sustained without forced migration. TOPNLMS maintains tested inventory of this module, with each unit undergoing functional verification prior to dispatch. Orders are processed within one business day, and global express shipping is available to minimize plant downtime during emergency replacement scenarios.

Rugged Specifications Table

Comprehensive Protection Solutions

The 6GK1561-2AA00 does not operate in isolation — it is the communication nerve center of a broader protection and control ecosystem. In a fully integrated SIMATIC control cabinet, it works alongside the SIMATIC S7-400H high-availability CPU to ensure that PROFIBUS DP communication continues uninterrupted even during a CPU switchover event. The CP’s MPI port provides a direct programming interface for STEP 7 engineers performing online diagnostics without interrupting the live PROFIBUS DP network.

On the power side, SITOP PSU8600 modular power supplies provide the stable 24 VDC rail that the host industrial PC and the CP 5612 A2 depend on, with built-in buffer modules extending ride-through time during brief mains interruptions — a common occurrence in mining and cement plant environments. For distributed I/O, ET 200M racks populated with SM 321 digital input modules and SM 322 digital output modules connect to the 6GK1561-2AA00 as DP slaves, delivering process signals from field sensors and actuators back to the SCADA layer with sub-millisecond cycle times.

Variable-speed drives such as the SINAMICS G120C are integrated into the PROFIBUS segment via their onboard DP interface, allowing the CP to pass speed setpoints and read back actual torque and fault status — eliminating the need for separate analog wiring and reducing cabinet complexity. SIRIUS 3RK3 safety relays and 3SK1 safety modules on the same PROFIBUS segment provide emergency-stop and light-curtain monitoring, with PROFIsafe telegrams routed through the CP to the F-CPU for safety evaluation. SCALANCE X208 industrial Ethernet switches are often installed in the same cabinet to bridge the PROFIBUS segment to the plant’s PROFINET backbone, with the CP 5612 A2 serving as the DP-side termination point of this hybrid network architecture.

Application in Critical Infrastructure

In oil and gas upstream facilities, the 6GK1561-2AA00 is deployed in wellhead control panels and compressor station RTUs where PROFIBUS DP connects pressure transmitters, solenoid valve positioners, and motor protection relays to the central SCADA system. The module’s wide storage temperature range and vibration tolerance make it suitable for installation in outdoor equipment shelters subject to desert heat cycles or arctic freeze-thaw conditions.

In coal-fired and combined-cycle power plants, the CP 5612 A2 serves as the communication interface between the DCS operator workstation and turbine governor I/O racks, where deterministic DP cycle times are mandatory for load-following control. Any communication latency or packet loss at this layer can result in turbine trip events with significant generation loss and restart costs. The 6GK1561-2AA00’s proven reliability in this application has made it a standard spare part specification at numerous utility operators across Asia and Europe.

In municipal water treatment and wastewater facilities, the module connects SCADA workstations to PROFIBUS DP networks spanning pump stations, chemical dosing skids, and UV disinfection systems. Its compatibility with legacy S7-300 PLCs — still widely deployed in water infrastructure built in the 2000s — means that facilities can extend the operational life of their control systems without capital-intensive PLC replacement programs. Mining operations running continuous haulage, crushing, and flotation circuits similarly rely on the CP 5612 A2 to maintain communication between the control room and distributed drive panels, where SINAMICS drives and SIRIUS motor starters report status and receive commands over PROFIBUS DP.
