Siemens 6GK1543-1AA00 CP 543-1 Replacement for S7-400

Product Overview

Siemens 6GK1543-1AA00 CP 543-1 Replacement for S7-400: Smooth Migration & Legacy System Upgrade

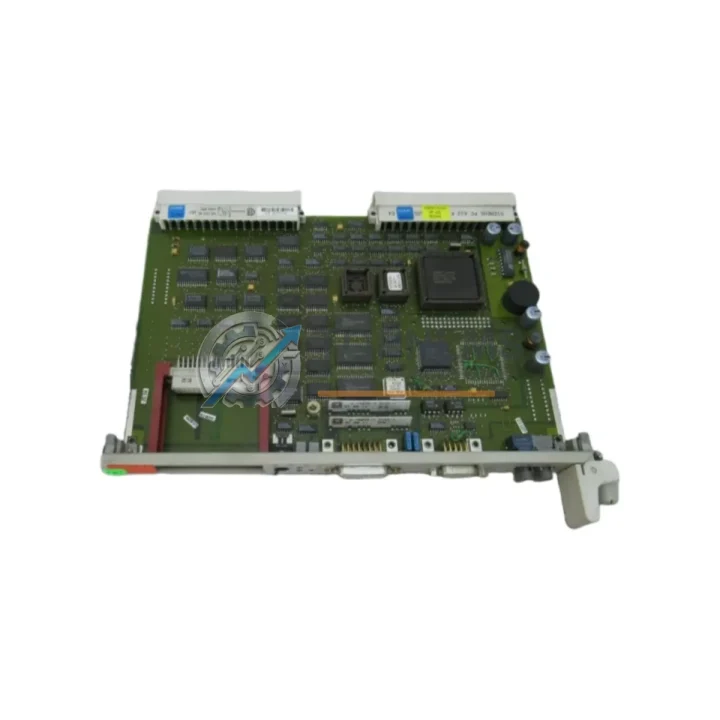

The Siemens 6GK1543-1AA00 CP 543-1 is an Ethernet Communications Processor designed for the SIMATIC S7-400 programmable logic controller platform. As industrial facilities worldwide accelerate their migration away from aging SIMATIC S7-400 control architectures, the CP 543-1 remains a critical bridge component — enabling plants to extend the operational life of existing S7-400 racks while simultaneously preparing for a structured transition to modern SIMATIC S7-1500 or TIA Portal-based systems.

Whether your facility is replacing a failed or end-of-life CP 543-1, consolidating spare parts inventory, or executing a phased control system modernization, this module delivers the Ethernet connectivity, ISO transport, and TCP/IP communication capabilities your S7-400 system depends on. Sourced directly and inspected prior to shipment, each unit is backed by a 12-month warranty and is ready to ship from our Xiamen warehouse.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful CP 543-1 replacement or S7-400 network modernization rarely involves a single module in isolation. In practice, field engineers replacing the 6GK1543-1AA00 frequently encounter adjacent components that require simultaneous attention or coordinated upgrade planning.

On the power supply side, the S7-400 rack’s PS 407 10A or PS 405 4A power supply modules must be verified for adequate load capacity when adding or replacing communication processors. If the existing power supply is aging or undersized, a concurrent replacement ensures system stability post-migration. Similarly, the CPU 414-3 PN/DP or CPU 416-3 PN/DP — common S7-400 central processing units found alongside the CP 543-1 — should be checked for firmware compatibility with the replacement CP module, particularly when the project is being migrated from STEP 7 Classic to TIA Portal.

On the network side, the CP 543-1 connects to plant Ethernet infrastructure via standard RJ45 cabling. If the facility is simultaneously upgrading its industrial Ethernet switches — for example, replacing legacy unmanaged switches with SCALANCE X208 or SCALANCE XC208 managed switches — the CP 543-1’s 10/100 Mbit/s auto-negotiation interface integrates without issue. For plants running PROFIBUS DP alongside Ethernet, the CP 342-5 or CP 443-5 Extended communications processors handle the PROFIBUS side of the S7-400 rack, and their configuration is independent of the Ethernet CP replacement.

In distributed I/O architectures, ET 200M remote I/O stations connected via PROFIBUS DP to the S7-400 CPU are unaffected by the Ethernet CP swap, since the CP 543-1 handles only the Ethernet communication layer. However, if the migration scope includes transitioning remote I/O from PROFIBUS to PROFINET, ET 200SP or ET 200MP stations with IM 155-6 PN interface modules become relevant upgrade targets in the same project phase.

For facilities using SIMATIC WinCC or WinCC flexible SCADA systems communicating with the S7-400 via the CP 543-1’s S7 communication or FETCH/WRITE services, the replacement module maintains full protocol compatibility, ensuring that HMI screens, alarm configurations, and data acquisition tags continue to function without modification. If the HMI hardware itself is being refreshed — for example, replacing a TP 177B or MP 277 panel with a modern SIMATIC HMI TP1200 Comfort — the new panel’s Ethernet interface connects directly to the plant network and communicates with the S7-400 CPU through the same CP 543-1 Ethernet path.

Programming cable access during commissioning is typically handled via the MPI/DP port on the S7-400 CPU rather than through the CP 543-1, so a PC Adapter USB A2 or SIMATIC NET CP 5711 USB adapter is recommended to have on-site during the replacement and re-commissioning procedure.

Retrofit Guidance FAQ

Q: Does replacing the 6GK1543-1AA00 require re-wiring the Ethernet connection?
A: No. The CP 543-1 uses a standard RJ45 Ethernet connector. The existing patch cable connects directly to the replacement module without modification. Verify cable category (Cat5e or higher recommended) and switch port configuration.

Q: Can I reuse my existing STEP 7 project configuration?
A: Yes. The hardware configuration in your STEP 7 project references the CP 543-1 module by order number. After physical replacement, download the existing HW Config to the CPU. If the replacement module has a different firmware version, verify compatibility in the STEP 7 hardware catalog before downloading.

Q: Will the replacement affect communication with my SCADA or HMI system?
A: No, provided the IP address and communication parameters are restored from the original project. The CP 543-1 supports S7 Communication, FETCH/WRITE, ISO Transport, and TCP/IP — all standard protocols used by WinCC, WinCC flexible, and third-party SCADA systems.

Q: Is the CP 543-1 compatible with TIA Portal?
A: Yes. The 6GK1543-1AA00 is supported in TIA Portal V13 and later versions. If you are migrating your S7-400 project from STEP 7 Classic to TIA Portal, the CP 543-1 configuration is migrated using the TIA Portal migration tool.

Q: How much physical space does the module require in the S7-400 rack?
A: The CP 543-1 occupies one slot in the S7-400 central rack (UR1/UR2) or expansion rack (ER1/ER2). No additional mounting hardware or DIN rail space is required beyond the standard S7-400 slot.

Q: What is the recommended procedure for replacing a failed CP 543-1 to minimize downtime?
A: (1) Back up the current STEP 7 or TIA Portal project. (2) Power down the S7-400 rack or use hot-swap procedures if supported by your rack configuration. (3) Remove the failed module and insert the replacement. (4) Power up and download the hardware configuration. (5) Verify Ethernet connectivity and communication with SCADA/HMI. Total procedure typically takes 30–90 minutes for experienced engineers.

Q: Does the replacement module support PROFINET?
A: The 6GK1543-1AA00 CP 543-1 supports standard Ethernet protocols including TCP/IP, ISO Transport, UDP, S7 Communication, and FETCH/WRITE. For PROFINET IO controller or device functionality on the S7-400 platform, the CP 443-1 Advanced (6GK7443-1GX20) is the appropriate module. Confirm your protocol requirements before ordering.

Warranty Assurance

Every Siemens 6GK1543-1AA00 CP 543-1 shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Our pre-shipment inspection process includes functional verification of the module’s Ethernet interface, backplane connector integrity, and firmware version confirmation. Units that do not pass inspection are not shipped.

In the event of a DOA (Dead on Arrival) or warranty claim within the coverage period, TOPNLMS provides a replacement unit or full refund, subject to return inspection. Our after-sales response target is within 24 hours on business days. Replacement units are dispatched from our Xiamen warehouse, with express shipping options available to minimize your facility’s downtime.

For procurement teams requiring documentation, we can provide inspection reports, packing lists, and commercial invoices upon request. Bulk orders and standing purchase agreements for MRO (Maintenance, Repair & Operations) inventory are supported — contact our sales team to discuss lead times, pricing, and consignment stock arrangements.

We understand that unplanned downtime in industrial control environments carries significant operational and financial consequences. Our inventory, testing, and logistics processes are structured to support emergency replacement scenarios with the shortest possible fulfillment cycle.
