Siemens 6GK1503-3CB00 Replacement for PROFIBUS OLM/G12

Product Overview

Siemens 6GK1503-3CB00 Replacement for PROFIBUS OLM/G12: Smooth Transition & Legacy System Compatibility

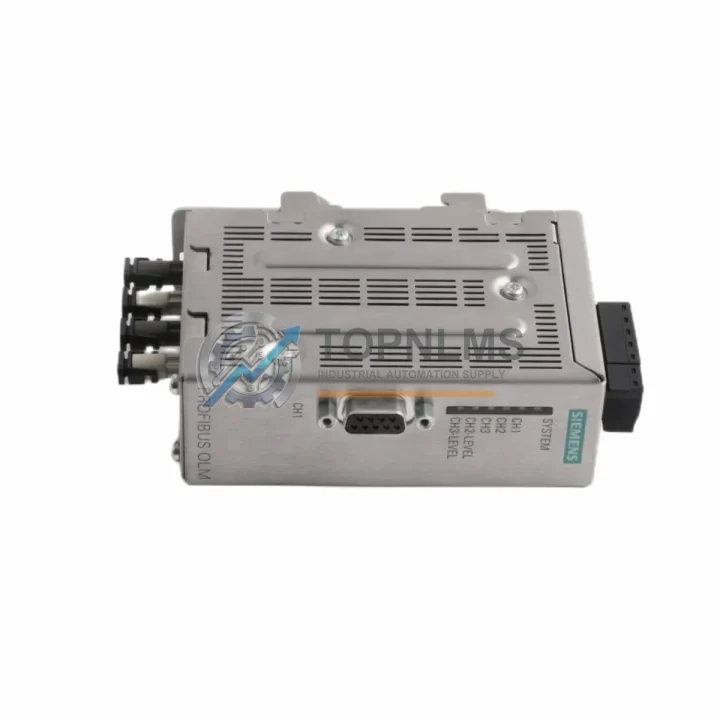

The Siemens 6GK1503-3CB00 is the PROFIBUS OLM/G12 V4.0 Optical Link Module — a critical network infrastructure component within the SIMATIC NET PROFIBUS family. As industrial facilities phase out aging PROFIBUS DP networks or migrate from earlier OLM generations such as the 6GK1503-2CB00 (OLM/G12 V1.0) and 6GK1503-3CA00 (OLM/G11 V4.0), the 6GK1503-3CB00 serves as the direct, pin-compatible upgrade path that preserves existing fiber optic cabling infrastructure, RS-485 segment wiring, and PROFIBUS DP protocol topology without requiring a full network redesign.

For plants running legacy SIMATIC S5 or early SIMATIC S7-300 controllers — including CPU 315-2 DP, CPU 317-2 DP, and CP 342-5 communication processors — the OLM/G12 V4.0 integrates seamlessly into existing DP master/slave architectures. Its dual fiber optic ports (ST connector, 820 nm multimode) and one RS-485 electrical port allow engineers to bridge optical ring or line topologies with copper-segment field devices, eliminating the need to re-terminate field wiring or reprogram DP address assignments during the upgrade.

When migrating from older PROFIBUS OLM/P12 (plastic fiber) variants or transitioning a mixed-media network to a full glass-fiber backbone, the 6GK1503-3CB00 supports optical bus and ring redundancy modes configurable via DIP switch — a feature absent in earlier V1.0 hardware. This makes it particularly valuable in continuous-process environments such as chemical plants, water treatment facilities, and power generation stations where network redundancy directly impacts uptime.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful PROFIBUS network migration rarely involves a single component swap. When replacing the 6GK1503-3CB00 or upgrading an aging OLM segment, the surrounding system infrastructure must be evaluated in parallel to ensure end-to-end communication integrity.

On the controller side, plants running SIMATIC S7-300 CPUs with integrated DP interfaces — such as the CPU 315-2 DP or CPU 317-2 DP — can retain their existing DP master configuration in STEP 7 or TIA Portal without modification, as the OLM/G12 V4.0 is transparent to the PROFIBUS protocol layer. For S7-400 systems using a CP 443-5 Extended communication processor, the same applies: no GSD file changes or hardware configuration updates are required in the PLC project.

At the field device level, PROFIBUS DP slaves such as Siemens ET 200M distributed I/O stations (connected via IM 153-2 interface modules) and ET 200S islands remain fully compatible. Their existing PROFIBUS addresses, I/O byte assignments, and diagnostic configurations are preserved across the OLM swap. Similarly, Siemens SINAMICS G120 and MICROMASTER 440 variable frequency drives connected to the PROFIBUS segment via CBP2 communication boards continue to operate without parameter changes.

For the optical infrastructure, engineers should verify that existing 62.5/125 µm or 50/125 µm multimode fiber patch cables and ST-to-ST duplex jumpers meet the OLM/G12 V4.0’s optical budget requirements. In installations where the fiber plant predates the current network, a fiber optic power meter test is recommended before commissioning. If the control cabinet houses a SIMATIC NET OSM (Optical Switch Module) or ESM (Electrical Switch Module) for Ethernet backbone connectivity alongside the PROFIBUS OLM, ensure that the 24 V DC power supply rail — typically a SITOP PSU100S or equivalent — is rated for the combined load of all active modules.

When the migration scope extends to replacing a PROFIBUS RS-485 repeater (such as the 6ES7972-0AA02-0XA0) that previously bridged two copper DP segments, the OLM/G12 V4.0 can assume this role while simultaneously converting the inter-segment link to fiber — reducing susceptibility to EMI in high-noise environments such as motor control centers or arc furnace control rooms. A PROFIBUS bus terminal connector (6ES7972-0BA52-0XA0, 90° or 35° cable exit) at each RS-485 port ensures correct bus termination and signal integrity at the electrical segment endpoints.

Retrofit Guidance FAQ

Q: Can I replace a 6GK1503-2CB00 (OLM/G12 V1.0) with the 6GK1503-3CB00 without rewiring?
A: Yes. The V4.0 module uses the same DB9 RS-485 connector pinout and identical ST fiber optic port positions. Existing fiber patch cables and copper PROFIBUS connectors can be transferred directly. Only the DIP switch settings need to be verified and configured for the desired topology (bus or ring mode).

Q: Does the OLM/G12 V4.0 require any changes to the STEP 7 or TIA Portal hardware configuration?
A: No. The OLM is a transparent repeater/converter at the physical layer. It does not appear as a node in the PROFIBUS DP configuration and requires no GSD file, no DP address, and no software changes. The PLC project remains unchanged.

Q: What fiber type is compatible with the 6GK1503-3CB00?
A: The module uses 820 nm LED optics optimized for 62.5/125 µm multimode glass fiber. It is also compatible with 50/125 µm multimode fiber with slightly reduced maximum segment length. Plastic optical fiber (POF) is not supported — use the OLM/P12 series for POF applications.

Q: How is ring redundancy configured?
A: Ring redundancy is enabled via DIP switch S1 on the module. In a ring topology, two OLM/G12 V4.0 units are designated as redundancy managers (one primary, one backup) while the remaining units in the ring operate in standard mode. Switchover time upon fiber break is typically < 1 ms, ensuring no DP cycle is lost in most applications.

Q: What is the maximum PROFIBUS segment length in optical mode?
A: With 62.5/125 µm multimode fiber, the maximum optical segment length between two OLM/G12 units is 3,000 m at all baud rates up to 12 Mbit/s. This is independent of baud rate — a key advantage over RS-485 copper segments, where maximum length decreases as baud rate increases.

Q: Can the module operate in a mixed copper/fiber topology?
A: Yes. Each OLM/G12 V4.0 bridges one RS-485 electrical segment with up to two fiber optic segments, making it ideal for hybrid networks where some field devices remain on copper while the backbone runs on fiber.

Warranty Assurance

Every 6GK1503-3CB00 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each module undergoes a functional outgoing inspection that verifies power-up behavior, LED status indication, and optical port continuity. Units are packed in anti-static ESD-safe packaging with foam cushioning to prevent transit damage.

In the event of a confirmed hardware defect within the warranty period, TOPNLMS provides a replacement unit or full refund — your choice. Our after-sales response target is within 24 business hours of a warranty claim submission. We maintain buffer stock of high-demand SIMATIC NET components to minimize replacement lead times.

For time-critical plant shutdowns or emergency maintenance windows, expedited shipping options (DHL Express, FedEx International Priority) are available from our Xiamen warehouse to most global destinations within 3–5 business days. All export documentation, including commercial invoice, packing list, and certificate of origin, is prepared in compliance with international trade requirements.

TOPNLMS specializes in sourcing, testing, and supplying discontinued and current-production Siemens SIMATIC NET, SIMATIC S7, and SIMATIC S5 components to industrial end-users, system integrators, and MRO procurement teams worldwide. Our technical team is available to assist with compatibility verification, cross-reference confirmation, and retrofit planning before purchase.
