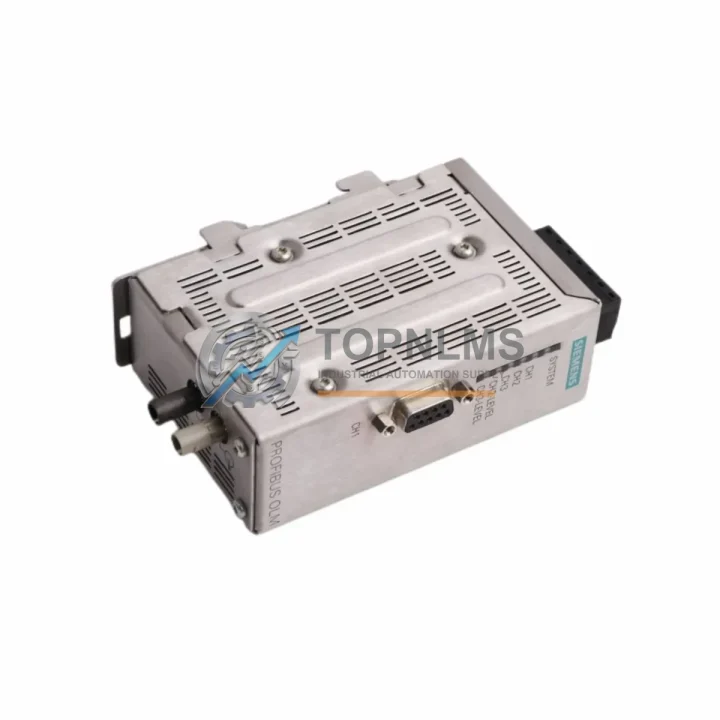

Siemens 6GK1503-2CC00 Ruggedized Optical Link Module

Product Overview

Siemens 6GK1503-2CC00 Ruggedized Optical Link Module: Industrial Resilience for Harsh Environments

The Siemens 6GK1503-2CC00 is a PROFIBUS Optical Link Module (OLM/G12) engineered for continuous, fault-tolerant operation in the most demanding industrial environments. Designed as part of Siemens’ SINEC L2 optical networking family, this module converts electrical PROFIBUS RS-485 signals to multimode fiber-optic transmission, eliminating susceptibility to electromagnetic interference (EMI), ground loops, and voltage transients that routinely disrupt copper-based fieldbus networks in heavy industry.

In environments where high-frequency drives, large motor starters, arc furnaces, and high-voltage switchgear generate intense electromagnetic fields, the 6GK1503-2CC00 maintains deterministic PROFIBUS DP communication without signal degradation. Its fiber-optic backbone provides galvanic isolation between network segments, protecting connected PLCs, remote I/O stations, and field devices from destructive ground potential differences — a critical requirement in steel mills, petrochemical plants, and mining operations where equipment grounding is inherently complex.

Rugged Specifications Table

Comprehensive Protection Solutions

The 6GK1503-2CC00 is most effective when deployed as part of a fully integrated, hardened control architecture. In a typical heavy-industry control cabinet, this OLM module sits at the heart of the PROFIBUS segment, bridging the Siemens S7-400 CPU 414-3 PN/DP or S7-300 CPU 315-2 DP to remote field devices via fiber, while the copper RS-485 stubs remain short and well-shielded within the cabinet enclosure.

On the distributed I/O side, Siemens ET 200M and ET 200S remote I/O stations connect seamlessly over the fiber PROFIBUS backbone established by the 6GK1503-2CC00, allowing digital and analog I/O modules to operate reliably even when installed hundreds of meters away in dusty, high-vibration junction boxes. For drive control, SINAMICS G120 and SINAMICS S120 variable frequency drives equipped with PROFIBUS communication boards integrate directly into the same fiber ring, enabling coordinated motion control without the EMI coupling that plagues copper networks near high-power inverters.

Power supply integrity is equally critical. Industrial-grade Siemens SITOP PSU8200 24 V DC power supplies provide the stable, low-ripple supply voltage the OLM requires, while Siemens 3RT2 series contactors and 3RV2 motor protection circuit breakers in the same panel are coordinated through the PROFIBUS network the 6GK1503-2CC00 supports. For safety-critical applications, Siemens SIRIUS 3SK1 safety relay modules and ET 200SP F-modules (fail-safe I/O) can be integrated into the same PROFIBUS DP network segment, with the fiber link ensuring that safety signals are not corrupted by electrical noise from adjacent power circuits.

Network diagnostics and segment monitoring are handled through the Siemens PROFIBUS DP/PA Link IM 157 or via the integrated diagnostic LEDs on the 6GK1503-2CC00 itself, which provide real-time indication of fiber link status, signal quality, and segment faults — enabling maintenance teams to isolate faults rapidly without specialized test equipment. For installations requiring PROFIBUS-to-PROFINET migration, the Siemens IE/PB Link PN IO gateway can be added to the architecture, preserving the existing fiber PROFIBUS infrastructure while extending connectivity to Ethernet-based SCADA and MES systems.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the 6GK1503-2CC00 is deployed in wellhead control panels and pipeline SCADA systems where intrinsically safe barriers and explosion-proof enclosures are standard. The fiber-optic isolation it provides is essential in Zone 1 and Zone 2 classified areas, where any spark-generating electrical connection between network segments poses an unacceptable ignition risk. The module’s ability to extend PROFIBUS segments up to 3,000 m over multimode fiber allows a single PLC in a safe area control room to communicate with field instruments and actuators distributed across a large process unit without repeaters or additional power supplies.

In mining and mineral processing, the 6GK1503-2CC00 withstands the extreme vibration, coal dust ingress, and wide temperature swings characteristic of underground and open-pit operations. Conveyor drive systems, crusher controls, and ventilation fan PLCs all benefit from the galvanic isolation and extended reach the module provides, reducing unplanned downtime caused by network faults that would otherwise propagate across an entire production line.

In power generation and electrical utilities — including thermal, hydro, and wind installations — the module is used to isolate PROFIBUS segments crossing high-voltage boundaries, such as between a generator control unit and a substation automation system. The fiber link prevents high-voltage transients from propagating into the PLC backplane, protecting expensive CPU and I/O modules from damage during switching events or lightning strikes.

In water and wastewater treatment plants, where chemical dosing pumps, aeration blowers, and UV disinfection systems operate in high-humidity, corrosive atmospheres, the 6GK1503-2CC00 provides the long-distance, interference-immune communication backbone that keeps distributed SCADA systems running continuously. Its DIN-rail form factor fits standard IEC control panels used throughout the water industry, and its wide supply voltage tolerance (18–32 V DC) accommodates the voltage variations common in remote pumping stations powered by solar or generator backup.

In metallurgy and steel production, where arc furnaces and induction heaters generate some of the most severe EMI conditions in any industrial sector, the fiber-optic isolation of the 6GK1503-2CC00 is not merely beneficial — it is often the only viable solution for maintaining reliable PROFIBUS communication between the main PLC and process instruments located near the furnace. Rolling mill automation systems, ladle handling cranes, and continuous casting line controls all rely on this type of hardened optical link to maintain production continuity.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If a unit fails within the warranty period, TOPNLMS will arrange replacement or repair at no additional cost. Warranty claims are processed by contacting [email protected] with the order reference and a description of the fault. Units are inspected upon return, and replacements are dispatched within 3–5 business days of confirmation.

Q2: How is each 6GK1503-2CC00 unit tested before shipment?
Every unit undergoes functional verification prior to dispatch. Testing includes power-on self-test, fiber port optical power output measurement, RS-485 signal integrity check, and PROFIBUS communication loop test at multiple baud rates. Units that fail any test parameter are quarantined and not shipped. A test record is available upon request for quality-critical procurement processes.

Q3: Is the 6GK1503-2CC00 compatible with current Siemens TIA Portal and S7-1500 systems?
The 6GK1503-2CC00 is a PROFIBUS DP physical layer device and is fully compatible with any Siemens PLC that supports PROFIBUS DP, including S7-300, S7-400, and S7-1500 systems configured with PROFIBUS DP interfaces. It operates transparently at the physical layer and requires no software configuration — baud rate is auto-detected. It is equally compatible with third-party PROFIBUS masters from ABB, Schneider Electric, and Rockwell Automation.

Q4: Can TOPNLMS guarantee long-term supply and provide replacement support for discontinued or hard-to-source units?
Yes. TOPNLMS maintains dedicated stock of legacy and current-production Siemens PROFIBUS networking components, including OLM series modules, to support customers with long-lifecycle plant assets. For facilities that cannot afford unplanned downtime, we recommend holding at least one spare 6GK1503-2CC00 per critical PROFIBUS segment. Our team can advise on compatible alternative part numbers and cross-reference options if the exact SKU becomes unavailable from primary distribution channels. Contact [email protected] for volume pricing and long-term supply agreements.
