Siemens 6GK1503-2CB00 Replacement for PROFIBUS OLM/G11

Product Overview

Siemens 6GK1503-2CB00 Replacement for PROFIBUS OLM/G11: Seamless Transition & Legacy System Upgrade

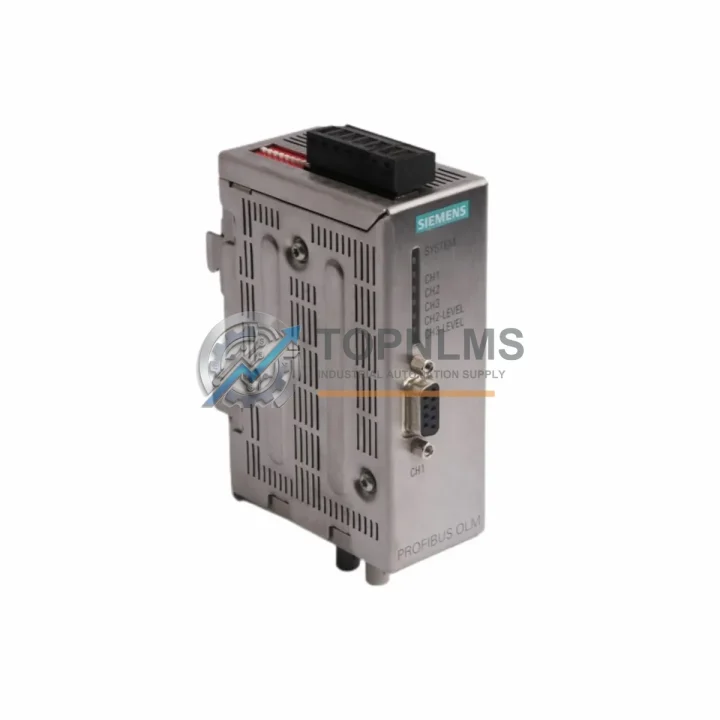

The Siemens 6GK1503-2CB00 is the PROFIBUS OLM/G11 V4.0 Optical Link Module designed for glass fiber-based PROFIBUS DP networks. As industrial facilities phase out aging PROFIBUS infrastructure or replace discontinued optical link modules, the 6GK1503-2CB00 serves as the direct drop-in replacement and upgrade path for earlier OLM generations including the OLM/G11 V1.0 and V3.0 variants. This module bridges legacy copper-based PROFIBUS segments with modern fiber-optic ring and line topologies, enabling a smooth migration without requiring full network redesign or PLC reprogramming.

Whether your facility is retiring a Siemens S5 or early S7-300 PROFIBUS network, upgrading from RS-485 copper segments to glass fiber for EMI immunity, or replacing a failed OLM unit to restore production, the 6GK1503-2CB00 delivers the physical layer reliability required for mission-critical control environments. Its compatibility with SIMATIC S7-300, S7-400, and ET 200 distributed I/O systems makes it a universal fit across a wide range of existing control architectures.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful PROFIBUS fiber migration involves more than swapping the optical link module. When upgrading from a legacy copper PROFIBUS segment to a glass fiber ring using the 6GK1503-2CB00, engineers typically also address the RS-485 bus termination at each segment end, replacing aging PROFIBUS connectors such as the 6ES7972-0BA52-0XA0 with active termination plugs to eliminate signal reflection issues that become more pronounced at higher baud rates.

For systems where the PROFIBUS master is a SIMATIC S7-300 CPU with an integrated DP port — such as the CPU 315-2 DP (6ES7315-2AH14-0AB0) — the 6GK1503-2CB00 connects directly to the onboard DP interface via the Sub-D 9-pin port, requiring no additional CP module. In larger S7-400 installations using a CP 443-5 Extended (6GK7443-5DX05-0XE0) as the PROFIBUS master, the OLM/G11 V4.0 integrates without any GSD file changes, as the optical segment is transparent to the DP master.

Where the legacy network includes ET 200M distributed I/O stations connected via IM 153-2 interface modules, the fiber upgrade path is straightforward: the 6GK1503-2CB00 is installed at each ET 200M cabinet, converting the fiber signal back to RS-485 for the IM 153-2’s local bus. This eliminates the need to replace the I/O racks or rewire field terminals. Similarly, ET 200S stations using IM 151-1 interface modules benefit from the same approach, preserving existing I/O wiring and module configurations.

In facilities running SIMATIC WinCC SCADA systems, the fiber ring topology enabled by the 6GK1503-2CB00 provides redundancy that significantly reduces the risk of a single cable fault causing a full network outage — a critical improvement over legacy line topologies. The OLM/G11 V4.0 supports automatic ring reconfiguration in under 15 ms, maintaining SCADA communication continuity during fiber path failures.

For sites that also need to integrate PROFIBUS PA field instruments — such as pressure transmitters or flow meters on a PA segment — a PROFIBUS DP/PA coupler or link device is typically installed alongside the OLM. The 6GK1503-2CB00 handles the DP backbone fiber segment, while the DP/PA coupler manages the intrinsically safe PA spur. Power supply modules rated for 24 V DC with sufficient current capacity (typically 5 A or 10 A DIN rail PSUs) should be verified to support the additional OLM load, particularly in cabinets where multiple OLM units are installed for multi-segment ring configurations.

Programming cable compatibility is not affected by this upgrade. STEP 7 and TIA Portal projects referencing the PROFIBUS DP network topology require no modification — the OLM operates transparently at the physical layer. Engineers using a PC Adapter USB (6ES7972-0CB20-0XA0) or CP 5611 card for online diagnostics will find that network access and slave diagnostics function identically after the fiber migration.

Retrofit Guidance FAQ

Q: Can I replace an OLM/G11 V1.0 or V3.0 with the 6GK1503-2CB00 without changing the fiber cables?
A: Yes. The V4.0 uses the same ST fiber connectors and 62.5/125 µm multimode glass fiber specification as earlier OLM/G11 versions. Existing fiber patch cables and installed fiber runs are fully reusable.

Q: Do I need to modify my STEP 7 or TIA Portal project after replacing the OLM?
A: No. The OLM/G11 V4.0 is transparent to the PROFIBUS DP master. No GSD file changes, hardware configuration updates, or program modifications are required. The DP master sees the same slave addresses and network parameters as before.

Q: Is the 24 V DC power wiring compatible with the previous OLM version?
A: Yes. The power supply connector and 24 V DC input specification are identical. The existing power wiring can be reconnected directly without modification.

Q: Can the 6GK1503-2CB00 be used in a redundant ring topology to replace a line configuration?
A: Yes. The V4.0 supports both line and redundant ring topologies. Upgrading from a line to a ring requires adding a second fiber connection between the first and last OLM in the segment, with no changes to the DP master configuration.

Q: What is the maximum fiber segment length supported?
A: Up to 3,000 m per glass fiber segment between two OLM/G11 units using 62.5/125 µm multimode fiber, depending on fiber quality and connector losses.

Q: How is the baud rate configured on the 6GK1503-2CB00?
A: Baud rate is set via DIP switches on the module. The V4.0 supports the same baud rate settings as previous versions (9.6 kbit/s to 12 Mbit/s), so the existing DIP switch configuration from the replaced unit can be replicated directly.

Q: Is the physical installation footprint the same as the previous OLM?
A: Yes. The 6GK1503-2CB00 mounts on a standard 35 mm DIN rail with the same physical dimensions as earlier OLM/G11 versions. No cabinet modifications or additional mounting hardware are required.

Warranty Assurance

Every 6GK1503-2CB00 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each module undergoes functional verification including power-on testing, optical port continuity checks, and RS-485 interface validation to confirm the unit meets Siemens OLM/G11 V4.0 specifications.

In the event of a confirmed defect within the warranty period, TOPNLMS provides a replacement unit or full refund, with priority processing to minimize your production downtime. Our technical support team is available to assist with installation questions, compatibility verification, and commissioning guidance before and after purchase.

Stock is maintained in Xiamen, China, with standard dispatch within 1–3 business days. Express international shipping options are available for urgent replacement requirements. All units are shipped with appropriate ESD-protective packaging and documentation.

For volume procurement, OEM supply agreements, or multi-site retrofit projects, please contact our sales team directly to discuss lead times, pricing, and technical support arrangements.
