Siemens 6GK1502-2CB10 Original Industrial Spare OLM/G11

Product Overview

Siemens 6GK1502-2CB10 Original Industrial Spare OLM/G11 — System Stability & Maintenance Value

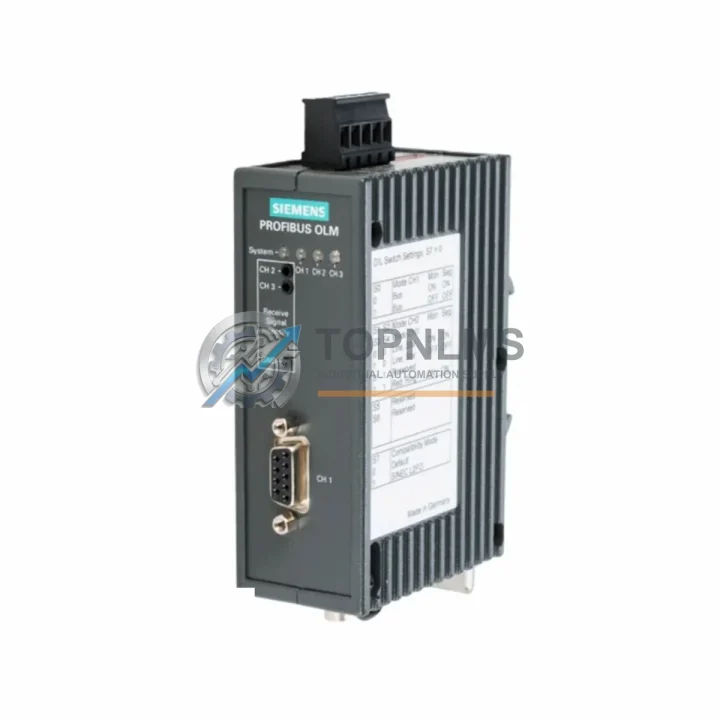

The Siemens 6GK1502-2CB10 is a PROFIBUS Optical Link Module (OLM/G11 V3.1) designed for high-reliability industrial communication networks. As a genuine original spare part, it plays a critical role in maintaining the integrity of PROFIBUS DP optical ring and line topologies across manufacturing plants, process automation facilities, and utility control systems. Whether you are managing a scheduled maintenance window, responding to an unplanned network fault, or building a strategic spare parts inventory, the 6GK1502-2CB10 is an essential component to keep your SIMATIC S7 and SINEC network infrastructure running without interruption.

In modern industrial environments, PROFIBUS optical link modules serve as the backbone of deterministic, noise-immune communication between PLCs, distributed I/O stations, drives, and HMI panels. The 6GK1502-2CB10 supports glass fiber optic connections, providing galvanic isolation and immunity to electromagnetic interference — a critical advantage in high-voltage switchgear rooms, motor control centers, and heavy-process environments where copper-based PROFIBUS segments are vulnerable to signal degradation.

Facilities running SIMATIC S7-300, S7-400, or legacy S5 systems with PROFIBUS DP backbones frequently rely on OLM modules to bridge copper and fiber segments. When an OLM fails, the entire PROFIBUS ring or line segment can drop, causing cascading faults across connected ET 200M remote I/O stations, SINAMICS drive systems, and field devices. Stocking a verified original 6GK1502-2CB10 as a ready-to-deploy spare eliminates the risk of extended downtime caused by procurement delays.

Critical Technical Specs Table

Preventive Maintenance Strategy

A proactive maintenance approach for PROFIBUS optical networks requires more than simply replacing a failed OLM. During any scheduled inspection or corrective maintenance event involving the 6GK1502-2CB10, experienced maintenance engineers typically audit the entire communication segment to prevent secondary failures.

The PROFIBUS RS-485 copper segment connected to the OLM’s Sub-D port should be inspected alongside the module. Degraded PROFIBUS connectors — particularly the Siemens 6ES7972-0BA52-0XA0 bus connector with integrated termination resistor — are a common source of intermittent communication faults that are often misdiagnosed as OLM failures. Replacing the bus connector at the same time as the OLM eliminates this ambiguity.

The 24 V DC power supply feeding the OLM rail should also be verified. Siemens SITOP PSU100S 24 V power supply modules are widely used in the same control cabinet and should be load-tested during the maintenance window. A marginal power supply operating near its rated current can cause OLM resets under transient load conditions, mimicking fiber link faults.

For facilities running ET 200M distributed I/O stations on the same PROFIBUS segment, the IM 153-2 interface module should be inspected for firmware version compatibility and connector integrity. A failed or outdated IM 153-2 can cause the PROFIBUS master to report bus faults that are incorrectly attributed to the OLM.

In ring topology configurations, the redundancy manager function of the OLM network must be verified after any module replacement. If the network includes a Siemens CP 342-5 PROFIBUS communication processor on an S7-300 CPU rack, the CP’s diagnostic buffer should be cleared and monitored for 24 hours post-replacement to confirm stable ring operation.

Fiber optic patch cables connecting OLM modules — typically ST-to-ST multimode jumpers — should be cleaned and inspected for end-face contamination using a fiber inspection scope. Contaminated fiber connectors are the leading cause of optical power budget failures in OLM networks and should be replaced as a standard part of any OLM maintenance procedure.

For plants with SINAMICS G120 or S120 drive systems connected via PROFIBUS, the CBE20 or CB20 PROFIBUS option boards within the drives should be checked for communication timeout errors in the drive fault history. These errors often appear when OLM signal quality degrades before a complete module failure, providing early warning that an OLM replacement is imminent.

Finally, the SIMATIC S7-300 or S7-400 CPU’s PROFIBUS DP master diagnostic data — accessible via STEP 7 or TIA Portal — should be reviewed to confirm that all slave addresses are responding correctly after the 6GK1502-2CB10 replacement. Documenting the pre- and post-replacement diagnostic snapshots provides a clear maintenance record and supports future troubleshooting.

Strategic Replacement Solutions

The 6GK1502-2CB10 is a direct replacement for earlier OLM/G11 variants used in PROFIBUS optical networks built during the late 1990s and 2000s. Many facilities operating legacy SIMATIC S7-300 or S7-400 systems have OLM modules that have been in continuous service for 15–20 years. While Siemens OLM modules are known for long service life, optical transceivers and internal power regulation components degrade over time, increasing the risk of intermittent faults and unplanned outages.

Replacing aging OLM/G11 modules with verified original 6GK1502-2CB10 units before failure — rather than waiting for a fault — is the most cost-effective strategy for maintaining PROFIBUS network availability. A single unplanned production stoppage caused by a failed OLM typically costs far more than a planned replacement during a scheduled maintenance window.

For facilities transitioning from older OLM/G11 V1.x or V2.x hardware to V3.1, the 6GK1502-2CB10 is backward compatible with existing fiber cabling and PROFIBUS segment configurations. No changes to the PROFIBUS master configuration or slave address assignments are required, making the replacement a straightforward swap that can be completed within a single maintenance shift.

Plants considering a longer-term migration from PROFIBUS to PROFINET should note that the 6GK1502-2CB10 can continue to serve as a reliable bridge component during a phased migration, maintaining legacy PROFIBUS segments while new PROFINET infrastructure is commissioned in parallel.
