Siemens 6GK1500-0AA10 Original Industrial Spare SIMATIC NET Compatible: Sustaining System Stability in Critical Automation Environments

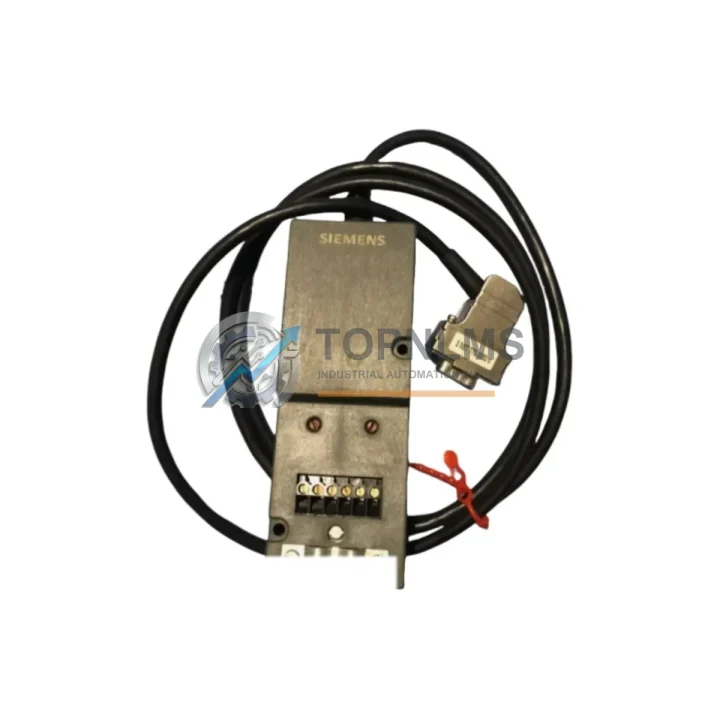

The Siemens 6GK1500-0AA10 PROFIBUS DP Bus Connector is a precision-engineered field device connector designed for SIMATIC NET communication networks. In industrial environments where PROFIBUS DP remains the backbone of distributed I/O communication — connecting PLCs, drives, remote I/O stations, and field instruments — the integrity of every bus connector directly determines network uptime. A single degraded or failed connector can introduce signal reflections, communication timeouts, and ultimately unplanned production stoppages. Stocking the 6GK1500-0AA10 as a verified original spare is a foundational element of any responsible preventive maintenance program for Siemens SIMATIC-based control systems.

This connector features a 90° cable exit angle, integrated terminating resistor network, and robust screw-terminal cable connection, making it suitable for both new installations and direct field replacement of aging connectors in existing PROFIBUS segments. Its compact form factor is compatible with the full range of SIMATIC NET PROFIBUS DP devices, including S7-300, S7-400, ET 200M, ET 200S, and ET 200SP distributed I/O systems, as well as SINAMICS and MICROMASTER drive series that rely on PROFIBUS for parameter control and status feedback.

Critical Technical Specs

Preventive Maintenance Strategy

PROFIBUS DP network reliability depends on more than just the bus connector itself. During scheduled maintenance windows or unplanned downtime events, experienced maintenance engineers treat a connector replacement as an opportunity to audit the entire PROFIBUS segment. When replacing a 6GK1500-0AA10, it is best practice to simultaneously inspect the PROFIBUS cable (6XV1830-0EH10 or equivalent shielded twisted-pair) for insulation damage, shield continuity, and correct impedance termination at both segment ends.

The CP 342-5 or CP 443-5 PROFIBUS communication processor modules installed in the S7-300 or S7-400 rack should be checked for firmware currency and diagnostic error logs. If the control cabinet houses a SINAMICS G120 or S120 drive communicating over PROFIBUS, the drive’s Control Unit — such as the CU240E-2 DP or CU320-2 DP — should be verified for correct slave address configuration and bus parameter alignment after any connector swap.

For distributed I/O architectures using ET 200M or ET 200S stations, this is also the right moment to inspect the IM 153-2 or IM 151-3 interface modules for status LED anomalies and to verify that all SM 321 digital input modules and SM 322 digital output modules are responding correctly on the PROFIBUS segment. Signal isolators or repeaters such as the 6ES7972-0AA02-0XA0 PROFIBUS repeater should be checked if the segment exceeds recommended cable length or node count.

Power supply integrity is equally critical: the SITOP PSU100S or equivalent 24 VDC rail power supply feeding the ET 200 stations and field devices should be load-tested and its output voltage verified under full load. Loose terminal connections on the 24 VDC distribution rail — including Phoenix Contact or Weidmüller terminal blocks — are a common hidden cause of intermittent PROFIBUS communication faults that are often misdiagnosed as connector or cable issues.

Finally, if the control system includes an HMI panel such as a SIMATIC TP700 Comfort or OP 177B connected to the same PROFIBUS segment, verify that the HMI’s PROFIBUS address is unique and that its communication parameters match the master configuration in STEP 7 or TIA Portal. A comprehensive spare parts kit for a PROFIBUS-based control cabinet should include at minimum: bus connectors (6GK1500-0AA10), PROFIBUS cable, a spare CP module, a PROFIBUS repeater, and a replacement interface module for the ET 200 station — ensuring that any single-point failure can be resolved within one maintenance shift.

Strategic Replacement Solutions

The 6GK1500-0AA10 is a direct replacement for older PROFIBUS connector variants used in legacy S5 migration projects and early S7-300 installations from the 1990s and 2000s. Many plants operating continuous process lines — chemical, pharmaceutical, food and beverage, automotive assembly — still rely on PROFIBUS DP as their primary fieldbus, and the installed base of SIMATIC NET connectors in these facilities numbers in the thousands. As original equipment ages, connector housings become brittle, screw terminals lose clamping force, and termination resistors drift out of specification, all of which degrade bus signal quality progressively before causing outright failure.

Proactive replacement of connectors at high-vibration nodes, outdoor junction boxes, or locations subject to thermal cycling is a proven strategy to extend the operational life of a PROFIBUS network without requiring a full fieldbus migration to PROFINET. The 6GK1500-0AA10 is pin-compatible and electrically equivalent to earlier connector revisions, allowing direct swap-out without reconfiguration of the PROFIBUS master or modification of the STEP 7 hardware configuration. This makes it the preferred choice for maintenance teams that need to minimize intervention time and return the system to production as quickly as possible.

For plants planning a phased migration from PROFIBUS to PROFINET, maintaining a stock of 6GK1500-0AA10 connectors ensures that the legacy PROFIBUS infrastructure remains stable and reliable throughout the transition period, protecting production continuity while the new PROFINET architecture is commissioned in parallel.
