Siemens 6GK1500-0AA00 Replacement for SIMATIC S5

Product Overview

Siemens 6GK1500-0AA00 Replacement for SIMATIC S5: Smooth Migration & Legacy System Upgrade

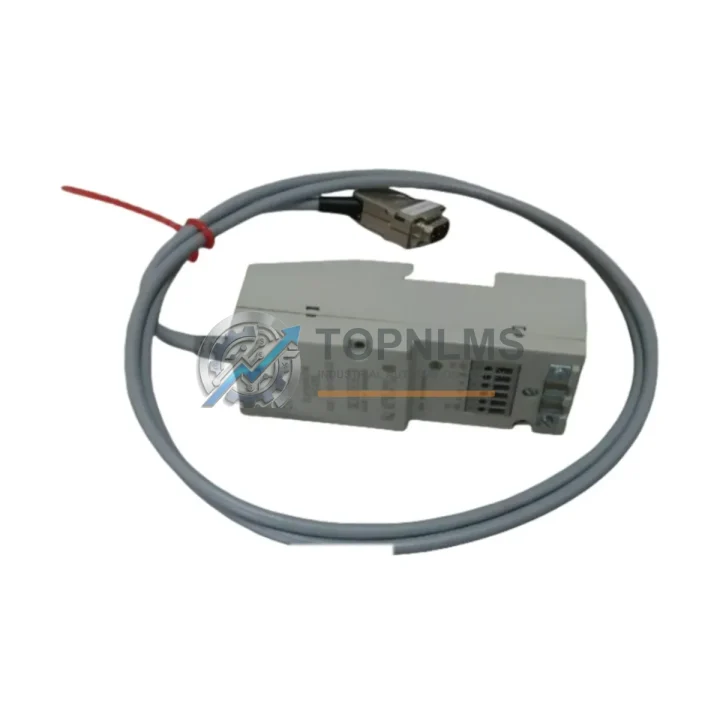

The Siemens 6GK1500-0AA00 is the CP 5431 FMS/DP PROFIBUS Communication Processor designed for the SIMATIC S5 series of programmable logic controllers. As Siemens has officially discontinued the S5 product line, many industrial facilities operating legacy automation systems face an urgent need to source verified replacement units or plan a structured migration to modern platforms. TOPNLMS supplies the 6GK1500-0AA00 as a direct drop-in replacement, enabling plant engineers and maintenance teams to restore communication functionality without redesigning the entire control architecture.

The CP 5431 FMS/DP supports both PROFIBUS FMS (Fieldbus Message Specification) and PROFIBUS DP (Decentralized Periphery) protocols simultaneously, making it one of the most versatile communication modules in the S5 ecosystem. It slots directly into the S5-115U, S5-135U, and S5-155U central controller racks, occupying a standard S5 expansion slot without requiring additional mounting hardware or backplane adapters. The module interfaces with the S5 CPU via the internal S5 bus, and all existing wiring to the PROFIBUS DB9 connector can be retained without modification, dramatically reducing installation time and the risk of wiring errors during a hot-swap replacement.

For facilities running mixed PROFIBUS networks that include devices such as the Siemens ET 200M distributed I/O stations, Siemens IM 153-1 interface modules, or third-party PROFIBUS slaves from drives and valve manifolds, the 6GK1500-0AA00 maintains full master-class 1 functionality. Engineers who have configured the CP 5431 using the COM PROFIBUS configuration tool or the older SINEC NCM S5 software will find that existing GSD files and bus parameter settings remain valid, eliminating the need to rebuild network configurations from scratch.

When the replacement module is installed, the PROFIBUS DP cycle time, watchdog settings, and slave address assignments stored in the configuration database are re-downloaded via the PG 740 or PG 760 programming device, or through a compatible MPI/PROFIBUS PC adapter such as the Siemens 6GK1571-0BA00-0AA0 USB adapter. The S5 CPU — whether a CPU 948, CPU 928B, or CPU 946 — does not require a program reload, as the application logic resides in the CPU memory modules (EPROM or RAM cartridges) and is unaffected by the communication processor swap.

For sites planning a phased migration from SIMATIC S5 to SIMATIC S7 or TIA Portal-based systems, the 6GK1500-0AA00 serves as a critical bridging component. It allows the S5 controller to continue supervising PROFIBUS field devices — including Siemens SIMOREG DC Master drives, MICROMASTER 440 frequency inverters, and remote I/O clusters — while the new S7-300 or S7-400 controller is being commissioned in parallel. This parallel-run strategy minimizes production downtime and allows validation of the new control program against live process data before the final cutover.

Physical installation requires no special tools beyond a standard flat-blade screwdriver for the S5 rack retaining screw. The module’s front panel LED indicators — BF (Bus Fault), SF (System Fault), and RUN — provide immediate visual diagnostics during commissioning. Power consumption is drawn entirely from the S5 rack’s internal 5 V DC bus, so no external power supply wiring is needed. The module dimensions conform to the standard S5 single-width format, ensuring compatibility with all S5 subrack configurations including the UR1, UR2, and EG expansion racks.

TOPNLMS maintains stock of the 6GK1500-0AA00 and related S5 communication components to support emergency breakdown replacements and planned maintenance shutdowns. Each unit undergoes functional verification prior to dispatch, and orders placed before 3:00 PM CST are typically shipped same-day via DHL Express, FedEx International Priority, or SF Express for domestic China delivery.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful PROFIBUS communication restoration or S5 system migration typically involves more than a single module swap. When replacing the 6GK1500-0AA00, engineers commonly address the condition of adjacent components in the same control cabinet. The Siemens 6ES5 955-3LC41 power supply module, which feeds the S5 subrack, should be inspected for capacitor aging — a common failure mode in systems that have operated continuously for over 15 years. Similarly, the Siemens 6ES5 374-1KH21 EPROM memory submodule holding the CPU program should be backed up before any rack intervention.

For sites where the PROFIBUS network extends to remote field panels, the Siemens 6ES7 153-1AA03-0XB0 IM 153-1 interface module in ET 200M stations may also require replacement if bus communication errors persist after the CP 5431 swap, as aging IM modules are a secondary cause of intermittent DP faults. On the drive side, MICROMASTER 440 and SIMOREG DC Master units connected as PROFIBUS DP slaves retain their existing parameter sets and do not require re-parameterization when the master CP module is replaced, provided the slave address and baud rate settings are unchanged.

For facilities transitioning to S7 architecture, a Siemens CP 343-5 (6GK7 343-5FA01-0XE0) PROFIBUS CP for S7-300 can be installed in the new controller rack to maintain the same PROFIBUS DP network topology, allowing all existing field devices to remain connected without reconfiguration. The Siemens IM 360 / IM 361 expansion rack interface modules may also be relevant if the S5 system uses multi-rack configurations that need to be preserved during the transition period. Programming cable 6GK1571-0BA00-0AA0 (USB/PROFIBUS adapter) is recommended for downloading updated CP configurations during commissioning.

Retrofit Guidance FAQ

Q: Can I swap the 6GK1500-0AA00 without powering down the entire S5 rack?
A: No. The CP 5431 FMS/DP is not hot-swappable. The S5 rack must be powered down before removing or inserting the module. Plan the replacement during a scheduled maintenance window or process shutdown to avoid uncontrolled CPU stops.

Q: Do I need to re-download the PROFIBUS configuration after installing the replacement module?
A: Yes. The CP 5431 stores its PROFIBUS configuration (bus parameters, slave address table, GSD assignments) in its own internal memory. After installing a replacement unit, the configuration must be re-downloaded from COM PROFIBUS or SINEC NCM S5 using a PG or PC with the appropriate adapter.

Q: Will the existing PROFIBUS cable and DB9 connector work with the replacement module?
A: Yes. The 6GK1500-0AA00 uses a standard DB9 female PROFIBUS connector with the same RS-485 pinout as all other Siemens PROFIBUS modules. No rewiring is required. Verify that the cable termination resistors at the bus ends are correctly set if communication errors occur after replacement.

Q: Is the 6GK1500-0AA00 compatible with PROFIBUS PA segments?
A: No. The CP 5431 FMS/DP supports PROFIBUS DP and FMS only. PROFIBUS PA segments require a DP/PA coupler (such as the Siemens FDC 157-0) between the DP master and the PA field devices. The CP 5431 connects to the DP side of the coupler as normal.

Q: What is the maximum PROFIBUS cable length supported?
A: At 12 Mbit/s, the maximum segment length is 100 m. At 1.5 Mbit/s, it extends to 200 m per segment. Use PROFIBUS-compliant shielded twisted-pair cable (Type A) and ensure proper grounding of the cable shield at one end per segment to minimize EMI interference in industrial environments.

Q: Can this module be used in an S7-300 or S7-400 rack?
A: No. The 6GK1500-0AA00 is exclusively designed for the SIMATIC S5 backplane bus. For S7-300 systems, use the CP 343-5; for S7-400 systems, use the CP 443-5 Extended.

Warranty Assurance

Every Siemens 6GK1500-0AA00 unit supplied by TOPNLMS is covered by a 12-month replacement warranty from the date of delivery. Prior to shipment, each module undergoes a functional verification procedure that includes power-on self-test confirmation, LED status check, and PROFIBUS interface continuity testing. Units that do not pass verification are quarantined and not dispatched.

In the event of a warranty claim, TOPNLMS provides a replacement unit dispatch within 3 business days of fault confirmation, subject to stock availability. Customers are required to return the defective unit within 30 days of receiving the replacement. Warranty coverage applies to manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical impact.

For urgent breakdown situations, TOPNLMS offers priority processing for orders flagged as emergency replacements. Contact our technical sales team at [email protected] or call +86 18359293191 to confirm stock availability, request an expedited quotation, or arrange same-day dispatch. Our team is available Monday through Saturday, 09:00–18:00 CST.

All units are shipped with original manufacturer packaging where available, or in anti-static protective packaging with foam cushioning for transit protection. Export documentation including commercial invoice, packing list, and certificate of origin is provided for international shipments upon request.
