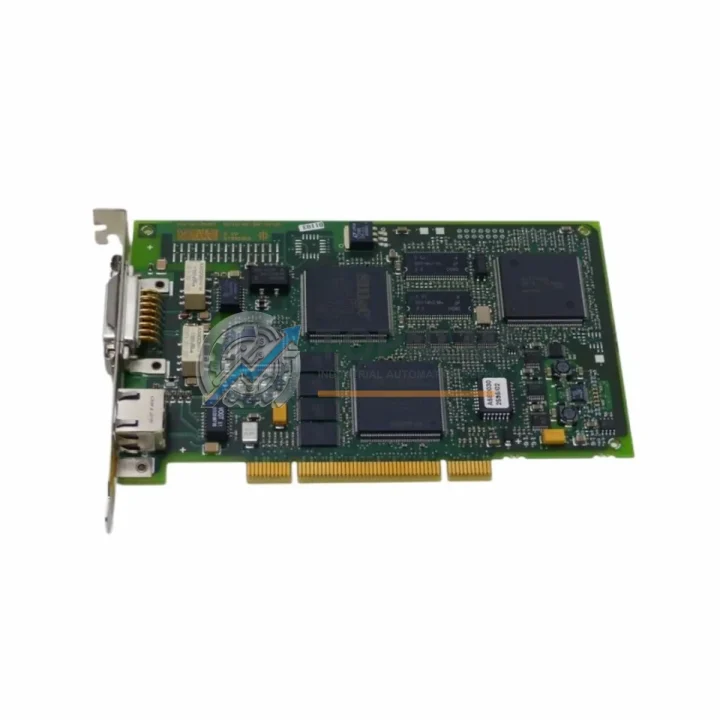

SIEMENS 6GK1161-3AA01 Original Industrial Spare CP1613 Compatible

Product Overview

SIEMENS 6GK1161-3AA01 Original Industrial Spare CP1613 Compatible: System Stability & Industrial Spare Parts Maintenance Value

In modern industrial automation environments, network communication reliability is the backbone of uninterrupted production. The SIEMENS 6GK1161-3AA01 — the CP1613 SIMATIC NET Ethernet PCI Communication Processor — is a mission-critical component that connects SIMATIC S7 controllers, HMI panels, and engineering workstations to Industrial Ethernet networks. When this card fails or degrades, the entire control network can be compromised, leading to costly unplanned downtime. Sourcing a verified original replacement unit before failure occurs is the cornerstone of any robust preventive maintenance strategy.

At TOPNLMS, every 6GK1161-3AA01 unit is sourced from authorized supply chains, individually tested for electrical integrity and communication performance, and shipped with a 12-month quality warranty. Whether you are managing a scheduled overhaul, responding to an emergency breakdown, or building a strategic spare parts inventory, this CP1613 card delivers the compatibility and reliability your SIMATIC NET infrastructure demands.

Critical Technical Specs

Preventive Maintenance Strategy

A CP1613 card replacement should never be treated in isolation. When a communication processor fails or shows intermittent packet loss, experienced maintenance engineers know that the surrounding network and control infrastructure must be inspected simultaneously to prevent repeat failures and cascading faults.

During a scheduled shutdown or emergency repair involving the 6GK1161-3AA01, it is best practice to inspect and — where necessary — replace the SIMATIC NET Industrial Ethernet switch (e.g., SCALANCE X208 or X216) that the CP1613 connects to. A degraded switch port can cause the new card to exhibit the same symptoms as the failed one, leading to misdiagnosis. Similarly, the IE FC RJ45 Plug 180 (6GK1901-1BB10-2AA0) and associated Industrial Ethernet FC TP Standard Cable should be inspected for physical damage, oxidation, or improper crimping — cable faults are among the most common root causes of CP1613 communication errors.

Inside the control cabinet, verify the integrity of the SITOP PSU100S 24V DC power supply module feeding the IPC or engineering workstation. Voltage fluctuations and ripple on the 24V rail are a leading cause of PCI card instability and premature failure. If the cabinet also houses a CP343-1 or CP443-1 Ethernet module on the S7-300 or S7-400 rack, these should be checked for firmware currency and connection health as part of the same maintenance window — they share the same network segment and are subject to the same environmental stressors.

For facilities running PROFINET IO topologies, the SIMATIC PN/PN Coupler (6ES7158-3AD10-0XA0) and any associated ET 200SP or ET 200M distributed I/O modules should be included in the inspection checklist. A CP1613 replacement is an ideal opportunity to audit the entire PROFINET ring or line topology for redundancy gaps. Additionally, if the workstation running STEP 7 or TIA Portal is aging, consider stocking a SIMATIC IPC427E or IPC547G industrial PC as a cold standby — the CP1613 card is directly compatible and can be pre-installed and pre-configured to minimize switchover time.

Finally, do not overlook the SIMATIC NET OPC server license (S7-1500 OPC UA module) and the CP1604 or CP1616 PROFINET IO controller cards as longer-term upgrade paths. Maintaining a documented spare parts register that includes the 6GK1161-3AA01 alongside these complementary components ensures your team can respond to any network-layer fault within a single maintenance shift rather than waiting days for emergency procurement.

Strategic Replacement Solutions

The SIEMENS 6GK1161-3AA01 CP1613 has been a workhorse in SIMATIC NET installations for over a decade. Many facilities continue to operate legacy S7-300 and S7-400 systems where this card remains the only certified communication interface between the PLC network and the engineering workstation. Replacing a failed unit with a verified original — rather than an uncertified substitute — eliminates the risk of protocol incompatibility, driver conflicts, and warranty voidance on connected SIMATIC hardware.

For sites transitioning toward newer architectures, the CP1613 A2 (6GK1161-3AA02) represents the direct successor with enhanced PROFINET IO controller functionality, while the CP1604 (6GK1160-4AA01) offers a PCI Express form factor for modern IPC platforms. Stocking the 6GK1161-3AA01 as a bridge spare during this transition period ensures that legacy lines remain operational while the migration is planned and budgeted — a strategy that significantly reduces the total cost of ownership and eliminates the pressure of forced emergency upgrades.

Our pre-shipment testing protocol covers link negotiation, ISO and TCP/IP stack initialization, S7 communication handshake verification, and thermal stress cycling. Each unit ships with a test report and is packaged in anti-static ESD-safe materials to prevent transit damage. Standard lead time is 3–7 business days for in-stock units, with express options available for critical downtime situations.

Support FAQ

Q1: Is the 6GK1161-3AA01 compatible with STEP 7 V5.x and TIA Portal?
Yes. The CP1613 is fully compatible with STEP 7 V5.3 and later, as well as TIA Portal V13 and above when used with the appropriate SIMATIC NET PC Software package. Ensure the PC Software version matches your STEP 7 or TIA Portal version for full driver support.

Q2: What does the 12-month warranty cover?
The warranty covers all manufacturing defects and functional failures under normal operating conditions for 12 months from the shipment date. It includes free replacement or repair. The warranty does not cover damage caused by incorrect installation, overvoltage events, or physical mishandling.

Q3: How do I verify compatibility before installation?
Check that your IPC or PC chassis has a free 32-bit PCI slot (3.3 V or 5 V universal). Confirm your operating system supports the SIMATIC NET PC Software version required for the CP1613 driver. We recommend cross-referencing the SIEMENS SIMATIC NET Catalog IK PI for full compatibility matrices. Our technical team can assist with compatibility verification prior to purchase.

Q4: Can I order multiple units for strategic spare parts inventory?
Yes. We support bulk and blanket orders for maintenance departments and MRO procurement teams. Volume pricing is available for orders of 3 or more units. Contact us to discuss lead times, packaging requirements, and consignment stocking arrangements tailored to your facility’s maintenance schedule.
