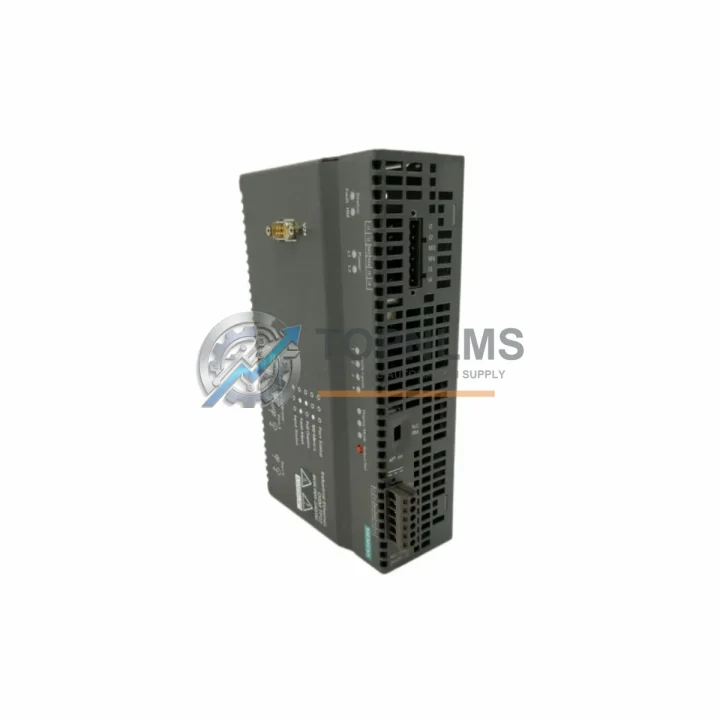

Siemens 6GK1105-2AE00 Original Industrial Spare SCALANCE Compatible

Product Overview

Siemens 6GK1105-2AE00 Original Industrial Spare SCALANCE Compatible: System Stability & Industrial Spare Parts Maintenance Value

The Siemens 6GK1105-2AE00 is an unmanaged industrial Ethernet switch from the SCALANCE X005 series, engineered for reliable, high-availability communication in demanding factory automation environments. With five 10/100 Mbit/s RJ45 ports and one integrated 100 Mbit/s fiber optic port (SC duplex), this switch is purpose-built for PROFINET, PROFIBUS-over-Ethernet, and general industrial LAN topologies. Maintaining a verified spare of the 6GK1105-2AE00 in your parts inventory is a proven strategy for minimizing unplanned downtime and extending the operational life of legacy SCALANCE X-series network infrastructure.

Critical Technical Specs

Preventive Maintenance Strategy

In any production facility running Siemens SIMATIC automation systems, the network layer is as critical as the control layer itself. The 6GK1105-2AE00 typically sits at the field level, connecting PROFINET devices — servo drives, remote I/O stations, HMI panels, and distributed control nodes — back to the plant network. A failure at this switch can cascade into a full line stoppage within seconds.

During scheduled maintenance windows or annual control cabinet inspections, maintenance engineers should treat the SCALANCE X005 switch as part of a broader network health audit. This means verifying fiber optic cable integrity on the SC duplex port — contaminated or aged fiber connectors are a leading cause of intermittent communication faults that are difficult to diagnose under production pressure. At the same time, it is good practice to inspect the 24 V DC power supply module feeding the switch, such as a Siemens SITOP PSU100S or equivalent, since voltage fluctuations outside the 18–32 V DC operating range can cause silent resets and packet loss that mimic PLC program faults.

For facilities running Siemens S7-300 or S7-400 PLCs, the SCALANCE X005 is often paired with CP 343-1 or CP 443-1 communication processors that handle PROFINET IO controller functions. Keeping a spare CP module alongside the 6GK1105-2AE00 in your parts cabinet ensures that a network-layer fault can be isolated and resolved without waiting for international procurement lead times. Similarly, ET 200S or ET 200M distributed I/O stations connected through this switch should have their interface modules — such as the IM 151-1 or IM 153-2 — stocked as critical spares, since these are the first components to show wear in high-cycle environments.

Technicians performing quarterly cabinet inspections should also check the terminal blocks and DIN rail mounting hardware securing the SCALANCE X005. Vibration in heavy manufacturing environments can loosen spring-clamp terminals on adjacent 24 V distribution modules and fuse terminal blocks, leading to intermittent power interruptions. Replacing aged terminal blocks proactively — particularly on the power input side of the switch — is a low-cost measure that prevents high-cost downtime.

For plants with mixed fiber and copper topologies, the fiber optic segment served by the 6GK1105-2AE00 should be tested annually with an optical power meter. If signal attenuation exceeds the rated budget for the installed cable run, replacement of the multi-mode fiber patch cable (SC-SC duplex, 50/125 µm or 62.5/125 µm) is recommended before the link degrades to the point of causing PROFINET communication errors. Stocking one or two pre-terminated fiber patch cables of the correct length is a minimal investment that pays dividends during emergency repairs.

In larger SCALANCE X-series network architectures — for example, ring topologies using SCALANCE X208 or X216 managed switches as backbone nodes — the X005 typically serves as an edge switch. If your facility uses Media Redundancy Protocol (MRP) or PROFINET ring redundancy, ensure that the managed backbone switches have their firmware current and that their configuration backups are stored offline. A spare SCALANCE X208 (6GK1105-2BB00) or similar managed switch should be part of the network spare parts plan alongside the unmanaged X005 units.

Finally, for facilities using Siemens SIMATIC HMI panels (such as the TP700 Comfort or KTP900 Basic) connected through the SCALANCE X005, it is advisable to maintain a spare HMI panel or at minimum a backup project image on a CF card or USB drive. HMI panels connected via PROFINET are directly dependent on the health of the network switch, and a simultaneous switch and HMI failure during a production incident can significantly extend recovery time.

Strategic Replacement Solutions

The 6GK1105-2AE00 has been in service across global manufacturing facilities for over a decade, and many plants continue to rely on SCALANCE X005 switches as part of legacy PROFINET infrastructure that is not scheduled for full replacement. Sourcing a verified original spare from TOPNLMS allows maintenance teams to execute a like-for-like replacement without any reconfiguration — the X005 is unmanaged, meaning no IP address assignment, no firmware update, and no configuration backup is required. The failed unit is removed, the spare is installed on the same DIN rail position, fiber and copper cables are reconnected, and the network segment is restored within minutes.

For facilities considering a phased network modernization, the 6GK1105-2AE00 can serve as a bridge solution while newer SCALANCE XC-200 or XP-200 series switches are evaluated and budgeted. Maintaining operational X005 units in service — supported by verified spare stock — avoids the risk of a forced emergency upgrade driven by an unplanned hardware failure rather than a planned capital project.

All units supplied by TOPNLMS are sourced from authorized distribution channels, inspected prior to shipment, and covered by a 12-month warranty. Each unit is tested for power-on functionality and port activity before dispatch. Shipping is available worldwide with full export documentation, and expedited dispatch is available for urgent maintenance requirements.

Support FAQ

Q1: Is the 6GK1105-2AE00 a direct drop-in replacement for an existing SCALANCE X005 unit?
Yes. The 6GK1105-2AE00 is an unmanaged switch with no configuration requirements. Replacement is purely mechanical and cabling — remove the failed unit, install the spare on the same DIN rail position, reconnect all fiber and copper cables, and restore power. No software or network reconfiguration is needed.

Q2: What is the recommended inventory quantity for a facility running multiple SCALANCE X005 switches?
For facilities with 5 or fewer X005 units installed, maintaining one spare is generally sufficient. For larger installations (10+ units) or for facilities with high uptime requirements (24/7 continuous production), a ratio of one spare per five installed units is a common industry practice. Given the age of the SCALANCE X005 series, sourcing spares now while supply is available is advisable.

Q3: How does TOPNLMS verify the authenticity and functionality of the 6GK1105-2AE00 before shipment?
Each unit undergoes a pre-shipment inspection that includes visual inspection for physical damage, power-on testing to confirm LED status indicators function correctly, and port activity verification. Units are sourced from traceable supply channels. A 12-month warranty is provided from the date of delivery, covering manufacturing defects and functional failures under normal operating conditions.

Q4: Can the 6GK1105-2AE00 be used in a PROFINET IO ring topology?
