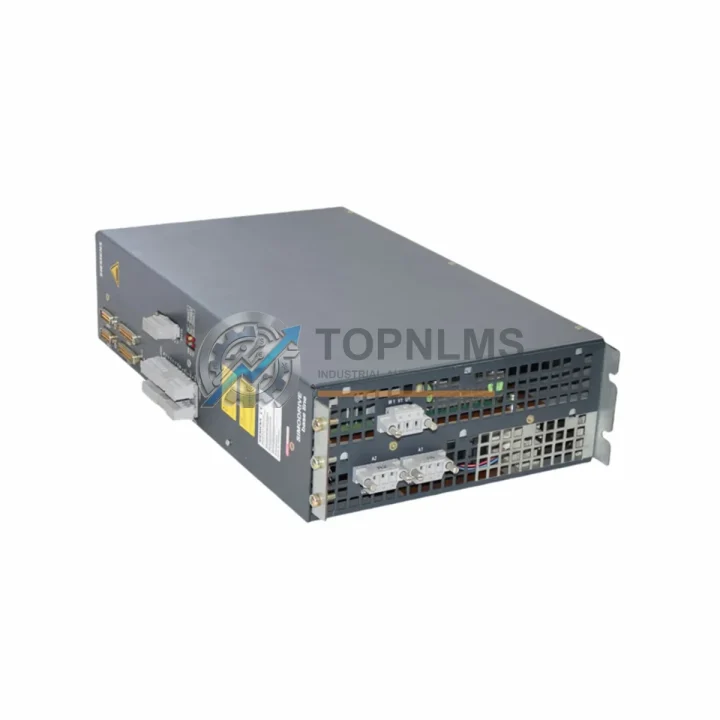

Siemens 6FC5548-0AC13-0AA0 Ruggedized CNC Axis Module

Product Overview

Siemens 6FC5548-0AC13-0AA0 Ruggedized CNC Axis Module: Industrial Resilience for Harsh Environments

The Siemens 6FC5548-0AC13-0AA0 is a single-axis drive module engineered for the SINUMERIK 840D CNC platform — one of the most demanding and widely deployed numerical control architectures in global heavy industry. Designed to operate reliably under extreme thermal stress, high-humidity conditions, pervasive airborne particulates, continuous mechanical vibration, and intense electromagnetic interference, this module delivers the motion control precision and uptime assurance that critical manufacturing environments demand.

Whether deployed on a high-speed machining center, a multi-axis turning line, or a precision grinding cell, the 6FC5548-0AC13-0AA0 maintains axis synchronization and servo loop integrity even when ambient conditions fall well outside the tolerances of standard industrial electronics. Its ruggedized design philosophy reflects Siemens’ commitment to continuous-production reliability — a non-negotiable requirement in automotive body shops, aerospace component machining, energy equipment fabrication, and heavy-duty metalworking facilities.

Rugged Specifications Table

Comprehensive Protection Solutions

The 6FC5548-0AC13-0AA0 does not operate in isolation — it is the axis-level intelligence at the heart of a tightly integrated motion and safety architecture. In a typical SINUMERIK 840D control cabinet, this module works in concert with the SINAMICS S120 Active Line Module (e.g., 6SL3130-series) to receive regulated DC bus power, ensuring that voltage fluctuations on the factory floor — common in facilities running large induction motors, resistance welders, or arc furnaces — do not propagate into the servo control loop.

Axis position feedback is delivered via DRIVE-CLiQ encoder interface modules (such as the SMC20 or SME20 sensor module cabinet-mounted units), which digitize resolver and incremental encoder signals with microsecond-level latency. This real-time feedback chain is essential for maintaining contour accuracy on five-axis machining centers where positional errors of even a few micrometers translate into scrap parts and costly rework.

On the safety side, the 6FC5548-0AC13-0AA0 integrates with Siemens SINUMERIK Safety Integrated functions — including Safe Torque Off (STO), Safe Stop 1 (SS1), and Safely Limited Speed (SLS) — without requiring external safety relays or additional wiring. These functions are activated through the SINUMERIK 840D NCU (Numerical Control Unit), which coordinates all axis modules over the high-speed DRIVE-CLiQ bus. For facilities operating under IEC 62061 or ISO 13849 safety standards, this integrated safety architecture eliminates the need for discrete safety PLCs on individual axes.

Power distribution within the cabinet is typically managed by Siemens SITOP PSU300S or equivalent 24 VDC industrial power supplies, which provide the logic-level voltage required by the NCU, operator panel interfaces, and I/O modules. Alongside these, SIMATIC ET 200SP I/O modules handle digital and analog field signals — limit switches, proximity sensors, coolant flow monitors — feeding real-time process data back to the 840D controller. Terminal modules such as the SIMATIC S7-300 SM321/SM322 series are commonly used in legacy hybrid installations where the 840D CNC coexists with a SIMATIC S7 PLC for auxiliary machine functions.

Communication beyond the cabinet is handled via PROFINET IO or PROFIBUS DP interfaces on the NCU, enabling the 840D system — including this axis module — to exchange production data with MES systems, SCADA platforms, and remote HMI panels. In multi-machine cells, the Siemens SCALANCE X industrial Ethernet switches provide the network backbone that keeps all CNC nodes synchronized without packet loss under heavy electromagnetic load.

Application in Critical Infrastructure

The Siemens 6FC5548-0AC13-0AA0 has proven its operational durability across some of the world’s most demanding industrial environments:

Oil & Gas Equipment Manufacturing: In facilities producing wellhead components, valve bodies, and subsea connectors, CNC turning and milling centers run 24/7 with zero tolerance for unplanned downtime. The 6FC5548-0AC13-0AA0’s robust DRIVE-CLiQ communication and integrated safety functions allow these machines to maintain axis control even during emergency stop events, protecting both the workpiece and the cutting tool from catastrophic collision.

Mining & Mineral Processing: Surface and underground mining equipment manufacturers rely on SINUMERIK 840D-controlled machining centers to produce large-diameter gears, bearing housings, and structural weldments. In these facilities, airborne metallic dust and coolant mist are constant threats to electronic components. The 6FC5548-0AC13-0AA0’s sealed module housing and conformal-coated PCB assemblies provide a critical barrier against conductive contamination that would otherwise cause insulation breakdown and axis faults.

Power Generation & Turbine Manufacturing: Turbine blade and rotor disk machining demands five-axis simultaneous interpolation with sub-micron repeatability. Power generation OEMs operating SINUMERIK 840D platforms depend on the 6FC5548-0AC13-0AA0 to maintain axis stiffness and position loop bandwidth even as ambient temperatures in the machining hall fluctuate with seasonal changes and heat generated by adjacent furnace operations.

Water Treatment Infrastructure: Pump and impeller manufacturers serving municipal water treatment and desalination plants use CNC machining centers to produce hydraulic components with tight geometric tolerances. The 6FC5548-0AC13-0AA0 supports the high-dynamic servo performance needed for complex contour milling of stainless steel and duplex alloy workpieces, where feed rate consistency directly impacts surface finish and hydraulic efficiency.

Metallurgy & Heavy Rolling Mills: In steel and aluminum rolling mill auxiliary equipment shops, the combination of high ambient temperature, electromagnetic noise from large DC drives, and floor vibration from rolling stands creates an exceptionally hostile environment for CNC electronics. The 6FC5548-0AC13-0AA0’s EMC-hardened design and vibration-resistant construction make it the preferred replacement module for maintenance teams managing aging SINUMERIK 840D installations in these facilities.

Security & Quality FAQ

Q1: What warranty coverage is provided with the Siemens 6FC5548-0AC13-0AA0?
Every unit supplied by TOPNLMS carries a 12-month warranty from the date of shipment. This covers functional defects under normal operating conditions. Each module undergoes pre-shipment functional testing — including DRIVE-CLiQ communication verification and power stage integrity checks — before dispatch. A test report is available upon request.

Q2: Is the 6FC5548-0AC13-0AA0 compatible with my existing SINUMERIK 840D installation?
Yes. The 6FC5548-0AC13-0AA0 is a direct replacement module for SINUMERIK 840D sl and 840Di sl systems using the SINAMICS S120 drive platform. It connects via the standard DRIVE-CLiQ interface and is recognized by the NCU without firmware modification in most configurations. For installations with customized axis parameter sets, we recommend verifying the NCU software version (NCK) prior to installation. Our technical team can assist with compatibility confirmation.

Q3: How quickly can the module be shipped, and what documentation is included?
In-stock units are dispatched within 1–3 business days from our Xiamen, China warehouse. International shipments are supported via DHL Express, FedEx International Priority, and sea freight for bulk orders. Each shipment includes a packing list, test certificate, and CE declaration of conformity. Export documentation for customs clearance is prepared in accordance with the destination country’s import requirements.

Q4: Can TOPNLMS support long-term supply continuity for this module?
Yes. TOPNLMS maintains a dedicated inventory of SINUMERIK 840D spare parts, including the 6FC5548-0AC13-0AA0 and related axis modules, NCU units, and power supply components. For OEM customers and maintenance contractors managing large installed bases, we offer blanket order agreements and priority stock reservation to ensure supply continuity even during periods of global component scarcity. Contact our team to discuss long-term procurement arrangements.
