Siemens 6FC5370-7AA00-0AA0 Replacement Solution for SINUMERIK 828D: Seamless Transition from Legacy CNC Systems

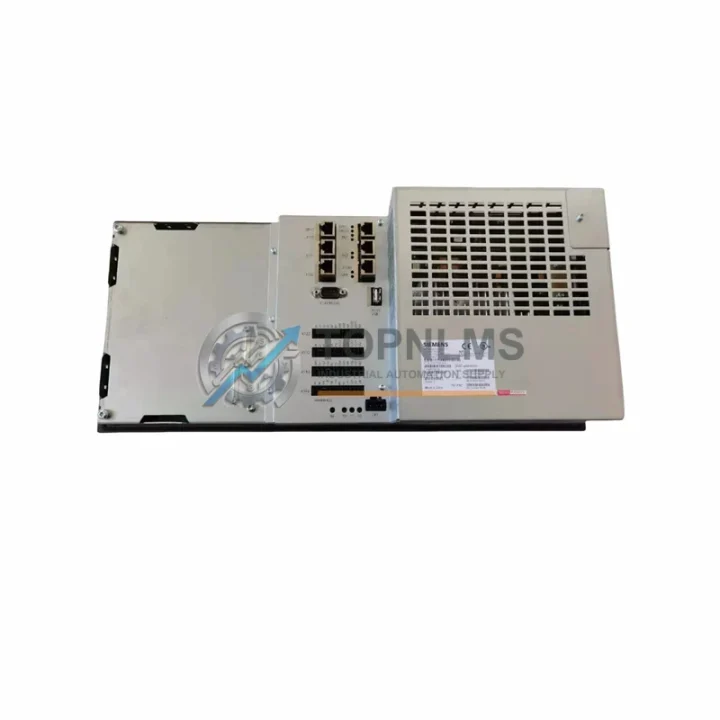

The Siemens 6FC5370-7AA00-0AA0 is the Panel Processing Unit (PPU281.1) at the heart of the SINUMERIK 828D compact CNC platform, widely deployed across turning, milling, and grinding machine tools. As original units age, suffer wear, or reach end-of-service, sourcing a verified replacement becomes critical to minimizing machine downtime and protecting production schedules. TOPNLMS maintains ready stock of the 6FC5370-7AA00-0AA0 to support direct swap-in replacements and structured CNC modernization projects.

This PPU281.1 integrates the operator panel interface, NC kernel, PLC (S7-200-compatible), and drive communication into a single compact housing — making it the central node of the SINUMERIK 828D architecture. Whether you are replacing a failed unit on a live production line or executing a planned retrofit from an older SINUMERIK 802D sl or SINUMERIK 810D system, the 6FC5370-7AA00-0AA0 provides a well-documented migration path with broad compatibility across Siemens drive and I/O ecosystems.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration to the 6FC5370-7AA00-0AA0 rarely involves the PPU alone. In most retrofit scenarios, the upgrade extends across the drive train and I/O infrastructure. When replacing a legacy SINUMERIK 802D sl or 810D system, engineers typically pair the new PPU281.1 with SINAMICS S120 drive modules — such as the 6SL3120-1TE21-0AA3 Single Motor Module — connected via DRIVE-CLiQ, eliminating the older PROFIBUS-based drive communication entirely.

For machine tools with extensive I/O requirements, the PP72/48 I/O module (6FC5311-0AA01-0AA0) is the standard expansion companion to the PPU281.1, providing 72 digital inputs and 48 digital outputs through a compact DIN-rail-mounted unit that connects directly to the PPU’s onboard interface. Where legacy systems used standalone SIMATIC ET 200S distributed I/O over PROFIBUS, the 828D architecture consolidates this into the PP72/48 topology, reducing wiring complexity and cabinet depth.

Drive power supply is another critical consideration. The SINAMICS S120 Active Line Module (6SL3130-7TE21-6AA3) or a compatible Smart Line Module must be correctly sized to match the spindle and feed axis configuration of the target machine. In smaller turning centers, the SINAMICS S110 single-axis drive is a common pairing with the 828D for simple 2-axis configurations.

Communication infrastructure upgrades are equally important. The 828D PPU281.1 uses PROFINET IO as its primary fieldbus, replacing the MPI/PROFIBUS topology of older systems. If the existing machine network includes legacy PROFIBUS slaves — such as older SIMATIC S7-300 I/O racks or third-party sensors — a PROFIBUS-to-PROFINET gateway or a PN/DP coupler (6GK1411-5AB00) may be required to bridge the two protocols during a phased migration.

For programming and commissioning, the SINUMERIK Operate software environment running on the PPU281.1 is configured and backed up using a standard CompactFlash card and the SINUMERIK 828D commissioning USB cable. Technicians migrating from 802D sl systems will find that NC part programs written in ISO/DIN dialect G-code are largely compatible, though PLC ladder logic must be re-adapted using STEP 7 Micro/WIN or the integrated PLC editor within SINUMERIK Operate.

Where the original machine used a separate Siemens OP 010 or OP 012 operator panel, the integrated 10.4″ display of the PPU281.1 eliminates the need for an external panel, freeing cabinet space and reducing the number of cable assemblies. For machines requiring a larger display, the PPU281.1 supports connection to an external TCU (Thin Client Unit) and a TP 015A or TP 700 Comfort panel via Ethernet.

Retrofit Guidance FAQ

Q: Can the 6FC5370-7AA00-0AA0 directly replace a failed PPU281.1 on an existing SINUMERIK 828D machine?
A: Yes. For same-series PPU replacements, the unit is a direct mechanical and electrical swap. The machine data backup stored on the CompactFlash card is restored to the new PPU, and the system is operational after a standard commissioning sequence. No rewiring of drive or I/O connections is required.

Q: What wiring changes are needed when migrating from a SINUMERIK 802D sl?
A: The primary change involves the drive interface. The 802D sl uses PROFIBUS DP to communicate with drives, while the 828D uses DRIVE-CLiQ. SINAMICS S120 drives with DRIVE-CLiQ ports connect directly; older SIMODRIVE 611 drives require a DRIVE-CLiQ adapter or full drive replacement. I/O wiring to the PP72/48 module follows a standard terminal assignment documented in the Siemens 828D commissioning manual.

Q: Is the PLC program from the old system compatible?
A: The 828D PPU281.1 uses an integrated S7-200-compatible PLC. Programs from 802D sl systems (also S7-200-based) can be migrated with minimal modification. Programs from 840D sl systems (S7-300-based) require re-engineering in the integrated PLC editor. Siemens provides migration guides for both paths.

Q: Does the PPU281.1 fit in the same cabinet cutout as the previous panel?
A: The PPU281.1 has a standardized panel cutout of 310 × 230 mm. If replacing an older OP panel + separate NC unit combination, the integrated PPU typically requires less total cabinet space, though the front panel cutout dimensions must be verified against the machine’s existing door or console.

Q: What communication protocols does the 6FC5370-7AA00-0AA0 support?
A: The PPU281.1 supports PROFINET IO (primary fieldbus), Ethernet (for DNC and remote access), USB (for data transfer and commissioning), and DRIVE-CLiQ (for drive topology). Legacy PROFIBUS DP connectivity is available via optional interface modules.

Q: How long does commissioning take after a direct PPU swap?
A: For a like-for-like replacement with a valid machine data backup, experienced engineers typically complete commissioning within 2–4 hours. For cross-series migrations (e.g., 802D sl to 828D), allow 1–3 days depending on machine complexity and I/O count.
