Siemens 6FC5303-0AF22-0AA1 Replacement for Sinumerik 802D

Product Overview

Siemens 6FC5303-0AF22-0AA1 Replacement for Sinumerik 802D: Seamless Transition & Legacy System Compatibility

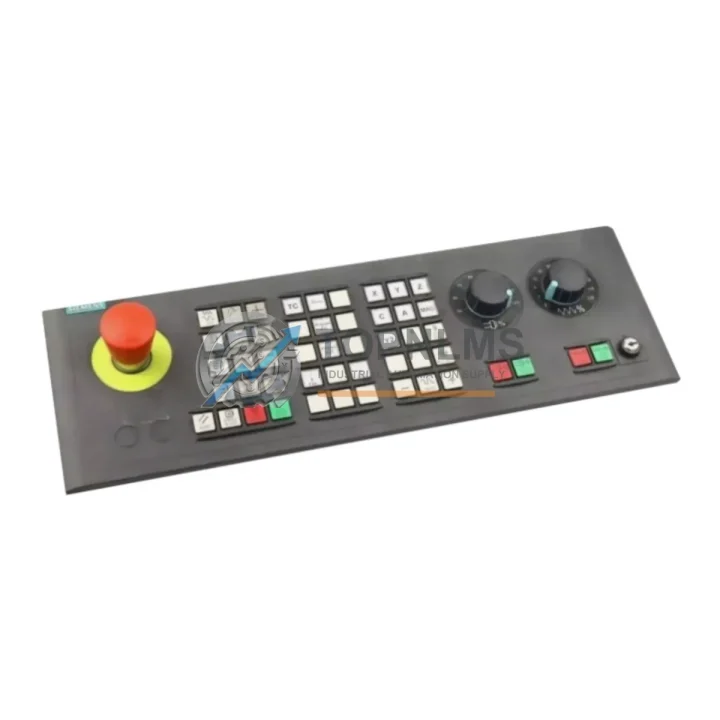

The Siemens 6FC5303-0AF22-0AA1 is the Machine Control Panel (MCP) designed for the Sinumerik 802D CNC control platform — one of the most widely deployed entry-level CNC systems in turning and milling applications across Asia, Europe, and emerging markets. As Siemens progressively phases out the 802D product line in favor of the Sinumerik 808D and Sinumerik 828D series, many machine tool builders and end-users face the challenge of sourcing reliable replacement panels without triggering a full machine retrofit or extended production downtime.

TOPNLMS maintains verified stock of the 6FC5303-0AF22-0AA1 MCP, fully tested and ready to ship. Each unit undergoes pre-shipment functional verification covering keypad response, membrane overlay integrity, connector pin continuity, and RS-232/RS-485 interface signaling — ensuring the replacement panel performs identically to the original OEM specification upon installation.

Compatibility Comparison Table

Seamless Upgrade Solutions

Replacing the 6FC5303-0AF22-0AA1 MCP is rarely an isolated task. In most field scenarios, the panel swap is part of a broader effort to restore or modernize a Sinumerik 802D-based machine tool. During the upgrade process, engineers commonly address several interconnected components to ensure system-level reliability.

The Sinumerik 802D NCU 572.4 numerical control unit is the most frequent companion replacement — when the MCP shows wear or failure, the NCU board often exhibits similar aging symptoms, particularly around the CompactFlash card slot and the integrated PLC processor. Replacing both simultaneously eliminates the risk of a second unplanned shutdown within the same maintenance window.

Power integrity is another critical factor. The Siemens SITOP PSU100S 24V/10A power supply module (or equivalent 24 V DC rail-mount PSU) should be verified or replaced when commissioning a new MCP, as voltage ripple or transient spikes from an aging PSU can cause intermittent keypad response errors that are easily misdiagnosed as panel faults.

For machines where the control cabinet also houses a Sinamics V70 or Sinamics S120 servo drive system, the MCP replacement is an ideal opportunity to audit the DRIVE-CLiQ wiring harness and encoder feedback cables. Degraded cables in this environment often cause axis alarm 25000-series faults that appear after a panel swap due to increased diagnostic polling from the refreshed MCP firmware state.

If the machine uses a Siemens OP 08T or OP 010 operator panel interface in a distributed HMI configuration alongside the 802D MCP, ensure that the MPI network termination resistors are correctly set after the panel replacement. MPI bus impedance mismatches are a common source of communication faults (alarm 6000) following hardware changes on the 802D platform.

Customers upgrading from a heavily worn 802D system sometimes choose to simultaneously replace the 6FC5303-0AF36-0AA0 full keyboard unit and the 6FC5303-0AF10-0AA1 hand-held unit (HHU) to achieve a fully refreshed operator interface. This approach is particularly common in high-cycle environments such as bar-fed turning centers where operator interface components experience accelerated wear.

For I/O expansion needs during the retrofit, the Siemens ET 200S distributed I/O system — connected via PROFIBUS DP to the 802D NCU — provides a clean path to add machine-specific signals without modifying the core MCP wiring. The 802D PLC supports up to 256 I/O bytes via PROFIBUS, giving integrators significant flexibility during modernization projects.

Finally, if the retrofit involves any PLC program modifications to accommodate new machine functions, a Siemens PC Adapter USB A2 MPI/PROFIBUS programming cable is required to connect a STEP 7 or 802D Toolbox workstation to the NCU. Ensuring this cable and the associated software license are available before the maintenance window begins is a standard best practice that significantly reduces commissioning time on-site.

Retrofit Guidance FAQ

Q: Is the 6FC5303-0AF22-0AA1 a direct wiring-compatible replacement for the original 802D MCP?
A: Yes. The connector pinout, 24 V DC power input, and ribbon cable interface are identical to the original OEM specification. No wiring modifications are required for a like-for-like replacement on a standard Sinumerik 802D machine.

Q: Do I need to reload the PLC program after replacing the MCP?
A: No PLC program reload is required for a direct MCP replacement. The PLC program resides on the NCU 572.4, not on the panel itself. However, it is good practice to verify DB signal assignments for any machine-specific MCP keys after installation.

Q: Is the MCP compatible with both the Sinumerik 802D and 802D sl variants?
A: Yes. The 6FC5303-0AF22-0AA1 is compatible with both the standard 802D and the 802D sl (solution line) variants. The MPI interface and physical mounting dimensions are identical across both sub-variants.

Q: What communication protocol does this panel use, and is it compatible with PROFIBUS?
A: The 6FC5303-0AF22-0AA1 communicates with the NCU via MPI (Multi-Point Interface) at 187.5 kbps. It does not natively support PROFIBUS DP. For PROFIBUS-based I/O expansion, a separate ET 200S or similar DP slave module is required.

Q: How much physical space does the replacement panel require in the control cabinet?
A: The panel requires a standard 483 mm × 120 mm cutout, consistent with 19-inch rack-mount installations. Depth behind the panel is approximately 60 mm. No additional cabinet modifications are needed for a standard 802D machine.

Q: Can this panel be used as an upgrade path from a Sinumerik 802S or 802C system?
A: The physical mounting is compatible, but the 802S and 802C use a different NCU and PLC architecture. A full NCU replacement to the 802D platform would be required before this MCP can be used. This is a common modernization path for older turning centers.

Q: What is the lead time and shipping arrangement?
A: Units are shipped from Xiamen, China. Standard international express delivery (DHL/FedEx) typically reaches most destinations within 3–7 business days. Expedited same-day dispatch is available for orders confirmed before 14:00 CST.

Warranty Assurance

Every 6FC5303-0AF22-0AA1 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. This warranty covers functional failure under normal operating conditions and includes free replacement or full refund at the buyer’s discretion.

Pre-shipment testing protocol includes: keypad membrane continuity check, connector pin-out verification against OEM specification, 24 V DC power-on functional test, and visual inspection for physical damage, corrosion, or counterfeit indicators. A test report is available upon request for quality-critical procurement processes.

In the event of a warranty claim, TOPNLMS provides a rapid response within 24 business hours. Replacement units are dispatched from stock, minimizing the impact on production schedules. Our after-sales team includes engineers with hands-on Sinumerik commissioning experience who can provide remote technical support during installation and troubleshooting.

For volume procurement, OEM partnerships, or consignment stock arrangements, please contact our sales team directly. We support blanket purchase orders, scheduled releases, and vendor-managed inventory programs for MRO and spare parts operations.
