Siemens 6ES7972-0AA01-0XA0 Ruggedized PROFIBUS Repeater

Product Overview

Siemens 6ES7972-0AA01-0XA0 Ruggedized PROFIBUS Repeater: Industrial Resilience for Harsh Environments

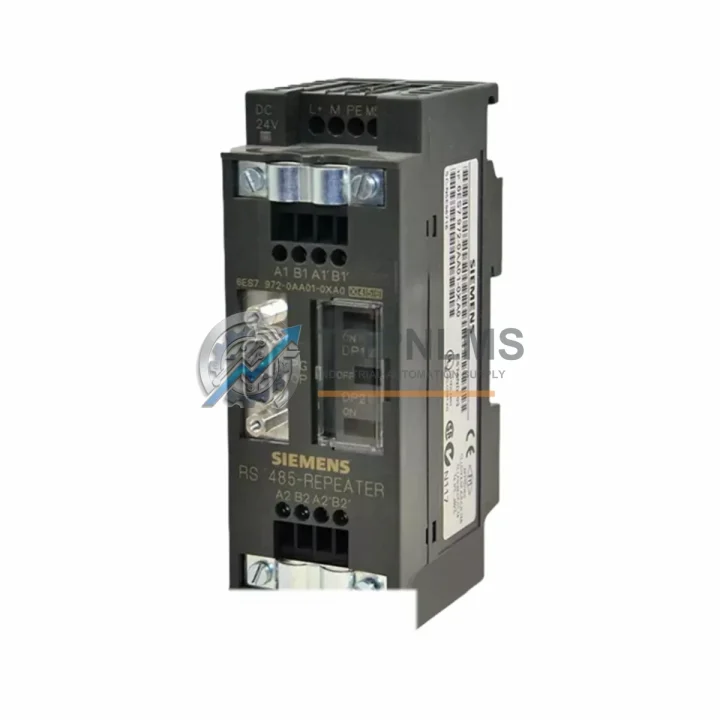

The Siemens 6ES7972-0AA01-0XA0 is a high-integrity PROFIBUS DP RS-485 Repeater Module engineered for continuous, fault-tolerant operation in the most demanding industrial environments. Designed as part of the SIMATIC S7 automation ecosystem, this module extends and regenerates PROFIBUS DP network segments, maintaining signal integrity across long cable runs and electrically noisy plant floors. Whether deployed in oil refineries, underground mining operations, high-voltage power substations, or continuous steel rolling mills, the 6ES7972-0AA01-0XA0 delivers the communication reliability that mission-critical control systems demand.

Industrial fieldbus networks are the nervous system of modern automation. When a PROFIBUS segment degrades due to electromagnetic interference, cable length limitations, or harsh ambient conditions, the consequences cascade across the entire control architecture — from SIMATIC S7-300 and S7-400 PLCs down through distributed I/O racks, variable frequency drives, intelligent motor control centers, and safety instrumented systems. The 6ES7972-0AA01-0XA0 acts as a hardened signal bridge, isolating network segments and preventing fault propagation, ensuring that upstream controllers and downstream field devices remain in continuous, synchronized communication.

Rugged Specifications Table

Comprehensive Protection Solutions

The 6ES7972-0AA01-0XA0 does not operate in isolation — it is a critical link in a layered protection and control architecture. In a typical heavy-industry control cabinet, this repeater works in concert with SIMATIC S7-300 CPU modules such as the 6ES7315-2AH14-0AB0, which serves as the central processing unit coordinating all field device communications. Distributed I/O expansion is handled through ET 200M interface modules like the 6ES7153-2BA02-0XB0, which connect remote I/O racks across extended PROFIBUS segments that this repeater sustains.

On the power side, SITOP PSU100S 24 V DC power supply units provide the stable, filtered DC supply that both the repeater and connected field devices require. Voltage fluctuations and transient spikes — common in environments with large motor loads — are absorbed before they can disrupt the PROFIBUS network. Alongside the power supply, SIMATIC S7 digital input modules (e.g., 6ES7321-1BL00-0AA0) and digital output modules (e.g., 6ES7322-1BL00-0AA0) handle the discrete I/O signals from sensors, actuators, and safety interlocks distributed across the plant floor.

For process-level safety, the 6ES7972-0AA01-0XA0 is frequently deployed alongside SIMATIC Safety Integrated modules such as the 6ES7326-1BK02-0AB0 fail-safe digital input module, which monitors emergency stop circuits, light curtains, and safety gate switches. The repeater ensures that safety-relevant PROFIBUS telegrams are transmitted without delay or corruption — a non-negotiable requirement in SIL 2 and SIL 3 rated safety instrumented systems. Communication integrity is further reinforced by PROFIBUS DP termination resistor connectors (6ES7972-0BA52-0XA0) installed at each segment end, preventing signal reflections that could cause intermittent faults.

In drive-intensive applications, SINAMICS G120 variable frequency drives communicate over PROFIBUS DP, and the 6ES7972-0AA01-0XA0 bridges the segment between the PLC rack and the drive line-up, isolating the high-frequency switching noise generated by the drive inverters from the sensitive PLC backplane. Similarly, SCALANCE X208 industrial Ethernet switches may be used in parallel network architectures, with PROFIBUS and PROFINET coexisting in the same control cabinet — a topology where clean segment separation provided by this repeater is essential.

Application in Critical Infrastructure

In upstream oil and gas facilities, the 6ES7972-0AA01-0XA0 is deployed in wellhead control panels and pipeline SCADA systems where PROFIBUS DP networks span hundreds of meters across hazardous classified areas. The repeater’s ability to galvanically isolate network segments prevents ground loop currents — a persistent threat in large petrochemical installations — from corrupting process data transmitted between PLCs and field instruments such as pressure transmitters, flow meters, and solenoid valve positioners.

In underground coal and metal mining operations, the module withstands the extreme vibration, dust ingress, and humidity that characterize tunnel environments. Mounted inside sealed control enclosures rated to IP65 or higher, the repeater maintains PROFIBUS communication between surface control rooms and underground conveyor drive systems, ventilation fan controllers, and emergency hoisting equipment — systems where communication failure can trigger immediate safety shutdowns with significant production impact.

Power generation facilities — including thermal, hydroelectric, and nuclear plants — rely on PROFIBUS DP for turbine control, generator excitation systems, and auxiliary plant automation. The 6ES7972-0AA01-0XA0 extends PROFIBUS segments across large generator halls where cable runs exceed the 200-meter single-segment limit, ensuring that protection relay systems and distributed control panels remain synchronized with the central DCS. In water and wastewater treatment plants, the module connects remote pump stations and chemical dosing systems to central SCADA platforms, operating reliably in high-humidity environments where condensation and chemical vapors are constant concerns.

Metallurgical and steel production environments present perhaps the harshest conditions of all: radiant heat from furnaces, electromagnetic interference from induction heating systems, and mechanical vibration from rolling mills and presses. The 6ES7972-0AA01-0XA0 has a proven track record in these environments, maintaining PROFIBUS network integrity between melt shop PLCs, ladle handling cranes, continuous casting machine controllers, and finishing line drive systems — enabling uninterrupted production runs that are measured in days, not hours.
