Siemens 6ES7952-1KL00-0AA0 Replacement/Upgrade for S7-400

Product Overview

Siemens 6ES7952-1KL00-0AA0 Replacement/Upgrade Solution for S7-400: Seamless Transition from Legacy Systems

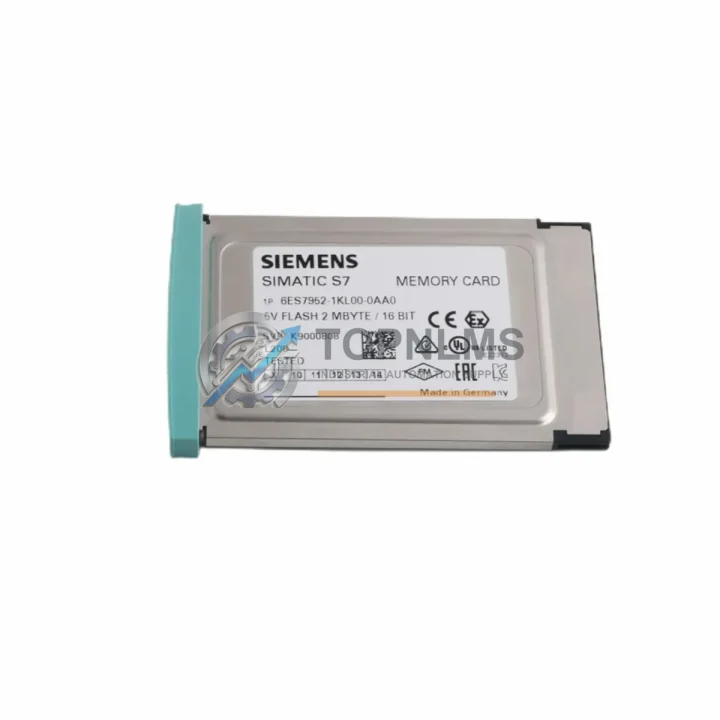

The Siemens 6ES7952-1KL00-0AA0 is a 2 MB Flash Memory Card designed for the SIMATIC S7-400 programmable logic controller platform. As industrial facilities worldwide accelerate the retirement of aging control architectures, this memory card serves as a critical bridge component — enabling engineers to migrate program data, retain configuration blocks, and maintain system continuity without requiring a full controller replacement. Whether you are upgrading from an earlier S7-400 CPU variant, replacing a failed or end-of-life memory module, or consolidating spare-part inventory across multiple production lines, the 6ES7952-1KL00-0AA0 delivers the storage capacity and compatibility required for a smooth, low-risk transition.

In legacy S7-400 installations, the memory card slot accepts a range of SIMATIC memory cards differentiated by capacity and function. The 6ES7952-1KL00-0AA0 occupies the same physical form factor as earlier 512 KB and 1 MB variants, making it a direct physical replacement in existing CPU racks. Engineers migrating from older CPUs such as the CPU 412-1 or CPU 414-2 DP will find that the expanded 2 MB capacity accommodates larger OB, FB, FC, and DB block structures that accumulate over years of incremental program development — eliminating the storage bottlenecks that frequently trigger unplanned shutdowns in mature automation systems.

From a wiring and installation perspective, no hardware modification is required. The card inserts directly into the memory card slot on the front panel of compatible S7-400 CPUs. Power cycling the CPU after card insertion initiates the standard SIMATIC boot sequence, during which the CPU reads the program from the Flash memory. This behavior is consistent across the S7-400 family, meaning that field technicians already familiar with the platform can complete the swap without additional training. For sites running redundant CPU configurations — such as those using the CPU 417-4H in a hot-standby arrangement — the memory card replacement procedure follows the same sequence on both primary and standby units, preserving system redundancy throughout the maintenance window.

Communication protocol compatibility is fully maintained. The 6ES7952-1KL00-0AA0 stores program blocks that govern PROFIBUS DP master and slave configurations, MPI network parameters, and Industrial Ethernet interface settings. Facilities that have integrated their S7-400 controllers with CP 443-1 or CP 443-5 Extended communication processors will retain all network topology definitions and GSD-based device configurations stored in the program. This is particularly relevant for plants operating distributed I/O architectures using ET 200M remote I/O stations connected over PROFIBUS, where any disruption to the stored configuration can cascade into widespread I/O faults across the production floor.

For facilities undertaking a broader modernization initiative — transitioning from S7-400 to S7-1500 or migrating DCS functions to a unified SIMATIC PCS 7 architecture — the 6ES7952-1KL00-0AA0 plays a practical interim role. It allows the existing S7-400 system to remain operational and fully programmed while parallel engineering work proceeds on the new platform. During this phase, engineers frequently work alongside components such as the IM 460-0 send interface module for multi-rack expansion, PS 407 power supply modules for rack power integrity, and SM 421 digital input modules or SM 422 digital output modules that continue to serve field I/O requirements. Retaining a correctly programmed and tested memory card in the legacy system ensures that rollback is always possible if commissioning of the new architecture encounters delays.

Control cabinet space is not a concern. The compact PCMCIA-style form factor of the 6ES7952-1KL00-0AA0 means it adds no footprint to the existing rack assembly. In high-density cabinets where multiple S7-400 racks are mounted alongside SITOP power supply units and marshalling terminals, the memory card swap can be completed without disturbing adjacent wiring or requiring panel modifications. This is a meaningful advantage in brownfield retrofit projects where cabinet real estate is constrained and any physical change carries risk of collateral wiring disturbance.

From a procurement and supply-chain standpoint, sourcing a tested and verified 6ES7952-1KL00-0AA0 from a reliable industrial automation supplier reduces the risk associated with counterfeit or degraded Flash memory entering the spare-parts inventory. Each unit shipped by TOPNLMS undergoes functional verification prior to dispatch, and all items are covered by a 12-month warranty from the date of shipment. Stock is maintained in Xiamen with express international shipping options available to minimize lead time for urgent replacement scenarios. For maintenance teams operating under strict mean-time-to-repair targets, having a verified spare on the shelf — or being able to source one within 48–72 hours — is a measurable contribution to overall equipment effectiveness.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful S7-400 memory card replacement rarely occurs in isolation. In most retrofit and modernization projects, the 6ES7952-1KL00-0AA0 is deployed alongside a coordinated set of components that together ensure system continuity. The PS 407 10A power supply module is commonly refreshed at the same time to guarantee stable 24 VDC and 5 VDC rail integrity across the CPU rack — voltage fluctuations during card read/write cycles are a known cause of data corruption in aging installations. The IM 460-0 central send interface and its counterpart IM 461-0 receive interface are evaluated for replacement when multi-rack configurations show intermittent communication faults that could be misattributed to the memory card itself.

For distributed I/O, ET 200M IM 153-2 interface modules connected over PROFIBUS are verified for firmware compatibility with the updated program stored on the new memory card. Digital I/O modules such as the SM 421 DI 32×DC 24V and SM 422 DO 32×DC 24V/0.5A are tested against the updated I/O mapping defined in the refreshed program blocks. Where signal isolation is required between field instruments and the S7-400 I/O bus, SITOP PSU100S power conditioners and signal isolators are incorporated to maintain measurement integrity. Finally, a PC Adapter USB A2 or CP 5711 programming cable is essential for connecting the engineering workstation running STEP 7 to the CPU MPI/PROFIBUS port during commissioning and post-swap verification — ensuring that the program on the new 6ES7952-1KL00-0AA0 matches the validated backup before the system is returned to production.

Retrofit Guidance FAQ

Q: Can I swap the memory card while the CPU is powered?
A: No. Siemens requires the CPU to be powered down before inserting or removing the memory card. Failure to do so risks data corruption and potential CPU fault. Always follow the SIMATIC S7-400 hardware installation manual procedure.

Q: Will my existing STEP 7 program transfer directly to the 6ES7952-1KL00-0AA0?
A: Yes. Use STEP 7 v5.x to download the program from the engineering workstation to the CPU with the new card inserted. The 2 MB capacity accommodates all standard S7-400 program structures including OBs, FBs, FCs, DBs, and SDBs.

Q: Does replacing the memory card affect my PROFIBUS DP network configuration?
A: Only if the network configuration (GSD files, slave addresses, baud rate) is stored in the program on the card. Ensure your STEP 7 project backup is current before the swap, and re-download the complete program including hardware configuration (HW Config) after card replacement.

Q: Is the 6ES7952-1KL00-0AA0 compatible with redundant CPU setups?
A: Yes. For H-system configurations using CPU 417-4H, the same card type is used in both CPUs. Follow the S7-400H redundancy maintenance procedure to replace cards without interrupting the standby system.

Q: What if my cabinet has limited access to the CPU front panel?
A: The PCMCIA card slot is accessible from the front of the CPU module. In high-density cabinets, partial withdrawal of the CPU from the rack may be necessary. Consult the rack mounting depth specifications in the S7-400 hardware manual before scheduling the maintenance window.

Warranty Assurance

Every Siemens 6ES7952-1KL00-0AA0 shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a functional verification process that confirms Flash memory integrity, physical connector condition, and label authenticity. In the event of a confirmed defect within the warranty period, TOPNLMS provides replacement support with priority processing to minimize impact on your production schedule. Our after-sales response team is reachable via email and phone to coordinate return logistics, issue replacement authorization, and provide documentation for your maintenance records. For procurement teams requiring traceability, shipment documentation including packing lists and commercial invoices is provided with every order. Express shipping options are available for urgent replacement requirements, with dispatch from Xiamen typically within 1–2 business days of order confirmation.
