Siemens 6ES7951-1KM00-0AA0 S7-400 4MB Flash EPROM Upgrade

Product Overview

Siemens 6ES7951-1KM00-0AA0 S7-400 4MB Flash EPROM Upgrade: Seamless Migration & Legacy System Compatibility

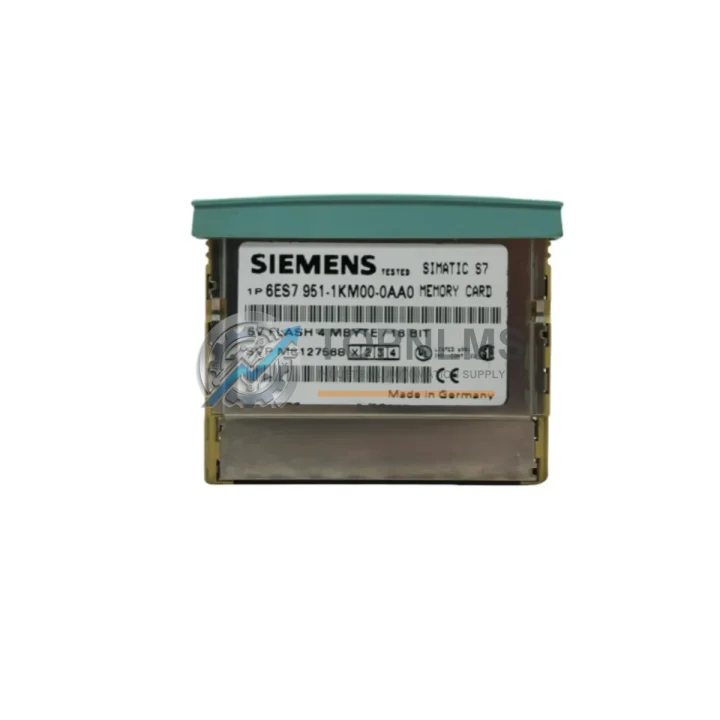

The Siemens 6ES7951-1KM00-0AA0 is a 4MB Flash EPROM Memory Card designed for the SIMATIC S7-400 programmable logic controller platform — one of the most widely deployed high-performance PLC families in process automation, power generation, chemical processing, and heavy manufacturing. As Siemens progressively phases out legacy S7-400 components, facilities running aging control architectures face increasing pressure to source reliable replacement memory modules that preserve program integrity, minimize re-engineering effort, and eliminate unplanned downtime.

This 6ES7951-1KM00-0AA0 memory card serves as a direct drop-in replacement for end-of-life or corrupted Flash EPROM modules in existing S7-400 racks. It is fully compatible with the S7-400 central processing units including the CPU 412, CPU 414, CPU 416, and CPU 417 families, and integrates without modification into standard S7-400 mounting racks such as the UR1 and UR2 universal racks. No firmware update, no re-wiring, and no changes to the existing STEP 7 project structure are required — the card slots directly into the memory card interface on the CPU front panel and is immediately recognized by the controller.

For plants currently operating on SIMATIC S7-400 systems with older 2MB or 1MB Flash EPROM cards, the 6ES7951-1KM00-0AA0 provides a capacity upgrade path that accommodates larger user programs, extended data blocks, and more complex function block libraries without requiring a CPU replacement. This is particularly valuable in retrofit scenarios where the control logic has grown over years of incremental engineering changes and the original memory card is approaching its storage limit.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful S7-400 memory card migration rarely involves a single component. In practice, field engineers replacing a 6ES7951-1KM00-0AA0 are often simultaneously addressing adjacent system needs. When the CPU itself is being refreshed alongside the memory card, the CPU 416-3 PN/DP is a common upgrade target — it supports PROFINET IO natively and eliminates the need for a separate CP 443-1 communication processor in many network topologies. For sites still relying on PROFIBUS DP as the primary fieldbus, the CP 443-5 Extended communication module remains a critical companion component, bridging the S7-400 backplane to distributed I/O stations and third-party field devices.

Power supply integrity is equally important during any memory card replacement procedure. The PS 407 10A power supply module is the standard choice for S7-400 racks, and its condition should be verified before and after the memory card swap to rule out voltage instability as a contributing factor to memory corruption. In high-availability installations, a redundant PS 407 configuration is strongly recommended to prevent recurrence.

On the I/O side, SM 421 digital input modules and SM 422 digital output modules connected via the S7-400 backplane continue to operate without interruption during a memory card replacement, provided the CPU is placed in STOP mode per standard Siemens commissioning procedure. Analog signal chains using SM 431 analog input modules similarly require no recalibration after the memory card is exchanged, as the process image and hardware configuration are re-loaded from the new card on the next CPU startup cycle.

For facilities transitioning from older S5-series controllers to the S7-400 platform as part of a broader modernization initiative, the IM 463-2 interface module facilitates S5-compatible I/O integration into the S7-400 rack, protecting existing field wiring investments. Programming cable connectivity — typically via the PC Adapter USB A2 or MPI/DP interface — should be confirmed operational before initiating the program download to the new memory card, as communication faults during the write cycle can result in incomplete program transfers.

In control cabinet environments where space is constrained, the compact form factor of the 6ES7951-1KM00-0AA0 ensures no panel re-layout is required. Signal isolators and terminal blocks within the cabinet remain undisturbed, and the overall system architecture — including any ET 200M distributed I/O stations connected over PROFIBUS — continues to function within the existing network configuration.

Retrofit Guidance FAQ

Q: Can I replace the 6ES7951-1KM00-0AA0 without powering down the entire S7-400 system?
A: Hot-swap capability depends on the specific CPU variant. Most S7-400 CPUs require the CPU to be in STOP mode before removing or inserting a memory card. Consult the CPU’s operating manual for the exact procedure. In redundant CPU configurations (H-systems), one CPU can be taken offline while the partner CPU maintains process control.

Q: Will my existing STEP 7 program transfer to the new 4MB card without modification?
A: Yes. The 6ES7951-1KM00-0AA0 is fully compatible with STEP 7 V5.x and TIA Portal in S7-400 project mode. Simply download the existing project from your programming station to the new card. No block restructuring or address remapping is required.

Q: Does replacing the memory card affect PROFIBUS DP or MPI network communication?
A: No. Communication parameters are stored in the CPU’s hardware configuration, which is re-loaded from the memory card on startup. After a successful program download, the CPU will resume MPI and PROFIBUS DP communication with all connected nodes using the original network addresses and baud rate settings.

Q: What if my current memory card is physically damaged or unreadable?
A: If the original card cannot be read, you will need to restore the STEP 7 project from a backup archive (*.s7p or *.zip project file) and perform a fresh download to the 6ES7951-1KM00-0AA0. This is standard practice for disaster recovery in S7-400 installations. Always maintain an off-site backup of your PLC project.

Q: Is the 6ES7951-1KM00-0AA0 compatible with S7-400H redundant systems?
A: Yes, provided the CPU variant used in the H-system supports this memory card size. Both CPUs in a redundant pair must use identical memory card types and program versions to maintain synchronization.

Q: How do I verify the card is correctly recognized after installation?
A: After inserting the card and powering the CPU, use STEP 7 HW Config or TIA Portal to perform an online comparison. The CPU diagnostic buffer will confirm successful memory card detection. A green RUN LED with no SF (System Fault) indication confirms normal operation.

Warranty Assurance

Every 6ES7951-1KM00-0AA0 unit shipped by TOPNLMS is covered by a 12-Month Warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification including memory read/write cycle testing and physical interface inspection to ensure it meets original Siemens specification tolerances.

In the event of a confirmed defect within the warranty period, TOPNLMS provides direct replacement support with priority processing for critical production environments. Our after-sales response target is within 24 hours of defect notification. Replacement units are dispatched from our Xiamen warehouse with full tracking, and return logistics coordination is handled by our technical support team.

For procurement teams requiring documentation, we provide a shipment inspection report upon request. Bulk orders for MRO (Maintenance, Repair & Operations) inventory programs are supported with volume pricing and extended lead-time planning. All units are shipped in anti-static packaging with original manufacturer labeling intact.

Contact our industrial automation specialists for pre-purchase compatibility verification, cross-reference confirmation, or urgent same-day quotation requests.
