Siemens 6ES7648-2BF02-0XG0 Original Industrial Spare S7-400 Compatible

Product Overview

Siemens 6ES7648-2BF02-0XG0 Original Industrial Spare S7-400 Compatible: System Stability Through Reliable Memory Infrastructure

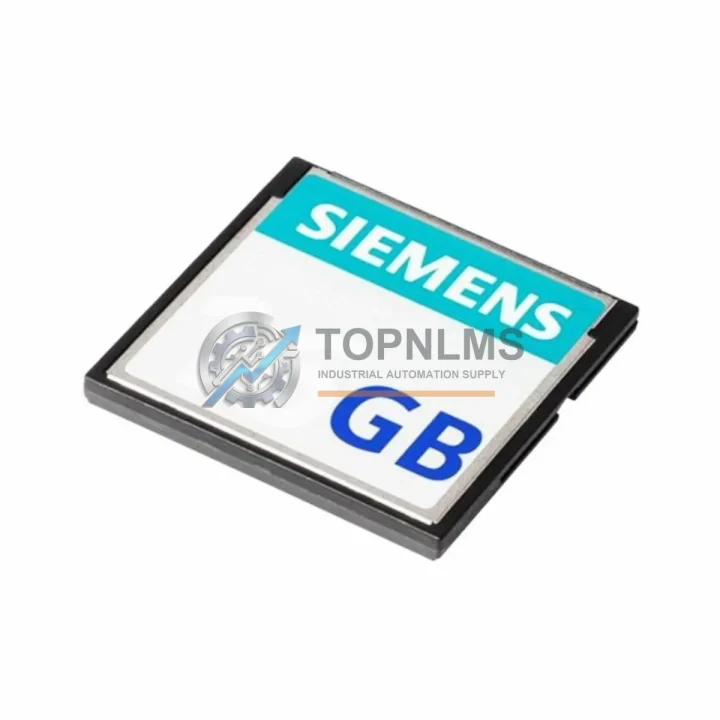

In industrial automation environments where uptime is measured in production output and unplanned downtime translates directly to financial loss, the integrity of every component in a control cabinet matters. The Siemens 6ES7648-2BF02-0XG0 is a 4 GB Compact Flash Card engineered specifically for the SIMATIC S7-400 programmable logic controller platform and WinAC software controller applications. As an original Siemens spare part, it serves as the primary non-volatile storage medium for PLC programs, data blocks, configuration files, and runtime archives — making it a mission-critical component in any S7-400-based control system.

Whether you are managing a continuous process plant, a discrete manufacturing line, or a legacy automation system that must remain operational for years to come, maintaining a verified stock of the 6ES7648-2BF02-0XG0 is a foundational element of any responsible spare parts strategy. This card is fully compatible with the S7-400 CPU family and supports the WinAC MP and WinAC RTX environments, ensuring seamless program retention and fast system recovery after hardware replacement or firmware updates.

Critical Technical Specs

Preventive Maintenance Strategy

A Compact Flash Card failure in an S7-400 system does not occur in isolation — it is typically a signal that the surrounding hardware ecosystem deserves a comprehensive inspection. When scheduling a maintenance window to replace or verify the 6ES7648-2BF02-0XG0, experienced maintenance engineers treat it as an opportunity to audit the entire control cabinet and associated electrical circuits.

Begin with the S7-400 CPU module itself (such as the CPU 414-3 or CPU 416-3 PN/DP). Verify firmware version compatibility with the CF card and confirm that the battery backup module — typically a 6ES7971-0BA00 or equivalent SIMATIC S7-400 backup battery — is within its service life. A depleted backup battery is one of the most common causes of program loss during power cycling, and it should always be replaced alongside any memory card service.

Next, inspect the S7-400 power supply module (PS 407 or PS 405 series). Unstable supply voltage is a leading cause of premature CF card wear and data corruption. If the power supply is approaching its rated service hours or shows signs of capacitor aging, proactive replacement prevents cascading failures. While the cabinet is open, check the IM 460 / IM 461 interface modules used for multi-rack expansion — connector oxidation and loose backplane contacts can introduce intermittent faults that are difficult to diagnose remotely.

For systems using PROFIBUS DP or PROFINET communication, this is also the right moment to verify the integrity of CP 443-1 or CP 443-5 communication processor modules. Network communication faults often surface after a CPU or memory card replacement because the system re-initializes its network stack. Having a spare CP module on hand eliminates a potential second unplanned outage.

On the I/O side, inspect SM 321 digital input modules and SM 322 digital output modules for signs of channel failure, particularly in high-cycle applications. Analog signal integrity should be verified on SM 331 and SM 332 analog I/O modules, especially in process control loops where signal drift can affect product quality. If the system uses signal isolators or barriers between field instruments and the PLC rack, these should be tested for leakage current and isolation resistance.

Finally, review the terminal blocks and wiring harnesses within the cabinet. Loose terminations and insulation degradation are silent contributors to intermittent faults. A thorough torque check and visual inspection of all terminal connections, combined with a planned replacement of the 6ES7648-2BF02-0XG0, transforms a reactive repair into a proactive maintenance event that extends system life by years.

Strategic Replacement Solutions

The 6ES7648-2BF02-0XG0 is the direct replacement for earlier-generation Siemens S7-400 Compact Flash Cards with smaller capacities (1 GB and 2 GB variants). Its 4 GB capacity provides headroom for expanded program archives, data logging, and WinAC runtime environments that earlier cards could not accommodate. This makes it the preferred upgrade path for facilities that are extending the operational life of existing S7-400 infrastructure rather than migrating to newer TIA Portal-based platforms.

For maintenance teams managing legacy systems, the key advantage of sourcing an original Siemens 6ES7648-2BF02-0XG0 is guaranteed firmware compatibility. Third-party or counterfeit CF cards may appear to function initially but can cause subtle data integrity issues, unexpected CPU faults, or incompatibility with specific S7-400 firmware versions. Original parts eliminate this risk entirely and ensure that the system behaves identically to its factory-configured state.

Replacement is straightforward: power down the CPU, remove the existing CF card from the front-panel slot, insert the 6ES7648-2BF02-0XG0, and restore power. The CPU will automatically detect the new card. If the card is pre-loaded with a program backup, the system can resume operation within minutes — a critical advantage in time-sensitive production environments. For facilities with multiple S7-400 racks, maintaining at least one spare 6ES7648-2BF02-0XG0 per site reduces mean time to recovery (MTTR) from hours to minutes.

Support FAQ

Q1: What is the expected service life of the 6ES7648-2BF02-0XG0, and when should I plan for replacement?
Siemens rates industrial Compact Flash Cards for a minimum of 10 years under normal operating conditions. However, in high-temperature environments or systems with frequent power cycling, proactive replacement every 5–7 years is recommended. Always maintain at least one spare unit in your local inventory to avoid lead-time delays during an unplanned outage.

Q2: Is the 6ES7648-2BF02-0XG0 compatible with all S7-400 CPU variants?
This card is compatible with the full S7-400 CPU family including the CPU 412, 414, 416, and 417 series, as well as WinAC MP and WinAC RTX environments. Always verify the specific CPU firmware version against Siemens compatibility documentation before deployment in safety-critical applications.

Q3: How is the card tested before shipment, and what does the 12-month warranty cover?
Every unit is inspected and functionally verified prior to dispatch. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units showing signs of physical damage, incorrect installation, or operation outside specified environmental parameters are excluded from warranty coverage.

Q4: Can I pre-load a PLC program onto the card before installation to minimize downtime?
Yes. The 6ES7648-2BF02-0XG0 can be pre-programmed using STEP 7 or TIA Portal (with S7-400 support package) before installation. This approach is strongly recommended for critical production lines where minimizing switchover time is essential. Contact our technical team for guidance on program transfer procedures specific to your CPU variant.
