Siemens 6ES7646-0BC20-0AA0 Ruggedized PCU Module for Harsh Environments

Product Overview

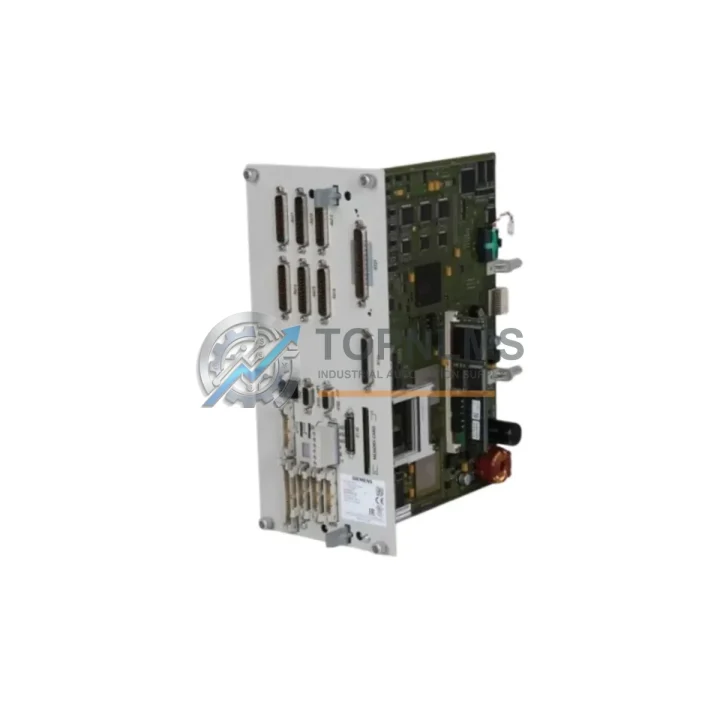

Siemens 6ES7646-0BC20-0AA0 Ruggedized PCU Module for Harsh Environments

The Siemens 6ES7646-0BC20-0AA0 is a SINUMERIK Panel Control Unit (PCU) engineered for continuous, uninterrupted operation in the most demanding industrial environments. Designed as the computational and interface backbone of Siemens SINUMERIK CNC systems, this PCU module delivers exceptional processing stability, robust EMI shielding, and wide-range environmental tolerance — making it the preferred choice for machine tool builders, system integrators, and maintenance engineers operating in high-temperature, high-vibration, or electrically noisy production facilities.

Built to Siemens’ stringent industrial-grade standards, the 6ES7646-0BC20-0AA0 integrates seamlessly with SINUMERIK 840D sl and 828D control architectures, providing the processing power and I/O coordination required for precision multi-axis CNC machining, turning, grinding, and milling operations. Its fanless thermal design and conformal-coated PCB ensure reliable performance even in environments with airborne particulates, metalworking coolant mist, and fluctuating ambient temperatures — conditions that routinely compromise lesser control hardware.

Rugged Specifications Table

Comprehensive Protection Solutions

In a fully integrated SINUMERIK CNC control cabinet, the 6ES7646-0BC20-0AA0 PCU does not operate in isolation — it anchors a tightly coordinated ecosystem of control and protection hardware. The PCU interfaces directly with the SINUMERIK OP 010 or OP 015 operator panels, providing the human-machine interface layer through which operators monitor axis positions, spindle loads, and alarm states in real time. Downstream, the NCU (Numerical Control Unit) — such as the SINUMERIK NCU 720.3 PN — handles interpolation and drive coordination, communicating with the PCU over a high-speed internal bus.

Drive-level protection is managed by Siemens SINAMICS S120 drive modules, which regulate spindle and feed axis motors while feeding status data back to the PCU for centralized diagnostics. The SINAMICS S120 Booksize power modules and motor modules are engineered to tolerate the same harsh electrical environments as the PCU, with integrated DC link protection and regenerative braking capability that prevents voltage spikes from propagating into the control network.

For I/O expansion and field-level signal acquisition, the SINUMERIK system relies on SIMATIC ET 200SP distributed I/O modules connected via PROFINET, allowing the PCU to monitor safety interlocks, door guards, emergency-stop circuits, and coolant flow sensors across the machine envelope. Safety-rated signals are processed through Siemens SIMATIC S7-1500F safety PLCs or F-DI/F-DO safety I/O modules, ensuring SIL 2 / PLe compliance for guarding and axis-hold functions.

Power quality at the cabinet level is maintained by Siemens SITOP PSU8600 modular power supplies, which deliver regulated 24 VDC to the PCU, NCU, and I/O racks with built-in buffer modules that sustain operation through brief mains interruptions — a critical feature in continuous production environments where an unplanned shutdown can result in scrapped workpieces or spindle crashes. Communication integrity between the PCU and plant-level SCADA or MES systems is ensured through SCALANCE X industrial Ethernet switches, which provide managed, EMI-hardened network switching within the control cabinet.

Application in Critical Infrastructure

The Siemens 6ES7646-0BC20-0AA0 PCU is deployed across a broad spectrum of critical industrial sectors where control system uptime is non-negotiable. In the automotive and heavy manufacturing sector, this PCU governs multi-axis machining centers producing engine blocks, transmission housings, and structural components — environments characterized by continuous three-shift operation, high coolant exposure, and significant floor vibration from adjacent presses and transfer lines.

In aerospace component manufacturing, the 6ES7646-0BC20-0AA0 supports 5-axis CNC machining of titanium and aluminum structural parts, where thermal stability of the control unit directly influences dimensional accuracy and surface finish quality. Any control hardware instability in this context translates directly into non-conforming parts and costly rework.

Within the energy and power generation sector — including wind turbine nacelle component machining and nuclear plant maintenance tooling — the PCU’s EMI resilience is paramount. High-voltage switching equipment, large transformer banks, and variable-frequency drives generate substantial electromagnetic interference that can corrupt position feedback signals and cause axis faults in less robust control hardware.

In mining and mineral processing facilities, where ambient temperatures can swing dramatically between surface and underground environments, and where airborne silica dust and diesel particulates are constant hazards, the 6ES7646-0BC20-0AA0’s sealed enclosure design and wide operating temperature range make it the reliable choice for drill rig control systems and ore processing equipment.

For oil and gas upstream and midstream operations — including offshore platform equipment and pipeline compressor station control panels — the PCU’s compliance with international EMC and environmental standards ensures it meets the baseline requirements for hazardous area adjacent installations, supporting safe and continuous process control in environments where equipment failure carries both financial and safety consequences.

Security & Quality FAQ

Q1: What warranty coverage is provided with the Siemens 6ES7646-0BC20-0AA0?
Every 6ES7646-0BC20-0AA0 unit supplied by TOPNLMS is backed by a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. If a unit fails within the warranty period, we provide prompt replacement or repair support to minimize your downtime. Our warranty terms are straightforward, with no hidden exclusions for industrial use environments.

Q2: How is each unit tested before shipment?
All units undergo a comprehensive pre-shipment functional verification process at our facility in Xiamen, China. This includes power-on testing, interface connectivity checks (USB, Ethernet, display outputs), and visual inspection for physical integrity. Units that do not pass our quality gate are quarantined and not dispatched. A test report is available upon request for critical procurement applications.

Q3: Is the 6ES7646-0BC20-0AA0 compatible with my existing SINUMERIK system?
The 6ES7646-0BC20-0AA0 is designed for integration with SINUMERIK 840D sl and compatible SINUMERIK operator panel families. Compatibility depends on your specific NCU firmware version and operator panel model. We recommend confirming your system’s NCU type and software version before ordering. Our technical team can assist with compatibility verification — contact us at [email protected] with your system configuration details.

Q4: Can TOPNLMS support long-term or repeat supply of this module?
Yes. TOPNLMS maintains dedicated inventory of high-demand SINUMERIK and SIMATIC spare parts to support ongoing maintenance and production continuity programs. For OEMs, system integrators, and plant maintenance teams requiring scheduled or blanket purchase orders, we offer priority stock reservation and lead-time commitments. Contact our sales team to discuss your annual volume requirements and establish a supply agreement tailored to your maintenance schedule.
