Siemens 6ES7590-0BH00-0AA0 Ruggedized Bus Module for Harsh Environments

Product Overview

Siemens 6ES7590-0BH00-0AA0 Ruggedized Bus Module for Harsh Environments

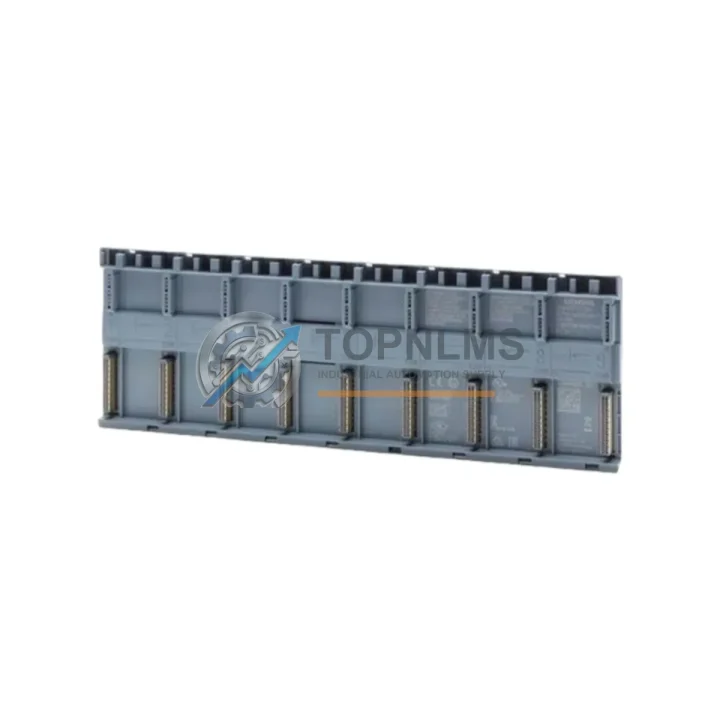

The Siemens 6ES7590-0BH00-0AA0 is a SIMATIC S7-1500 system bus module engineered for continuous, fault-tolerant operation in the most demanding industrial environments. Designed to connect CPU modules, interface modules, and I/O modules on the S7-1500 backplane rail, this component forms the structural and communicative backbone of mission-critical control architectures. Whether deployed in high-temperature foundries, moisture-laden water treatment facilities, dust-heavy mining operations, or vibration-intensive heavy manufacturing lines, the 6ES7590-0BH00-0AA0 delivers the electrical integrity and mechanical stability that modern industrial safety standards demand.

Industrial automation systems are only as reliable as their weakest interconnect. The 6ES7590-0BH00-0AA0 eliminates that vulnerability by providing a robust, low-impedance system bus path that maintains signal fidelity even under sustained electromagnetic interference (EMI), voltage transients, and mechanical shock. Its precision-engineered connector interface ensures consistent contact resistance across thousands of insertion cycles — a critical factor in facilities where planned maintenance windows are measured in hours per year.

Rugged Specifications Table

Comprehensive Protection Solutions

The 6ES7590-0BH00-0AA0 does not operate in isolation — it is the connective tissue of a broader S7-1500 control system architecture. In a typical high-availability control cabinet, this bus module works in concert with the Siemens CPU 1516-3 PN/DP, which handles real-time program execution and PROFINET communication. Paired with the 6ES7521-1BL00-0AB0 digital input module and the 6ES7522-1BL01-0AB0 digital output module, the system bus ensures deterministic I/O response times even under heavy scan-cycle loads.

For analog process control — common in oil refinery temperature loops or chemical dosing systems — the 6ES7531-7NF10-0AB0 analog input module connects seamlessly via the same backplane bus, delivering 16-channel, high-resolution measurement with galvanic isolation. In distributed architectures, the 6ES7155-5AA00-0AB0 ET 200MP interface module extends the S7-1500 backplane bus over PROFINET to remote I/O stations, maintaining the same rugged bus integrity across cabinet boundaries.

Power integrity is equally critical. The Siemens 6EP1333-3BA10 SITOP PSU100S 24 V DC power supply provides the stable, filtered DC rail that the S7-1500 system bus depends on for noise-free operation. In environments with significant harmonic distortion or voltage sag — such as those near large variable frequency drives (VFDs) or motor starters — a clean power supply upstream of the backplane is non-negotiable. The 6ES7590-0BH00-0AA0 is designed to tolerate residual ripple within SIMATIC specifications, but pairing it with a quality SITOP supply maximizes mean time between failures (MTBF).

Safety-rated applications benefit from integrating the Siemens 6ES7326-1BK02-0AB0 F-DI digital safety input module on the same backplane. This allows the PLC safety program to monitor emergency stop circuits, light curtains, and safety door interlocks through the same bus infrastructure — simplifying cabinet wiring and reducing potential failure points. Communication modules such as the 6GK7543-1AX00-0XE0 PROFINET CP module can also be mounted on the bus rail, enabling secure, high-speed Ethernet connectivity to SCADA systems and MES platforms without additional external wiring.

Application in Critical Infrastructure

The 6ES7590-0BH00-0AA0 has established a proven track record across the most demanding sectors of critical infrastructure. In upstream oil and gas operations, S7-1500 systems equipped with this bus module control wellhead safety shutdown valves, compressor sequencing, and pipeline pressure regulation — applications where a single bus fault can trigger a full-plant emergency stop. The module’s ATEX Zone 2 certification makes it suitable for installation in control rooms adjacent to potentially explosive atmospheres, provided the enclosure meets the required protection class.

In coal and hard-rock mining, the combination of pervasive coal dust, high ambient humidity, and constant mechanical vibration from blasting and heavy haulage creates an exceptionally hostile environment for electronics. The S7-1500 backplane system, anchored by the 6ES7590-0BH00-0AA0, is routinely deployed in mine ventilation control, conveyor belt management, and hoisting system automation — where the bus module’s vibration-rated connectors prevent the intermittent contact faults that can cause nuisance trips or, worse, undetected control failures.

Power generation and grid-connected substations represent another core application domain. Here, the S7-1500 system manages turbine governor control, transformer protection relay coordination, and automatic voltage regulation. The bus module’s EMC-hardened design ensures that the high-frequency switching noise generated by power electronics does not corrupt the backplane communication between the CPU and I/O modules.

Water and wastewater treatment plants operate continuously, often with minimal on-site technical staff. The 6ES7590-0BH00-0AA0 supports long-term, unattended operation in pump station control panels, where condensation, chemical vapors, and temperature cycling are daily realities. Its wide storage temperature range and humidity tolerance make it an ideal spare part to stock on-site, ensuring rapid replacement without waiting for international logistics.

In steel and aluminum smelting, the bus module withstands the intense radiated heat and electromagnetic fields generated by induction furnaces and arc furnaces. Mounted in thermally managed control cabinets with forced-air cooling, the 6ES7590-0BH00-0AA0 maintains bus integrity at sustained ambient temperatures that would degrade lesser components, protecting the investment in the broader S7-1500 control system.

Security & Quality FAQ

Q1: What warranty coverage is provided with the 6ES7590-0BH00-0AA0?
Every unit supplied by TOPNLMS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed promptly, with replacement units dispatched within 3–5 business days of fault confirmation. We maintain dedicated stock of S7-1500 series modules to support warranty exchanges without extended lead times.

Q2: How is each unit tested before shipment?
All 6ES7590-0BH00-0AA0 modules undergo pre-shipment functional verification, including visual inspection for connector pin integrity, mechanical rail engagement testing, and electrical continuity checks on the bus interface contacts. Units that do not pass inspection are quarantined and not offered for sale. A test report is available upon request for customers with incoming quality control requirements.

Q3: Is this module compatible with all S7-1500 CPU variants and firmware versions?
The 6ES7590-0BH00-0AA0 is a passive backplane bus segment and is mechanically and electrically compatible with all current SIMATIC S7-1500 CPU modules, including the standard, F-series (failsafe), T-series (technology), and R/H redundancy variants. It does not contain firmware and is not subject to firmware compatibility constraints. Compatibility with ET 200MP distributed I/O systems is also confirmed.

Q4: Can TOPNLMS support long-term supply and emergency replacement needs?
Yes. TOPNLMS maintains a dedicated inventory of SIMATIC S7-1500 series components, including the 6ES7590-0BH00-0AA0, to support both planned maintenance programs and emergency breakdown situations. We offer expedited shipping to minimize plant downtime. For customers managing large installed bases, we recommend establishing a consignment or blanket order arrangement to guarantee availability. Contact our technical sales team at [email protected] or +86 18359293191 to discuss your supply continuity requirements.
