Siemens 6ES7521-1BL00-0AB0 Replacement for S7-1500

Product Overview

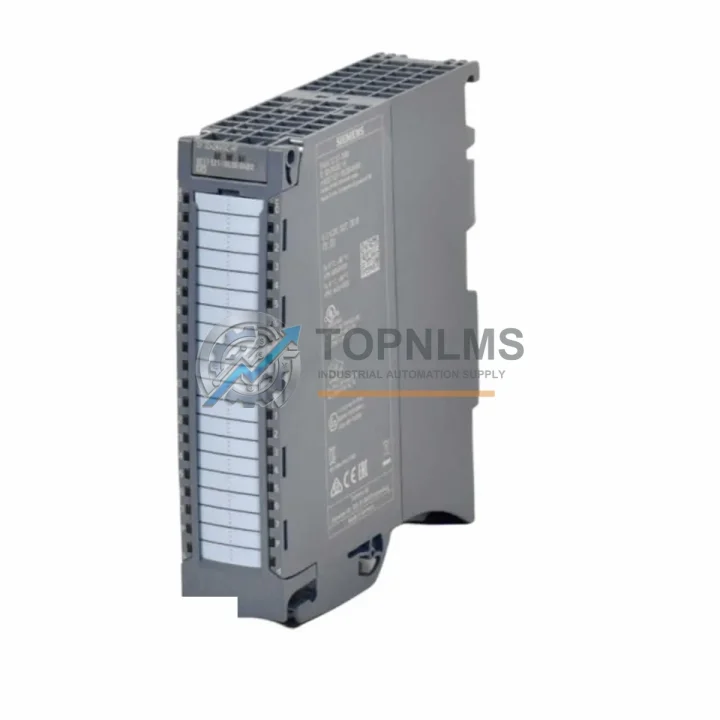

Siemens 6ES7521-1BL00-0AB0 Replacement for S7-1500: Seamless Transition & Compatible Upgrade

Migrating from an aging S7-300, S7-400, or an earlier S7-1500 configuration to a current-generation digital input architecture is one of the most common modernization tasks in industrial control system engineering. The Siemens 6ES7521-1BL00-0AB0 — the SM521 32DI 24VDC module within the S7-1500 platform — is a high-density digital input module designed to replace legacy I/O hardware while preserving field wiring integrity, rack geometry, and PLC program logic with minimal rework.

For facilities running S7-300 SM321 series modules such as the 6ES7321-1BL00-0AA0 (32DI 24VDC) or the 6ES7321-1EL00-0AA0, the transition to the 6ES7521-1BL00-0AB0 requires careful attention to terminal block compatibility and backplane bus architecture. The S7-1500 uses a U-connector backplane system rather than the S7-300’s bus connector approach, meaning the rack or mounting rail must be updated to an S7-1500 mounting rail. However, field wiring at the 40-pin front connector level can often be re-terminated with minimal modification, significantly reducing commissioning time on the plant floor.

When planning a retrofit from S7-400 I/O — for example, replacing an SM421 6ES7421-1BL01-0AA0 — engineers should note that the 6ES7521-1BL00-0AB0 integrates directly into the TIA Portal V15.1 or later engineering environment, enabling hardware configuration migration via the “copy and paste” function between CPU families. This eliminates the need to rebuild I/O address tables from scratch, a critical time-saving measure during planned maintenance windows.

The module supports PROFINET-based distributed I/O when paired with an ET 200MP interface module such as the IM155-5 PN ST (6ES7155-5AA00-0AB0), making it equally suitable for decentralized cabinet installations where the CPU — typically a CPU 1515-2 PN (6ES7515-2AM02-0AB0) or CPU 1516-3 PN/DP (6ES7516-3AN02-0AB0) — is located remotely from the field I/O enclosure. This distributed architecture is particularly valuable in large-scale process plants, water treatment facilities, and automotive assembly lines where control cabinets are spread across multiple zones.

From a physical installation standpoint, the 6ES7521-1BL00-0AB0 mounts on the standard S7-1500 DIN rail system and occupies a single slot on the S7-1500 or ET 200MP rack. Its 35 mm DIN rail compatibility means it fits within standard 19-inch control cabinet panels without modification to existing enclosure layouts. The module draws 24VDC from the system power supply — compatible with the PM 70W 120/230VAC (6EP1333-4BA00) or the PS 25W 24VDC (6EP1332-4BA00) — and does not require a separate field-side power supply for the input circuits, simplifying cabinet wiring and reducing component count.

For sites currently operating with third-party or legacy I/O systems — including Allen-Bradley 1756 ControlLogix I/O, Schneider Electric Modicon M340 discrete input cards, or ABB AC500 digital input modules — a gateway-based migration strategy is recommended. In such cases, the 6ES7521-1BL00-0AB0 is deployed alongside a SIMATIC S7-1500 CM PtP (6ES7540-1AD00-0AA0) or a PROFIBUS DP master module to bridge legacy field devices during the phased cutover period, allowing production to continue while the new S7-1500 architecture is validated.

Programming migration is handled entirely within TIA Portal. Existing STL, LAD, or FBD programs from STEP 7 Classic (S7-300/400) can be imported and automatically converted, with the hardware configuration updated to reflect the new 6ES7521-1BL00-0AB0 module address. Input byte addresses are reassigned within the hardware configuration editor, and the diagnostic buffer integration — a native feature of the SM521 series — provides real-time channel-level fault detection that was unavailable in many legacy S7-300 configurations.

Procurement teams should note that the 6ES7521-1BL00-0AB0 is an active catalog item with standard lead times from authorized distributors. TOPNLMS maintains verified stock with pre-shipment functional testing, ensuring each unit is confirmed operational before dispatch. All units are supplied with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete S7-1500 migration around the 6ES7521-1BL00-0AB0 typically involves several companion components. The front connector 6ES7592-1AM00-0XB0 (40-pin push-in spring terminal) is required for field wiring termination and is ordered separately from the module itself — a detail frequently overlooked during initial BOM preparation. For distributed I/O deployments, the ET 200MP interface module IM155-5 PN ST (6ES7155-5AA00-0AB0) serves as the PROFINET head station, allowing the SM521 module to operate remotely from the CPU rack without any change to the PLC program’s I/O addressing structure.

Power supply selection is equally important. The SIMATIC PM 70W (6EP1333-4BA00) provides system power for the S7-1500 CPU and I/O modules, while a separate load power supply PS 25W 24VDC (6EP1332-4BA00) can be used to feed the 24VDC field input circuits. For applications requiring electrical isolation between the control system and field devices, a SITOP PSU100S 24VDC/10A (6EP1334-2BA20) power supply with integrated diagnostics is recommended.

Communication module requirements depend on the legacy field bus. Sites retaining PROFIBUS DP field devices will need a CM DP (6ES7541-1AD00-0AB0) to maintain connectivity with existing PROFIBUS slaves during and after migration. For serial point-to-point legacy devices, the CM PtP RS422/485 (6ES7540-1AD00-0AA0) provides backward-compatible serial communication. HMI integration is typically handled via a SIMATIC TP700 Comfort Panel (6AV2124-0GC01-0AX0) or a KTP700 Basic (6AV2123-2GB03-0AX0), both of which connect natively to the S7-1500 CPU over PROFINET and require no additional communication drivers.

Finally, for on-site commissioning and program download, a standard PROFINET patch cable and a PC running TIA Portal with the appropriate license are sufficient — no dedicated programming cable (such as the legacy PC Adapter USB) is required for S7-1500, as the CPU’s integrated PROFINET port handles all programming and diagnostic communication directly.

Retrofit Guidance FAQ

Q: Can I reuse my existing S7-300 field wiring when installing the 6ES7521-1BL00-0AB0?
A: In most cases, yes. The 6ES7521-1BL00-0AB0 uses a 40-pin front connector with the same terminal count as the S7-300 SM321. Field cables can typically be re-terminated onto the new S7-1500 front connector (6ES7592-1AM00-0XB0) without re-routing. Verify terminal numbering against the S7-1500 SM521 wiring diagram, as pin assignments may differ slightly from the S7-300 layout.

Q: Do I need to rewrite my PLC program when migrating from S7-300 to S7-1500?
A: Not entirely. TIA Portal includes a migration tool that imports STEP 7 Classic projects and converts LAD, FBD, and STL blocks. I/O addresses must be remapped in the hardware configuration, but the logic structure is preserved. Thorough simulation and FAT testing in TIA Portal before site installation is strongly recommended.

Q: Is the 6ES7521-1BL00-0AB0 compatible with PROFIBUS DP networks?
A: The SM521 module itself communicates over the S7-1500 backplane bus. PROFIBUS DP connectivity to the CPU or ET 200MP head station is provided via a dedicated CM DP communication module. The module’s input data is then accessible to PROFIBUS DP master systems through the CPU’s communication interface.

Q: What is the physical space requirement for the 6ES7521-1BL00-0AB0 in a control cabinet?
A: The module occupies one slot on the S7-1500 or ET 200MP mounting rail. Module width is 35 mm. With the front connector attached, depth clearance of approximately 130 mm from the DIN rail surface is required. Ensure the cabinet door provides sufficient clearance for front connector insertion and cable routing.

Q: Can the 6ES7521-1BL00-0AB0 replace an S7-400 SM421 digital input module?
A: Yes, as a functional replacement in a new S7-1500 rack. The S7-400 SM421 cannot be physically installed in an S7-1500 rack, so a full rack migration is required. The channel count (32DI) matches, and TIA Portal’s migration assistant supports S7-400 to S7-1500 project conversion.

Q: How are spare parts and backup modules managed for the 6ES7521-1BL00-0AB0?
A: The S7-1500 supports hot-swappable module replacement without CPU restart when the system is configured for module replacement during operation. Spare modules should be stored in anti-static packaging at ambient temperature. TOPNLMS recommends maintaining at least one spare SM521 module per 10 installed units for critical production lines.

Warranty Assurance

Every 6ES7521-1BL00-0AB0 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes a pre-shipment functional test verifying power-on self-test completion, channel integrity across all 32 digital inputs, and backplane bus communication readiness. Units that do not pass functional verification are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit dispatch within 3 business days of confirmed fault diagnosis. Customers are required to return the defective unit within 30 days of receiving the replacement. Warranty coverage includes manufacturing defects, component failures, and functional non-conformance under normal operating conditions (24VDC supply, ambient temperature 0–60°C, non-condensing humidity). Physical damage, incorrect installation, or operation outside specified parameters are excluded from warranty coverage.

For urgent replacement requirements — including unplanned downtime situations — TOPNLMS offers expedited shipping from Xiamen, China, with DHL Express and FedEx International Priority options available at checkout. Estimated transit times to major industrial hubs in Southeast Asia, the Middle East, and Europe range from 3 to 7 business days depending on destination and customs clearance.

Post-sale technical support is available via email at [email protected] and by phone at +86 18359293191 during business hours (CST, Monday–Saturday). Our technical team can assist with TIA Portal hardware configuration, wiring verification, and compatibility confirmation for your specific system architecture.
