Siemens 6ES7512-1CK01-0AB0 Replacement for S7-1500: Seamless Transition & Compatible Upgrade

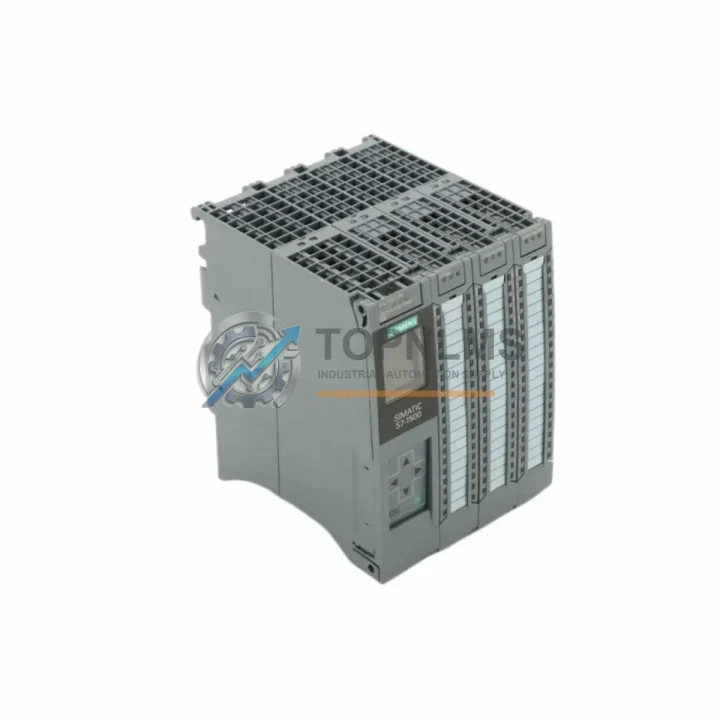

The Siemens 6ES7512-1CK01-0AB0 is the CPU 1512C-1 PN compact controller within the SIMATIC S7-1500 platform — a high-performance, integrated PLC designed for mid-range to advanced automation tasks. As legacy S7-300 and S7-400 systems reach end-of-life and spare parts become increasingly scarce, the 6ES7512-1CK01-0AB0 represents the most direct and cost-effective migration path for engineers managing brownfield upgrades, production line modernization, or emergency replacements of discontinued controllers.

This CPU integrates 32 digital inputs, 32 digital outputs, 5 analog inputs, and 2 analog outputs directly on-board, eliminating the need for additional I/O expansion modules in many standard retrofit scenarios. Its dual PROFINET interfaces support MRP (Media Redundancy Protocol) ring topologies, making it a natural fit for plants already running PROFINET-based field devices, distributed I/O, and HMI panels. Engineers migrating from older CPUs such as the CPU 315-2 PN/DP or CPU 317-2 PN/DP will find that the 6ES7512-1CK01-0AB0 supports structured program migration via TIA Portal’s migration wizard, significantly reducing re-engineering time.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration to the 6ES7512-1CK01-0AB0 rarely involves the CPU alone. In most brownfield projects, the surrounding system components must be evaluated and often replaced or adapted in parallel. When decommissioning an S7-300 rack, the existing SM 321 / SM 322 digital I/O signal modules and SM 331 / SM 332 analog I/O modules are typically retired, as the S7-1500 platform uses a new ET 200MP or ET 200SP distributed I/O architecture. For plants that need to retain field wiring, a SIMATIC ET 200SP distributed I/O station connected via PROFINET can replicate the original I/O mapping with minimal rewiring at the field terminal level.

The power supply must also be upgraded: the legacy PS 307 10A used in S7-300 systems is not compatible with the S7-1500 rail. A PM 70W 120/230VAC (6EP1332-4BA00) or the higher-capacity PM 190W is required to power the new CPU and any co-mounted interface modules. If the control cabinet retains PROFIBUS DP field devices — such as older drives, valve terminals, or remote I/O — a CM PtP / CM PROFIBUS DP communication module can be added to the S7-1500 rack to maintain backward protocol compatibility during a phased migration, avoiding the need to replace all field devices simultaneously.

For programming and commissioning, a SIMATIC programming cable (USB-MPI/DP adapter or standard Ethernet) connects TIA Portal directly to the CPU’s PROFINET port — no proprietary adapter is required. Engineers working on multi-axis motion or drive integration will find that the 6ES7512-1CK01-0AB0 supports SINAMICS G120 / S120 drive series via PROFINET with PROFIdrive profile, enabling seamless drive parameter migration from existing STEP 7 drive configurations. HMI panels such as the SIMATIC KTP700 Basic or KTP900 Basic can be connected directly to the CPU’s PROFINET port and re-commissioned in TIA Portal alongside the controller program, preserving screen layouts and tag mappings with minimal rework.

Retrofit Guidance FAQ

Q: Can I reuse existing field wiring when replacing an S7-300 CPU with the 6ES7512-1CK01-0AB0?
A: The field wiring at the sensor/actuator level is generally reusable. However, the terminal block connectors on S7-300 signal modules are not physically compatible with S7-1500 I/O modules. For the on-board I/O of the 1512C-1 PN, a front connector adapter is required. For distributed I/O via ET 200SP or ET 200MP, standard screw or push-in terminals accept existing 0.5–2.5 mm² conductors without modification.

Q: Do I need to rewrite my entire PLC program?
A: Not necessarily. TIA Portal includes a migration tool that converts STEP 7 Classic (v5.x) projects to TIA Portal format. LAD, FBD, and STL blocks are largely compatible, though some system functions (SFCs/SFBs) have S7-1500 equivalents that require manual remapping. Structured programs with modular FB/FC architecture migrate most cleanly.

Q: Is PROFIBUS DP still supported?
A: The 6ES7512-1CK01-0AB0 does not have a native PROFIBUS DP port. To retain PROFIBUS DP field devices, add a CM DP (PROFIBUS DP communication module) to the S7-1500 rack. This allows the CPU to act as a PROFIBUS DP master, maintaining connectivity to existing remote I/O, drives, and instrumentation on the PROFIBUS network.

Q: What are the physical space requirements in the control cabinet?
A: The CPU 1512C-1 PN mounts on a standard S7-1500 mounting rail (available in 160 mm, 245 mm, 482 mm, and 530 mm lengths). The CPU itself is 70 mm wide. Compared to a fully expanded S7-300 rack with multiple signal modules, the compact integrated I/O of the 1512C-1 PN can significantly reduce the total footprint, often freeing 1–2 DIN rail rows in the cabinet.

Q: What communication protocols does the 6ES7512-1CK01-0AB0 support?
A: The CPU supports PROFINET IO (IRT and RT), OPC UA (server), Modbus TCP (via library), S7 communication, and open TCP/IP and UDP communication. This broad protocol support makes it compatible with most modern SCADA, MES, and IIoT gateway systems without additional hardware.

Warranty Assurance

Every 6ES7512-1CK01-0AB0 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each unit undergoes functional verification including power-on testing, firmware version confirmation, and physical inspection for connector integrity and label authenticity. Units are shipped in original or equivalent anti-static protective packaging with full documentation.

In the event of a confirmed defect within the warranty period, TOPNLMS provides replacement dispatch or credit resolution within agreed lead times. Our technical support team is available to assist with installation queries, firmware compatibility questions, and commissioning guidance. We maintain stock of the 6ES7512-1CK01-0AB0 and related S7-1500 components to support urgent replacement requirements with short lead times.

For volume procurement, project-based reservations, or expedited shipping requirements, contact our sales team directly. We serve industrial end-users, system integrators, OEMs, and MRO procurement teams globally.
