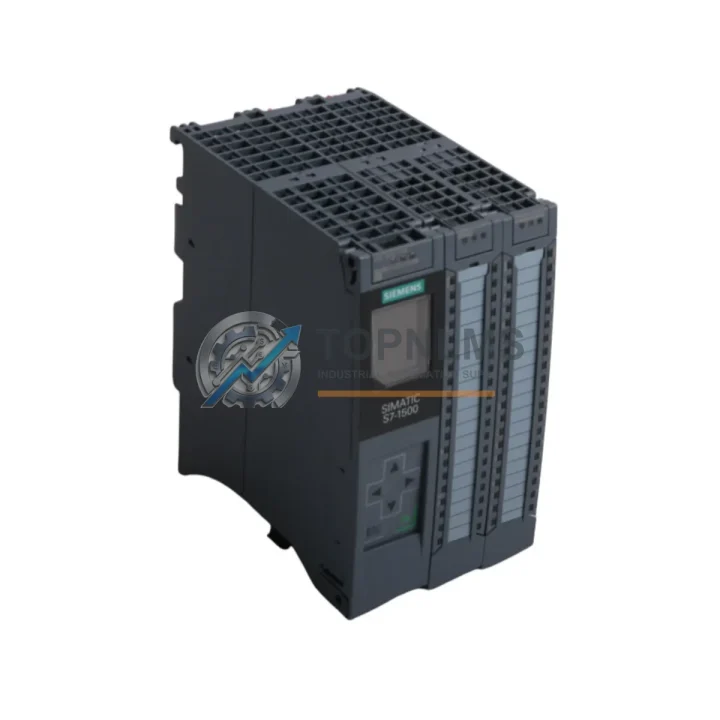

Siemens 6ES7511-1CK01-0AB0 Ruggedized CPU Module for Harsh Environments

Product Overview

Siemens 6ES7511-1CK01-0AB0 Ruggedized CPU Module for Harsh Environments

The Siemens 6ES7511-1CK01-0AB0 CPU 1511-1 PN is a high-performance central processing unit from the SIMATIC S7-1500 series, engineered to deliver exceptional industrial resilience across the most demanding operational environments. Designed for continuous-duty applications in heavy industry, process automation, and critical infrastructure, this CPU module maintains deterministic control performance even under conditions of extreme temperature variation, high ambient humidity, persistent mechanical vibration, airborne particulate contamination, and intense electromagnetic interference. Its robust hardware architecture and Siemens-certified firmware make it a cornerstone component for engineers who cannot afford unplanned downtime.

At TOPNLMS, every 6ES7511-1CK01-0AB0 unit is sourced through verified supply channels, subjected to pre-shipment functional testing, and backed by a 12-month replacement warranty — giving procurement teams and maintenance engineers the confidence to specify this module for both new installations and emergency spare-part replenishment.

Rugged Specifications Table

Comprehensive Protection Solutions

The 6ES7511-1CK01-0AB0 does not operate in isolation — it is the command core of a tightly integrated control architecture. In a typical S7-1500 panel build, the CPU 1511-1 PN interfaces directly with the Siemens PS 25W 24VDC system power supply (6ES7505-0KA00-0AB0) and the load power supply PM 70W 120/230VAC (6EP1333-4BA00), ensuring stable, conditioned DC power even when upstream mains voltage fluctuates due to heavy motor loads or generator switching in off-grid industrial sites.

For distributed field I/O, the CPU communicates over PROFINET with ET 200SP remote I/O stations equipped with digital input modules such as the 6ES7131-6BF01-0BA0 and analog output modules like the 6ES7135-6HD00-0BA1, extending the control reach across large plant floors without signal degradation. In high-vibration environments such as compressor rooms or mining conveyors, the ET 200MP I/O system (6ES7155-5AA00-0AB0 interface module) provides a mechanically robust alternative with wider module spacing and reinforced backplane connectors.

Safety-critical applications pair the CPU 1511-1 PN with the SIMATIC S7-1500 F-CPU variants or dedicated safety I/O modules such as the 6ES7136-6DC00-0CA0 F-DQ module, enabling SIL 2 / SIL 3 certified safety loops for emergency shutdown systems, burner management, and rotating machinery protection. Communication integrity across the plant network is maintained through the Siemens SCALANCE X208 managed industrial Ethernet switch, which provides PROFINET-optimized traffic prioritization and port-level diagnostics accessible directly from TIA Portal.

For legacy system integration, the CP 1543-1 communications processor (6GK7543-1AX00-0XE0) adds secure VPN tunneling and firewall capabilities, allowing the S7-1500 to communicate with SCADA systems or MES platforms without exposing the control network. Terminal modules such as the Siemens BU type A0 (6ES7193-6BP20-0DC0) and shield connection elements complete the wiring infrastructure, ensuring low-impedance grounding that is essential for EMC compliance in electrically noisy environments like arc furnaces or variable-frequency drive (VFD) panels.

Application in Critical Infrastructure

In petroleum refining and upstream oil & gas operations, the 6ES7511-1CK01-0AB0 is deployed in wellhead control panels, pipeline SCADA outstations, and compressor anti-surge control systems where ambient temperatures can swing from sub-zero winter conditions to +55 °C summer heat inside uninsulated equipment shelters. Its deterministic PROFINET cycle time — configurable down to 250 µs — ensures that pressure and flow control loops respond within the tight tolerances required by API and IEC process safety standards.

In underground coal and hard-rock mining, the CPU module is installed in explosion-proof enclosures (Ex e / Ex d rated cabinets) to control conveyor belt drives, ventilation fan starters, and dewatering pump stations. The module’s resistance to conducted and radiated EMI — validated against EN 61000-6-2 — prevents spurious trips caused by the high-frequency switching noise generated by large VFDs driving multi-hundred-kilowatt motors.

Power generation facilities, including thermal, hydroelectric, and wind farm substations, rely on the S7-1500 platform for turbine governor control, transformer protection relay interfacing, and auxiliary systems automation. The CPU 1511-1 PN’s integrated web server and SNMP diagnostics allow remote condition monitoring without requiring a dedicated HMI panel at every switchgear bay, reducing both capital cost and maintenance overhead.

Municipal water treatment and wastewater plants benefit from the module’s long-term firmware stability and Siemens’ commitment to spare-part availability — a critical procurement consideration for public utilities operating on 20–30 year asset lifecycles. TOPNLMS maintains buffer stock of the 6ES7511-1CK01-0AB0 specifically to support emergency replacement scenarios where a failed CPU would otherwise halt an entire treatment train.

In steel mills and aluminum smelters, the CPU controls rolling mill drives, ladle transfer cars, and fume extraction systems in environments where ambient particulate levels, radiated heat from molten metal, and ground-loop EMI would compromise lesser hardware. The module’s conformal-coated PCB (standard on S7-1500 CPUs) provides an additional barrier against corrosive sulfur compounds and conductive dust ingress.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all hardware defects and functional failures under normal operating conditions. If a unit fails within the warranty period, TOPNLMS will ship a verified replacement unit within 5 business days upon receipt of the defective module. No restocking fees apply to warranty returns. Contact [email protected] with your order number and a brief fault description to initiate a claim.

Q2: How is each unit tested before shipment?
Every 6ES7511-1CK01-0AB0 unit undergoes a pre-shipment power-on functional test using a SIMATIC S7-1500 test rack. The test verifies CPU boot sequence, PROFINET port link negotiation, memory self-test completion, and firmware version integrity. Units that fail any test stage are quarantined and not shipped. A test report is available upon request for critical infrastructure procurement.

Q3: Is this module compatible with my existing TIA Portal project and S7-1500 rack?
The 6ES7511-1CK01-0AB0 (firmware V2.1 and above) is fully compatible with TIA Portal V13 SP1 and all later versions. It fits any standard S7-1500 mounting rail and is electrically and mechanically interchangeable with earlier CPU 1511-1 PN hardware revisions. If you are replacing a unit with a different firmware baseline, TOPNLMS technical support can advise on firmware update procedures at no additional charge.

Q4: Can TOPNLMS guarantee long-term supply for ongoing maintenance contracts?
Yes. TOPNLMS maintains a dedicated inventory buffer for high-demand S7-1500 CPU modules and works with multiple verified distribution channels to ensure continuity of supply. For customers with multi-year maintenance contracts or framework agreements, we offer reserved stock arrangements and priority allocation. Contact our sales team to discuss volume pricing and supply assurance terms.
