Siemens 6ES7422-1BH11-0AA0 SM422 Replacement for S7-400

Product Overview

Siemens 6ES7422-1BH11-0AA0 SM422 Replacement for S7-400: Smooth Migration & Legacy System Upgrade

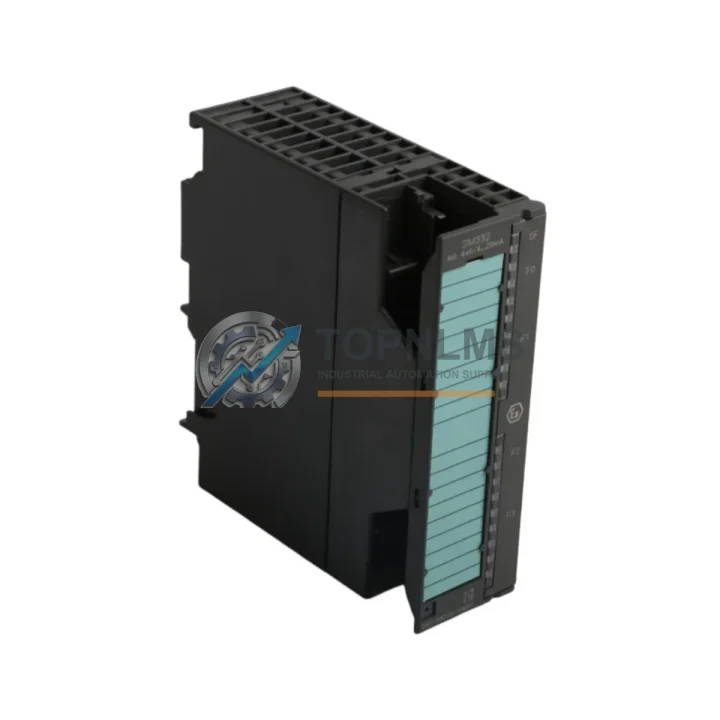

The Siemens 6ES7422-1BH11-0AA0 is a 16-channel, 24 VDC digital output module belonging to the SM422 family within the SIMATIC S7-400 programmable logic controller platform. As industrial facilities worldwide accelerate the retirement of aging S7-400 racks and migrate toward modern distributed control architectures, this module remains one of the most frequently requested replacement and upgrade components in the field. Whether your plant is executing a like-for-like spare-parts swap to extend the life of an existing S7-400 system, or conducting a phased migration from an older S5-115U or S5-135U installation, the 6ES7422-1BH11-0AA0 provides a verified, drop-in compatible solution that minimises engineering rework and unplanned downtime.

Each output channel is rated at 24 VDC with a maximum load current of 2 A per channel and 8 A per group, making it suitable for driving solenoid valves, contactors, indicator lamps, and relay coils in process and discrete manufacturing environments. The module slots directly into any standard S7-400 UR1, UR2, or ER1/ER2 rack without mechanical modification. Front connector wiring is fully compatible with the existing 48-pin front connector used across the SM422 range, so field cables terminated on the original module can be transferred to the replacement unit without re-labelling or re-termination — a critical advantage when minimising maintenance windows in continuous-process plants.

From a software perspective, the module is recognised natively by STEP 7 V5.x and TIA Portal V13 and above when operating in S7-400 compatibility mode. No hardware configuration changes are required in the project; the existing hardware catalogue entry for the SM422 DO 16×DC24V/2A is retained, and the I/O address mapping remains identical. This means that PLC programs developed for predecessor modules such as the 6ES7422-1BL00-0AA0 (32-channel variant) or earlier SM422 revisions can continue to run without modification, protecting the investment in validated control logic.

For sites migrating from third-party DCS platforms or from relay-logic panels, the 6ES7422-1BH11-0AA0 integrates into the S7-400 backplane via the K-Bus internal communication interface, which operates independently of the fieldbus layer. The CPU — whether a 6ES7414-2XK05-0AB0, a 6ES7416-3XR05-0AB0, or a redundant 6ES7417-4HT14-0AB0 — communicates with the output module transparently, regardless of whether the plant fieldbus is PROFIBUS-DP, PROFINET, or a legacy MPI network. This architecture simplifies migration projects where the fieldbus topology is being modernised in parallel with the I/O hardware refresh.

Power supply compatibility is another key consideration during retrofit projects. The SM422 module draws its load voltage from the front connector rather than from the backplane, which means the existing 24 VDC field power distribution — typically sourced from a SITOP PSU300S or equivalent DIN-rail power supply — can be retained without resizing. The backplane supply current drawn from the S7-400 power supply module (such as the 6ES7407-0KA02-0AA0 PS407 10A) is minimal, ensuring that adding or replacing this module does not require a power budget recalculation in most standard rack configurations.

Physical installation follows the standard S7-400 module insertion procedure: power down the rack segment, align the module with the slot guides, engage the backplane connector, and secure the locking lever. The front connector — which retains all field wiring — is then transferred from the old module and clicked into place. Total swap time in a well-documented installation is typically under 15 minutes, making this one of the lowest-risk hardware interventions available in the S7-400 ecosystem.

For engineers managing broader system upgrades, the 6ES7422-1BH11-0AA0 is commonly deployed alongside complementary components including the SM421 6ES7421-1BL01-0AA0 32-channel digital input module, the SM431 6ES7431-1KF20-0AB0 analog input module, and the SM432 6ES7432-1HF00-0AB0 analog output module to complete a full I/O refresh within a single rack. Communication module upgrades — such as replacing an aging CP443-1 6GK7443-1EX30-0XE0 with a current-generation PROFINET CP — are frequently scheduled in the same maintenance window to consolidate downtime. Signal conditioning requirements between legacy field devices and the new I/O layer are addressed using SITRANS signal isolators or equivalent DIN-rail isolator barriers, which preserve 4–20 mA loop integrity without rewiring field instruments.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful S7-400 I/O migration rarely involves a single module in isolation. The 6ES7422-1BH11-0AA0 is most effective when deployed as part of a coordinated upgrade that addresses the full signal chain. Digital inputs are typically refreshed simultaneously using the SM421 6ES7421-1BL01-0AA0 32-channel 24 VDC input module, which shares the same rack slot form factor and front connector standard. Where analog process signals are involved — pressure transmitters, temperature loops, or flow meters — the SM431 6ES7431-1KF20-0AB0 8-channel analog input module and the SM432 6ES7432-1HF00-0AB0 8-channel analog output module provide a matched upgrade path within the same S7-400 rack.

CPU-level upgrades are often staged in parallel: a site running a legacy 6ES7414-2XG04-0AB0 CPU 414-2 DP may migrate to a 6ES7416-3XR05-0AB0 CPU 416-3 PN/DP to gain PROFINET capability while retaining the existing PROFIBUS field device network. The backplane power budget for such a configuration is managed by the PS407 6ES7407-0KA02-0AA0 10 A power supply module, which supports the full UR2 rack complement without derating. For sites requiring redundant power, a second PS407 in a redundant configuration provides N+1 availability without additional rack space.

Programming cable access during commissioning is facilitated by the PC Adapter USB A2 6ES7972-0CB20-0XA0, which provides a direct MPI/PROFIBUS connection from a standard laptop to the CPU without requiring a dedicated PROFIBUS card. For PROFINET-based CPUs, standard RJ45 Ethernet connectivity is used directly. Signal isolation between legacy 4–20 mA field loops and the new I/O layer is handled by DIN-rail mounted isolators, preserving loop accuracy and protecting the new module inputs from field-side transients during the cutover period.

Retrofit Guidance FAQ

Q: Can I transfer the existing front connector wiring directly to the replacement module?
A: Yes. The 48-pin front connector used on the 6ES7422-1BH11-0AA0 is mechanically and electrically identical to all SM422 series modules. Remove the connector from the old module, insert it into the replacement, and verify terminal assignments against your as-built drawings before energising.

Q: Do I need to modify the STEP 7 or TIA Portal hardware configuration?
A: No modification is required for a like-for-like replacement. The hardware catalogue entry and I/O address assignment remain unchanged. If upgrading from a different SM422 variant (e.g., 32-channel to 16-channel), the hardware configuration and program logic must be reviewed and updated accordingly.

Q: Is the module compatible with PROFIBUS-DP and PROFINET CPUs?
A: Yes. The SM422 communicates via the S7-400 K-Bus backplane and is independent of the CPU’s fieldbus interface. It operates identically with PROFIBUS-DP, PROFINET, and MPI-connected CPUs.

Q: What is the physical installation clearance requirement?
A: The module occupies one standard S7-400 slot (width: 25 mm). No additional clearance beyond the standard rack slot spacing is required. Ensure the rack is de-energised before insertion and that the front connector locking mechanism is fully engaged after installation.

Q: How should I handle the cutover to minimise process disruption?
A: Plan the swap during a scheduled maintenance window. Pre-test the replacement module on a bench rack if available. Document all terminal assignments before disconnecting the front connector. After installation, perform an output force test from the PLC programming interface before returning the process to automatic mode.

Warranty Assurance

Every 6ES7422-1BH11-0AA0 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes functional verification including backplane communication check, output channel continuity test, and visual inspection for connector integrity and label accuracy. Units are packed in anti-static shielding with foam cushioning to prevent transit damage.

In the event of a confirmed defect within the warranty period, TOPNLMS will arrange a replacement unit or issue a full refund — whichever the customer prefers — with no return shipping cost to the buyer. Our technical support team is available to assist with installation queries, compatibility verification, and commissioning guidance. Typical order processing time is 1–3 business days, with express shipping options available for urgent breakdown situations. We ship globally from our Xiamen warehouse, with tracking provided for all shipments.

For procurement teams requiring documentation, we can provide a product datasheet, test report, and packing list upon request. Volume pricing is available for orders of 5 units or more. Contact us to discuss framework agreements for ongoing spare-parts supply.
