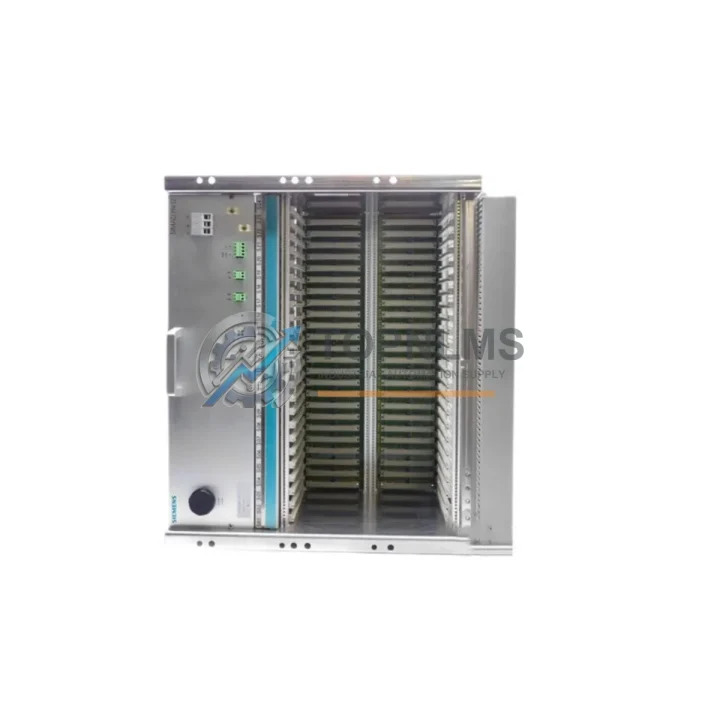

Siemens 6ES7414-3EM07-0AB0 CPU 414-3 EM Upgrade Solution

Product Overview

Siemens 6ES7414-3EM07-0AB0 CPU 414-3 EM Upgrade Solution: Seamless Transition from Legacy S7-400 Systems

The Siemens 6ES7414-3EM07-0AB0 is a high-performance CPU 414-3 EM module within the SIMATIC S7-400 platform, designed for demanding process automation, manufacturing execution, and distributed control applications. As legacy S7-400 installations approach end-of-life or face discontinued spare-part availability, engineering teams are increasingly required to plan structured migration paths that preserve existing wiring infrastructure, retain proven control logic, and minimize production downtime. This replacement and upgrade solution addresses exactly those requirements — providing a verified, tested, and immediately shippable 6ES7414-3EM07-0AB0 unit backed by a 12-month warranty.

The CPU 414-3 EM variant integrates three communication interfaces: a PROFIBUS-DP master/slave port, an MPI interface, and a PROFINET IO controller interface. This multi-protocol architecture makes it a direct functional replacement for earlier CPU 414 variants such as the 6ES7414-3XJ00-0AB0 and 6ES7414-2XK05-0AB0, which lacked integrated PROFINET capability. Plants currently running those discontinued models can migrate to the 6ES7414-3EM07-0AB0 without redesigning the rack layout, since the module occupies the same UR1 or UR2 universal rack slot and uses the same 24 VDC backplane power supply architecture supported by the PS 407 power supply modules (e.g., 6ES7407-0KA02-0AA0).

Wiring compatibility is a primary concern during any CPU swap. The 6ES7414-3EM07-0AB0 retains the standard MPI/DP sub-D9 connector pinout, meaning existing PROFIBUS segment cables, bus connectors, and termination resistors require no modification. Field devices connected via ET 200M distributed I/O stations, IM 153-2 interface modules, or ET 200S islands continue to operate without re-addressing, provided the DP master system configuration is re-downloaded from STEP 7 or TIA Portal after the swap. For sites using PROFINET, existing Industrial Ethernet switches and RJ45 patch cables connect directly to the integrated PN interface on the 6ES7414-3EM07-0AB0, eliminating the need for a separate CP 443-1 communications processor in many retrofit scenarios.

Program migration from older CPU 414 firmware versions is straightforward. Projects developed in SIMATIC STEP 7 V5.x are fully compatible and can be downloaded directly after hardware configuration update. Teams working in TIA Portal V16 or later can import existing STEP 7 projects using the project migration wizard, retaining all OB, FB, FC, and DB structures. The expanded working memory of the 6ES7414-3EM07-0AB0 — 4 MB work memory for code and data — accommodates growth in program size that often accompanies modernization projects, such as adding diagnostic blocks, energy monitoring routines, or OPC UA data publishing via the integrated PROFINET interface.

Physical installation follows the standard S7-400 rack mounting procedure. The module slides into any slot on a UR1 (9-slot) or UR2 (18-slot) rack and is secured with the integrated front panel latch. No additional mounting hardware is required. The front connector for the MPI/DP interface accepts the standard 9-pin PROFIBUS connector used across the S7-400 family, including connections to SIMATIC HMI panels such as the TP1500 Comfort or MP377 Multi Panel for operator interface continuity. Existing HMI projects linked via MPI or PROFIBUS DP require only a station address re-confirmation after CPU replacement.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful CPU 414-3 EM migration rarely involves the CPU alone. In practice, the upgrade project touches several interconnected components within the same control cabinet or rack assembly. The PS 407 10A power supply module (6ES7407-0KA02-0AA0) is the standard backplane power source for the S7-400 rack and should be inspected or replaced in parallel with the CPU swap, particularly in installations where the power supply has been in continuous service for more than five years. Alongside the power supply, the IM 460-0 send interface module and its paired IM 461-0 receive interface module handle inter-rack expansion bus communication and must be confirmed compatible with the updated CPU firmware before commissioning.

For distributed I/O continuity, ET 200M stations equipped with IM 153-2 interface modules remain fully supported on the PROFIBUS-DP master system of the 6ES7414-3EM07-0AB0. Individual SM 321 digital input modules and SM 322 digital output modules within those ET 200M stations require no hardware changes. Similarly, SM 331 analog input modules and SM 332 analog output modules retain their existing wiring and channel assignments. Where the retrofit introduces PROFINET segments, ET 200SP distributed I/O stations can be added to the integrated PN interface of the new CPU, expanding I/O capacity without consuming additional rack slots.

Communication infrastructure upgrades often accompany CPU modernization. Sites replacing a CP 443-1 Advanced communications processor with the integrated PROFINET port of the 6ES7414-3EM07-0AB0 free up a rack slot that can be repurposed for additional I/O or a CP 443-5 Extended PROFIBUS module if multi-master DP configurations are required. Programming and diagnostic access during commissioning is typically performed via a PC adapter USB or SIMATIC NET CP 5711 USB adapter connected to the MPI port, tools that remain unchanged from the legacy installation workflow.

For operator interface continuity, existing SIMATIC HMI panels connected via MPI or PROFIBUS DP — including TP700 Comfort, TP1200 Comfort, or legacy MP277 panels — continue to communicate with the replacement CPU without HMI project modifications, provided the MPI station address is preserved. Where the modernization roadmap includes HMI upgrades, the integrated PROFINET interface of the 6ES7414-3EM07-0AB0 supports direct Ethernet-based HMI connections, enabling a phased transition to newer Unified Comfort Panel hardware without disrupting the CPU replacement timeline.

Retrofit Guidance FAQ

Q: Can I replace the old CPU 414 without rewiring the PROFIBUS segment?
A: Yes. The 6ES7414-3EM07-0AB0 uses the same Sub-D9 PROFIBUS connector and DP master/slave protocol stack. Existing bus cables, connectors, and termination resistors are reused without modification. Only a hardware configuration download from STEP 7 or TIA Portal is required after the swap.

Q: Do I need to modify my STEP 7 program?
A: In most cases, no. Existing OB, FB, FC, and DB blocks compile and run on the new CPU without changes. You will need to update the hardware configuration (HW Config) to reflect the new CPU order number and re-download the system data. Extended memory capacity may allow you to add new diagnostic or communication blocks without restructuring existing logic.

Q: Is the PROFINET interface on the 6ES7414-3EM07-0AB0 a full IO Controller?
A: Yes. The integrated PN interface operates as a PROFINET IO Controller, supporting RT (Real-Time) and IRT (Isochronous Real-Time) communication modes. It can manage ET 200SP, ET 200MP, and other PROFINET IO devices directly, eliminating the need for a separate CP 443-1 in standard configurations.

Q: Will the replacement CPU fit in my existing UR1 or UR2 rack without mechanical modification?
A: Yes. The 6ES7414-3EM07-0AB0 occupies a single slot in any UR1 (9-slot) or UR2 (18-slot) universal rack. No additional mounting brackets, spacers, or cabinet modifications are required. The backplane bus connector engages with the standard S7-400 rack bus interface.

Q: What happens to my existing MPI-connected HMI panels during the CPU swap?
A: MPI-connected HMI panels (TP, MP, or OP series) will lose communication during the CPU swap and re-download period, typically 15–30 minutes. Once the new CPU is online and the hardware configuration is downloaded, MPI communication resumes automatically without HMI project changes, provided the MPI station address is unchanged.

Q: How do I handle the transition if my plant cannot tolerate extended downtime?
A: We recommend pre-staging the replacement 6ES7414-3EM07-0AB0 with the updated hardware configuration and program loaded offline before the maintenance window. This reduces on-site swap time to the physical module exchange and a single online download, typically achievable within a planned 2-hour maintenance window.

Warranty Assurance

Every 6ES7414-3EM07-0AB0 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes a multi-point functional inspection including power-on self-test verification, communication interface continuity check, and firmware version confirmation. Units are packaged in anti-static protective enclosures with foam cushioning to prevent transit damage.

In the event of a confirmed hardware defect within the warranty period, TOPNLMS provides a replacement unit dispatch within 3 business days of fault confirmation. Our technical support team is available to assist with installation verification, communication diagnostics, and commissioning guidance via email at [email protected] or by phone at +86 18359293191. Warranty coverage applies to manufacturing defects and component failures under normal operating conditions and does not cover damage resulting from incorrect installation, overvoltage events, or unauthorized modification.

Stock is maintained in our Xiamen warehouse for immediate dispatch. Standard international shipping lead time is 3–7 business days depending on destination. Express courier options are available for urgent replacement requirements. All units are invoiced with full documentation including packing list, test report, and certificate of conformity upon request.
