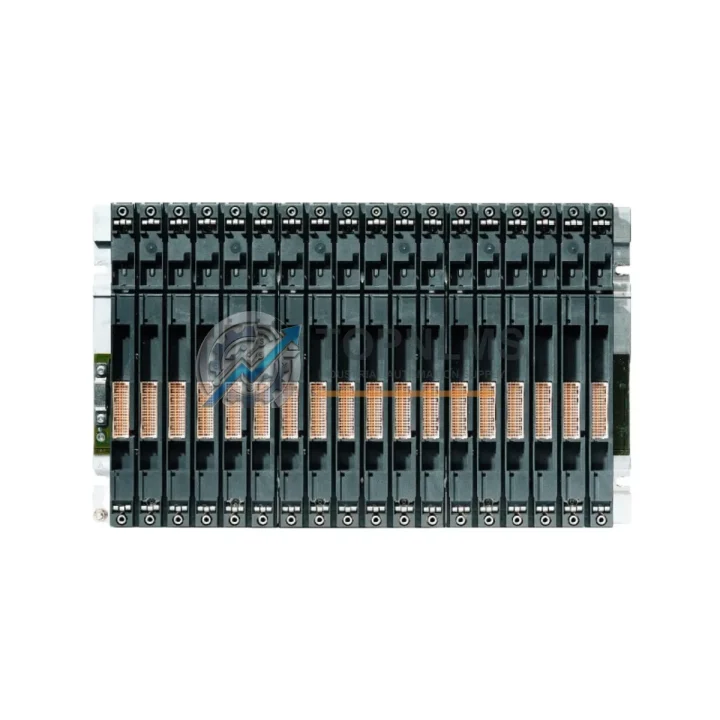

Siemens 6ES7403-1TA01-0AA0 Original Industrial Spare S7-400 Compatible

Product Overview

Siemens 6ES7403-1TA01-0AA0 Original Industrial Spare S7-400 Compatible: System Stability and Industrial Spare Maintenance Value

In modern industrial automation environments, the reliability of a PLC control system is the backbone of uninterrupted production. The Siemens 6ES7403-1TA01-0AA0 — the IM 461-1 Expansion Rack Receive Interface Module for the SIMATIC S7-400 platform — is a mission-critical component that enables seamless communication between the central rack and expansion racks in large-scale distributed control architectures. When this module fails or degrades, the entire expansion rack loses connectivity to the CPU, triggering system faults, unplanned shutdowns, and costly production downtime.

Sourced as an original Siemens spare part, the 6ES7403-1TA01-0AA0 is designed for direct drop-in replacement in existing S7-400 installations without firmware reconfiguration or hardware modification. Whether you are managing a petrochemical plant, an automotive assembly line, a power generation facility, or a water treatment station, maintaining a verified stock of this interface module is a fundamental element of any responsible preventive maintenance program.

At TOPNLMS, every unit undergoes pre-shipment functional verification. Each 6ES7403-1TA01-0AA0 is backed by a 12-month warranty, ensuring your procurement team can plan with confidence and your maintenance engineers can replace with certainty.

Critical Technical Specs

Preventive Maintenance Strategy

A scheduled maintenance inspection of an S7-400 control cabinet should never be limited to a single module. The 6ES7403-1TA01-0AA0 operates as part of an interconnected system, and its performance is directly influenced by the health of adjacent components. When planning a rack-level inspection or replacement cycle, maintenance engineers should simultaneously evaluate the condition of the IM 460-1 send interface module (6ES7460-1BA01-0AA0) installed in the central rack — a failed send module will render the receive interface inoperative regardless of its own condition.

The PS 407 power supply modules (such as the 6ES7407-0DA02-0AA0 or 6ES7407-0KA02-0AA0) feeding the expansion rack should be inspected for output voltage stability and capacitor aging, as voltage fluctuations are a leading cause of interface module communication errors. Alongside the power supply, the S7-400 CPU modules — including the CPU 414-2 (6ES7414-2XK05-0AB0) or CPU 416-2 (6ES7416-2XN05-0AB0) — should be checked for firmware integrity and diagnostic buffer entries that may indicate intermittent rack communication faults.

Within the expansion rack itself, all installed digital input/output modules (such as SM 421 and SM 422 series) and analog I/O modules (SM 431 and SM 432 series) should be inspected for terminal corrosion, loose wiring, and LED fault indicators. The signal cables and PROFIBUS DP connectors linking field devices to the rack should be tested for continuity and shielding integrity — degraded cables are a frequent but overlooked source of intermittent faults in aging S7-400 installations.

For facilities running mixed automation architectures, it is also advisable to inspect CP 443-1 or CP 443-5 communication processor modules during the same maintenance window, as network-layer faults can mask underlying rack interface issues. Signal isolators and surge protection modules on analog input channels should be verified for calibration drift, particularly in environments with heavy motor loads or frequent switching transients. Finally, the front connectors and terminal blocks on all I/O modules should be re-torqued and inspected for oxidation — a low-cost step that significantly extends the service life of the entire rack assembly.

Maintaining a pre-stocked spare of the 6ES7403-1TA01-0AA0 alongside its paired send module and at least one spare power supply module reduces mean time to repair (MTTR) from days to under one hour — a critical advantage in high-availability production environments where every hour of downtime carries measurable financial impact.

Strategic Replacement Solutions

The SIMATIC S7-400 platform has been in active industrial deployment for over two decades, and many facilities continue to operate first- and second-generation hardware that is no longer available through standard distribution channels. The 6ES7403-1TA01-0AA0 is a direct replacement for earlier IM 461 variants, maintaining full backplane bus compatibility and requiring no changes to the existing rack configuration, STEP 7 project, or hardware catalog entries.

For maintenance teams managing legacy S7-400 systems scheduled for eventual migration to S7-1500 or TIA Portal-based architectures, sourcing original spare modules now is a cost-effective strategy to extend system life through the transition period without incurring the capital expenditure of a full platform upgrade. A single unplanned shutdown caused by an unavailable interface module can cost multiples of the spare part’s procurement price in lost production, emergency labor, and expedited freight.

TOPNLMS maintains inventory of original Siemens S7-400 spare modules to support rapid fulfillment for both planned maintenance cycles and emergency breakdown scenarios. All units are shipped with original packaging where available, and each shipment includes a pre-shipment test report confirming functional verification prior to dispatch.

Support FAQ

Q1: Is the 6ES7403-1TA01-0AA0 compatible with all S7-400 expansion racks?
The IM 461-1 is compatible with UR2, UR2-H, ER1, and ER2 expansion racks in the SIMATIC S7-400 system. It must be paired with a compatible send interface module (IM 460-0 or IM 460-1) installed in the central or segmented rack. Compatibility with specific CPU and rack combinations should be verified against the Siemens S7-400 hardware manual (A5E00850745).

Q2: What pre-shipment testing is performed on each unit?
Every 6ES7403-1TA01-0AA0 dispatched by TOPNLMS undergoes functional verification including backplane bus communication check, LED status confirmation, and visual inspection for physical damage. A test report is included with each shipment. Units that do not pass verification are not dispatched.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions as specified in the Siemens product datasheet. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed via email to [email protected] with the original order reference and a description of the fault.

Q4: How should I manage spare inventory for S7-400 interface modules?
For facilities with two or more S7-400 expansion racks, we recommend maintaining a minimum of one spare IM 461-1 receive module and one spare IM 460-x send module at all times. For critical production lines with zero-tolerance for downtime, a cold-standby spare rack pre-fitted with interface modules is the industry best practice. TOPNLMS can support bulk procurement and staged delivery schedules to align with your maintenance budget cycles.
