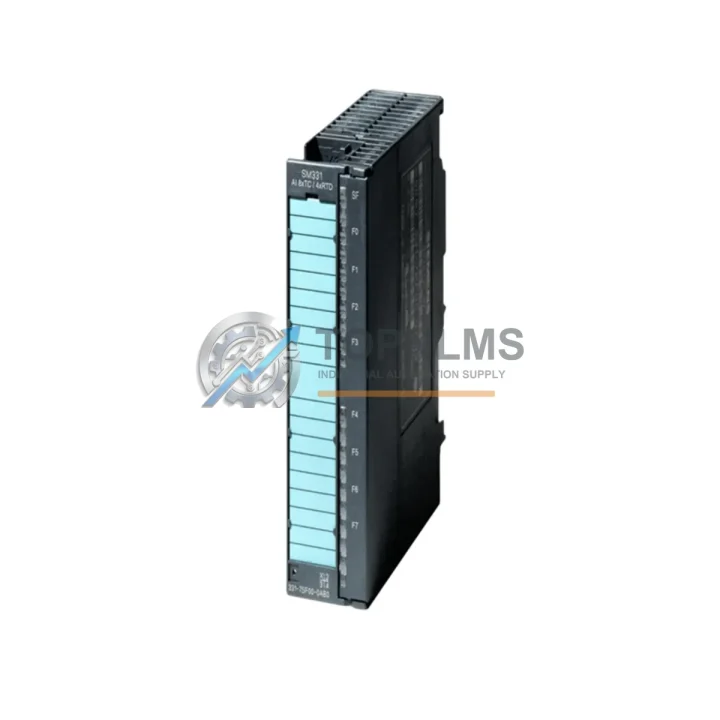

Siemens 6ES7331-7RD00-0AB0 Ruggedized Analog Input Module

Product Overview

Siemens 6ES7331-7RD00-0AB0 Ruggedized Analog Input Module for Harsh Industrial Environments

The Siemens 6ES7331-7RD00-0AB0 is a high-precision, ruggedized 8-channel analog input module belonging to the SM 331 series within the SIMATIC S7-300 programmable logic controller platform. Engineered to deliver reliable signal acquisition in the most demanding industrial conditions — including high-temperature furnace lines, high-humidity coastal processing plants, heavy-dust mining galleries, and high-vibration press or compressor environments — this module is a cornerstone component for engineers who cannot afford measurement drift or signal loss in critical control loops.

Designed to accept both RTD (Resistance Temperature Detector) and thermocouple (TC) sensor inputs across all 8 channels, the 6ES7331-7RD00-0AB0 provides galvanically isolated, high-resolution temperature and process-value acquisition. Its robust hardware design, combined with Siemens’ proven SIMATIC S7-300 backplane architecture, ensures stable operation even when subjected to electromagnetic interference (EMI) from adjacent variable frequency drives (VFDs), large motor starters, or high-current bus bars — conditions routinely encountered in steel mills, petrochemical refineries, and water treatment facilities.

Rugged Specifications Table

Comprehensive Protection Solutions

In a fully integrated SIMATIC S7-300 control system, the 6ES7331-7RD00-0AB0 analog input module operates in close coordination with a range of complementary modules and components to deliver end-to-end process protection and control reliability. The Siemens 6ES7321-1BL00-0AA0 SM 321 digital input module typically handles discrete field signals — limit switches, proximity sensors, and emergency stop contacts — while the 6ES7322-1BL00-0AA0 SM 322 digital output module drives actuators, solenoid valves, and motor contactors based on the CPU’s control logic.

For closed-loop control applications requiring analog output — such as modulating control valves or variable-speed pump references — the Siemens 6ES7332-5HD01-0AB0 SM 332 analog output module pairs directly with the 6ES7331-7RD00-0AB0 to form a complete analog I/O subsystem. The central processing unit, typically a Siemens 6ES7315-2EH14-0AB0 CPU 315-2 PN/DP or 6ES7317-2EK14-0AB0 CPU 317-2 PN/DP, orchestrates all module communication over the S7-300 backplane bus, executing PID loops, alarm management, and safety interlocks with deterministic cycle times.

Power integrity is maintained by the Siemens 6ES7307-1EA01-0AA0 PS 307 power supply module, which delivers regulated DC 24 V to the entire rack assembly — including the 6ES7331-7RD00-0AB0 — even under fluctuating mains conditions common in heavy industrial sites. For distributed I/O architectures extending across large plant floors, the Siemens 6ES7153-2BA02-0XB0 IM 153-2 interface module enables the SM 331 analog input module to operate as part of a PROFIBUS DP remote I/O station, eliminating long analog signal cable runs that are susceptible to noise pickup. In PROFINET-based installations, the 6ES7151-3BA23-0AB0 IM 151-3 PN interface module fulfills the same role over Ethernet infrastructure.

Safety-critical applications — such as burner management systems or emergency shutdown (ESD) loops — may integrate the Siemens 6ES7326-1BK02-0AB0 SM 326 F-DI fail-safe digital input module alongside the 6ES7331-7RD00-0AB0 to achieve SIL 2 or SIL 3 compliance under IEC 61511. Terminal connectivity is handled by Siemens 6ES7392-1AM00-0AA0 front connectors, which provide secure, vibration-resistant field wiring termination for all SM 300-series modules. Surge protection for incoming thermocouple and RTD field cables is best achieved with dedicated signal conditioners or surge arresters mounted on Phoenix Contact TRABTECH or equivalent DIN-rail terminal blocks within the same control cabinet.

Application in Critical Infrastructure

The Siemens 6ES7331-7RD00-0AB0 has established a strong track record across the most demanding sectors of critical infrastructure worldwide.

In oil and gas upstream and midstream operations, this module monitors wellhead temperatures, separator vessel temperatures, and pipeline fluid temperatures in real time, feeding data to SIMATIC S7-300 CPUs that execute safety interlock logic. Its galvanic isolation prevents ground loop interference — a persistent challenge when sensors are distributed across large metallic structures with differing ground potentials.

In coal and metal mining, the 6ES7331-7RD00-0AB0 is deployed in conveyor drive control panels and ventilation fan control systems, where it monitors motor winding temperatures via Pt100 RTD sensors. Its vibration resistance — validated to IEC 60068-2-6 — ensures measurement integrity even when the control panel is mounted near heavy crushing or screening equipment generating continuous mechanical shock.

In thermal power generation, the module acquires boiler tube temperatures, turbine bearing temperatures, and flue gas temperatures, providing the data backbone for combustion optimization and predictive maintenance algorithms. Its wide operating temperature range and high-resolution 15-bit conversion make it suitable for both low-range cryogenic measurements and high-range furnace thermocouple inputs within the same installation.

In municipal water and wastewater treatment, the 6ES7331-7RD00-0AB0 monitors process temperatures in biological reactors, sludge digesters, and UV disinfection systems. Its resistance to high-humidity environments — rated to 95% RH non-condensing — ensures reliable operation in pump stations and wet wells where condensation is a constant concern.

In metallurgical and steel production facilities, the module is integrated into continuous casting machine control systems and rolling mill automation, where it acquires mold cooling water temperatures and roll surface temperatures. The module’s EMC compliance ensures signal integrity despite the intense electromagnetic fields generated by large induction furnaces and high-current DC drives operating in the same facility.
