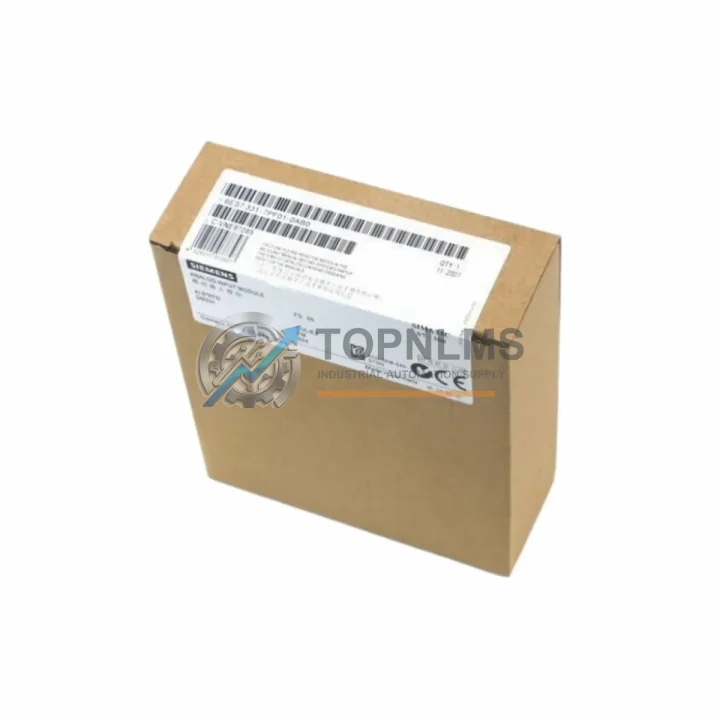

Siemens 6ES7331-7PF01-0AB0 Original Industrial Spare SM331

Product Overview

Siemens 6ES7331-7PF01-0AB0 Original Industrial Spare SM331: System Stability & Maintenance Value

The Siemens 6ES7331-7PF01-0AB0 is an original SM331 8-channel analog input module engineered for the SIMATIC S7-300 programmable logic controller platform. In industrial environments where process continuity is non-negotiable — from chemical plants and automotive assembly lines to water treatment facilities and power distribution substations — this module serves as a critical interface between field instrumentation and the PLC control layer. Sourced as a genuine Siemens spare, it ensures full compatibility with existing S7-300 racks, backplanes, and engineering configurations without requiring software re-parameterization or hardware adaptation.

Unplanned downtime caused by a failed analog input module can cascade rapidly across a production line. A single faulty channel misreading a 4–20 mA signal from a pressure transmitter or thermocouple can trigger false alarms, emergency shutdowns, or worse — silent process deviations that compromise product quality. Maintaining a verified stock of the 6ES7331-7PF01-0AB0 in your spare parts inventory is a proven strategy to reduce mean time to repair (MTTR) and protect production KPIs.

Critical Technical Specs

Preventive Maintenance Strategy

When scheduling a planned shutdown or responding to an unplanned fault on an S7-300 system, replacing the 6ES7331-7PF01-0AB0 in isolation rarely tells the full story. Experienced maintenance engineers know that analog input failures are often symptomatic of broader signal chain degradation. A comprehensive inspection should extend to the SM321 digital input modules (e.g., 6ES7321-1BL00-0AA0) sharing the same rack, as digital and analog I/O modules age in parallel under the same thermal and electrical stress conditions.

The PS307 power supply module (such as the 6ES7307-1EA01-0AA0) feeding the S7-300 rack deserves particular attention during any analog module replacement. A power supply operating outside its rated output tolerance — even marginally — can introduce noise into analog measurement circuits, producing erratic readings that mimic module failure. Verifying supply voltage stability before and after module swap is standard practice in precision process control environments.

Signal integrity between the 6ES7331-7PF01-0AB0 and field instruments depends heavily on the condition of front connector assemblies (6ES7392-1AM00-0AA0 or equivalent 40-pin screw-type connectors). Corroded or loose terminals are a leading cause of intermittent analog faults. During module replacement, inspect and if necessary replace the front connector to eliminate contact resistance as a variable.

For systems using thermocouples or RTDs, the SM331 temperature input variant (6ES7331-7KB02-0AB0) is a closely related module that may be installed in adjacent slots. Reviewing its calibration records and channel diagnostics during the same maintenance window prevents a second unplanned intervention within weeks. Similarly, SM332 analog output modules (e.g., 6ES7332-5HB01-0AB0) driving control valves or variable-speed drives should be tested for output accuracy, as analog output drift can mask upstream input module issues.

Communication continuity is equally critical. The CP343-1 Ethernet communication processor (6GK7343-1EX30-0XE0) or IM360/IM361 interface modules used in multi-rack S7-300 configurations should be inspected for firmware currency and connector integrity. A communication fault during a module hot-swap can corrupt the CPU’s I/O image table, requiring a full CPU restart — an avoidable risk with proper pre-maintenance checks.

Finally, SIMATIC S7-300 CPU modules (such as the CPU 315-2 DP, 6ES7315-2AH14-0AB0) that have been in continuous operation for more than five years should be evaluated for battery replacement and memory card integrity as part of the same maintenance cycle. Pairing analog module replacement with a CPU health check and a backup of the current program to a SIMATIC Memory Card (6ES7954-8LF03-0AA0) is a best practice that significantly reduces recovery time in the event of a subsequent CPU fault.

Strategic Replacement Solutions

The 6ES7331-7PF01-0AB0 is a direct replacement for earlier SM331 variants including the 6ES7331-7PF00-0AB0, sharing identical mechanical dimensions, slot assignment, and STEP 7 hardware configuration entries. This backward compatibility means maintenance teams can substitute the module without modifying the existing hardware configuration in STEP 7 or TIA Portal, preserving engineering hours and eliminating re-commissioning risk.

For facilities managing aging S7-300 infrastructure beyond its standard product lifecycle, stocking this module as a long-term spare is a cost-effective alternative to full system migration. The S7-300 platform remains widely deployed across global process industries, and original spare availability directly determines how long existing installations can be maintained economically. Procuring verified original modules — rather than counterfeit or refurbished alternatives — ensures that factory acceptance test (FAT) and site acceptance test (SAT) documentation remains valid and that insurance and regulatory compliance obligations are met.

Each unit shipped from TOPNLMS undergoes functional verification, visual inspection, and packaging integrity checks prior to dispatch. Orders are processed with full traceability documentation, and the 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Expedited shipping options are available to support emergency maintenance scenarios where production continuity cannot be deferred.

Support FAQ

Q1: Is the 6ES7331-7PF01-0AB0 compatible with all S7-300 CPU variants?
Yes. The SM331 module is compatible with all standard S7-300 CPUs including the CPU 312, 314, 315, 317, and 319 series. It installs into any standard S7-300 signal module slot and is configured via STEP 7 V5.x or TIA Portal with the standard SM331 hardware catalog entry. No special firmware or CPU version is required.

Q2: How do I verify the module is genuine before installation?
Genuine Siemens modules carry a holographic authenticity label on the housing and a traceable order number on the product label. Upon request, TOPNLMS provides shipment documentation including supplier traceability records. We recommend performing a STEP 7 module identification read-out after installation — genuine modules return the correct order number and firmware version via the diagnostic buffer.

Q3: What is covered under the 12-month warranty?
The warranty covers functional failures and manufacturing defects under normal industrial operating conditions as specified in the Siemens SM331 product manual. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside rated environmental parameters. Warranty claims are processed with return merchandise authorization (RMA) and include replacement or full refund at TOPNLMS’s discretion.

Q4: How many units should I stock for a multi-rack S7-300 installation?
Industry best practice for critical process applications recommends a minimum of one spare module per four installed units, or one spare per rack — whichever is greater. For installations with more than three SM331 modules, maintaining two units in stock eliminates single-point-of-failure risk in the spare parts inventory itself. TOPNLMS offers volume pricing for multi-unit orders to support strategic inventory planning.
