Siemens 6ES7322-5HF00-0AB0 S7-300 DO Module: Seamless Replacement & Upgrade Solution

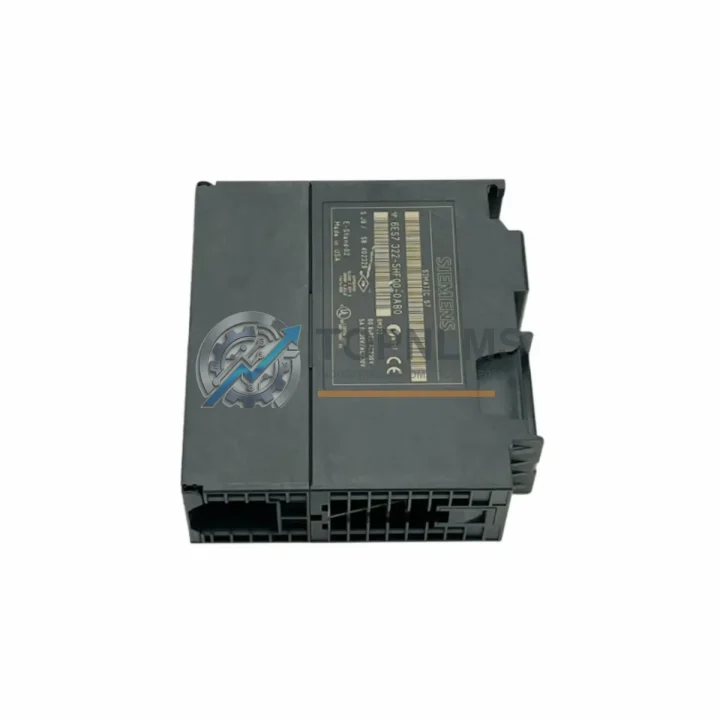

The Siemens 6ES7322-5HF00-0AB0 is a 16-channel, 24 VDC transistor digital output module designed for the SIMATIC S7-300 programmable logic controller platform. As legacy S7-300 systems approach end-of-life and spare parts become increasingly scarce, plant engineers and procurement teams are actively seeking verified replacement units and structured migration paths that minimize production downtime. TOPNLMS maintains ready stock of the 6ES7322-5HF00-0AB0 to support both emergency swap-outs and planned system modernization projects across manufacturing, energy, water treatment, and process automation industries.

Whether you are replacing a failed module on a running line, consolidating spare-part inventory, or executing a phased migration from an aging S7-300 rack to a more current control architecture, this module provides a fully compatible, drop-in solution that preserves your existing wiring harness, backplane connector, and STEP 7 or TIA Portal program logic without modification.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful S7-300 digital output module replacement rarely involves a single component in isolation. In practice, field engineers replacing the 6ES7322-5HF00-0AB0 frequently need to address the broader system context to ensure a clean, stable retrofit. The following components are commonly involved in the same migration or upgrade scope:

The front connector 6ES7392-1AJ00-0AA0 (20-pin screw-type) is the wiring interface between the module and field devices. If the existing connector shows signs of corrosion, loose terminals, or mechanical wear, replacing it alongside the output module eliminates a common source of intermittent faults after installation. The connector is retained on the cabinet wiring harness, so swapping it does not require re-labeling field cables.

For systems where the CPU module — such as a CPU 315-2 DP (6ES7315-2AH14-0AB0) or a CPU 314C-2 PN/DP (6ES7314-6EH04-0AB0) — is also approaching end-of-life or has accumulated high operating hours, a concurrent CPU replacement during the same maintenance window reduces future unplanned downtime. Both CPUs share the same S7-300 backplane and are fully compatible with the 6ES7322-5HF00-0AB0 output module.

Where the S7-300 rack communicates with field devices over PROFIBUS DP, the CP 342-5 communications processor (6GK7342-5DA02-0XE0) handles the PROFIBUS master function independently of the CPU, offloading communication overhead and maintaining deterministic cycle times even when the output module is hot-swapped during a maintenance window. Verifying CP firmware compatibility before the swap is recommended.

In installations where the S7-300 rack is being partially migrated toward an ET 200SP distributed I/O architecture, the IM 155-6 PN ST interface module (6ES7155-6AU01-0BN0) can be introduced to host new digital output modules — such as the DQ 16x24VDC/0.5A ST (6ES7132-6BH01-0BA0) — on a PROFINET segment while the legacy S7-300 CPU continues to manage the existing backplane modules during the transition period. This phased approach avoids a full cutover and keeps the line running.

Power supply integrity is critical when replacing output modules. The PS 307 5A power supply (6ES7307-1EA01-0AA0) provides regulated 24 VDC to the S7-300 rack and field devices. If the existing power supply is undersized or aging, verifying its load capacity against the full rack configuration — including the 6ES7322-5HF00-0AB0 and any newly added modules — prevents voltage sag that can cause spurious output switching or diagnostic alarms after the replacement.

For sites where the control cabinet also houses an HMI panel — such as a SIMATIC TP700 Comfort (6AV2124-0GC01-0AX0) or a KTP700 Basic (6AV2123-2GB03-0AX0) — connected to the S7-300 CPU via MPI or PROFINET, the HMI project should be verified against the updated hardware configuration after the module swap to confirm that any output status displays or alarm tags referencing the replaced module’s I/O addresses remain correctly mapped.

Finally, if the site maintains a SIMATIC S7-300 programming cable (PC Adapter USB A2, 6ES7972-0CB20-0XA0) for on-site STEP 7 access, having it available during the replacement allows immediate online diagnostics, force-table verification of output channels, and hardware configuration download without requiring a laptop with a pre-configured MPI interface — significantly reducing commissioning time on the shop floor.

Retrofit Guidance FAQ

Q: Do I need to rewire the cabinet when replacing the 6ES7322-5HF00-0AB0?
A: No. The existing 20-pin front connector (6ES7392-1AJ00-0AA0 or equivalent) detaches from the old module and clips directly onto the replacement unit. All field wiring remains connected to the front connector throughout the swap, eliminating the risk of miswiring during reinstallation.

Q: Will my existing STEP 7 or TIA Portal program run without modification?
A: Yes. The 6ES7322-5HF00-0AB0 uses the same hardware identifier and I/O address space as the original module. No program changes, symbol table edits, or hardware configuration downloads are required in most standard replacement scenarios. If the CPU detects a hardware mismatch alarm after insertion, a brief hardware configuration download from STEP 7 or TIA Portal clears it.

Q: Is this module compatible with PROFIBUS DP systems?
A: The 6ES7322-5HF00-0AB0 communicates via the S7-300 internal backplane bus and is transparent to the CPU’s PROFIBUS DP or MPI network. It does not require any PROFIBUS address configuration. PROFIBUS connectivity is managed by the CPU or CP module in the rack.

Q: What is the physical installation space requirement?
A: The module occupies a single standard S7-300 slot on any UR1, UR2, ER1, or ER2 rack. No additional DIN rail space or cabinet modification is required. The module dimensions are identical to all standard S7-300 signal modules.

Q: Can this module replace a relay output module in the same slot?
A: The 6ES7322-5HF00-0AB0 is a transistor (PNP sourcing) output module. If the original module was a relay output type (e.g., 6ES7322-1BH01-0AA0), the output load characteristics differ. Transistor outputs are suitable for DC loads only and switch faster than relay contacts. Verify that all connected field devices accept 24 VDC sourcing signals before substituting a relay module with this transistor variant.

Q: How do I verify output channel function after installation?
A: Use the STEP 7 or TIA Portal force table to individually activate each of the 16 output channels while monitoring the corresponding LED indicators on the module face and the field device response. This channel-by-channel verification confirms wiring integrity and module function before returning the system to automatic mode.

Warranty Assurance

Every 6ES7322-5HF00-0AB0 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes functional testing to verify output channel switching, backplane communication integrity, and LED diagnostic response. Units that do not pass testing are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund based on the customer’s preference and the nature of the fault. Our after-sales response target is within 24 business hours of claim submission. Warranty coverage applies to manufacturing defects and functional failures under normal operating conditions and does not cover physical damage caused by incorrect installation, overvoltage, or reverse polarity.

For procurement teams managing critical spare-part inventories, TOPNLMS offers batch order fulfillment with consolidated shipping documentation, including packing lists, commercial invoices, and certificates of conformity where required for customs clearance. Lead times for in-stock units are typically 3–7 business days for international shipments via DHL, FedEx, or UPS Express.

To place an order, request a quotation, or verify current stock availability for the 6ES7322-5HF00-0AB0 or related S7-300 components, contact our technical sales team directly.
