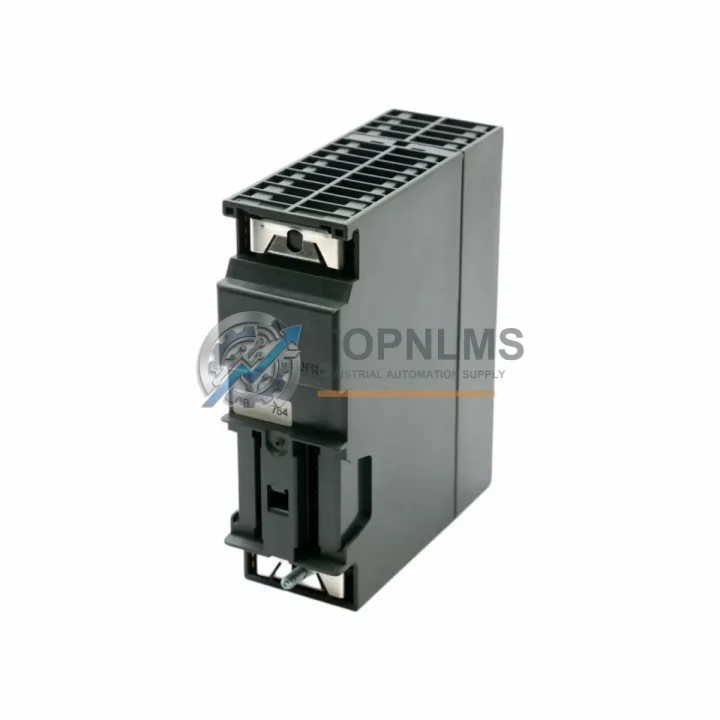

Siemens 6ES7322-1BP00-0AA0 Original Industrial Spare SM322 Compatible: System Stability & Industrial Spare Maintenance Value

The Siemens 6ES7322-1BP00-0AA0 is an original SIMATIC S7-300 SM322 series digital output module delivering 32 isolated 24VDC outputs in a compact DIN-rail form factor. For maintenance engineers managing aging S7-300 control systems, this module represents a critical line of defense against unplanned downtime. Whether you are executing a scheduled shutdown inspection, responding to an emergency fault, or building a strategic spare parts inventory, having a verified original 6ES7322-1BP00-0AA0 on the shelf is one of the most cost-effective decisions a plant can make.

In high-availability production environments — automotive assembly, food and beverage processing, chemical batch control, and discrete manufacturing — the S7-300 platform remains deeply embedded in legacy infrastructure. The SM322 32DO module drives actuators, solenoid valves, motor contactors, and indicator lamps across these installations. A single failed output channel can cascade into a full line stoppage. Sourcing a genuine replacement module in advance eliminates the critical-path delay that typically extends unplanned downtime from hours into days.

Critical Technical Specs Table

Preventive Maintenance Strategy

A disciplined preventive maintenance program for any S7-300 control cabinet goes well beyond replacing a single output module. When a 6ES7322-1BP00-0AA0 shows signs of channel failure — intermittent output, blown fuse indicators, or diagnostic buffer fault codes — experienced maintenance teams treat it as a trigger for a broader cabinet health audit.

Begin with the power supply. The Siemens PS307 (e.g., 6ES7307-1EA01-0AA0) provides the 24VDC rail that feeds the SM322 output loads. A degraded power supply with ripple or voltage sag will stress output transistors and shorten module life. Replacing the PS307 alongside the SM322 during a planned shutdown is a proven strategy to reset the maintenance clock on the entire power section.

Next, inspect the CPU module — typically a CPU 315-2DP (6ES7315-2AG10-0AB0) or similar — for battery backup status and firmware currency. A CPU with a depleted backup battery risks losing the program on the next power cycle, turning a simple module swap into a full system recovery event. Keeping a spare CPU or at minimum a spare memory card (6ES7953-8LF31-0AA0) in your parts cabinet is standard practice in facilities with long MTTR targets.

The SM321 digital input modules (e.g., 6ES7321-1BL00-0AA0, 32DI 24VDC) work in tandem with the SM322 outputs to form the core I/O layer of the S7-300 rack. During any output module replacement, technicians should verify input channel integrity on the corresponding SM321 modules — particularly on channels tied to feedback signals from the actuators driven by the SM322. Degraded input channels can mask output faults and complicate fault diagnosis.

Connector integrity is another overlooked failure point. The 40-pin front connector (6ES7392-1AM00-0AA0) that mates with the SM322 accumulates mechanical wear over repeated removal cycles. Inspecting connector pins for oxidation, bent contacts, or loose screw terminals during each maintenance window prevents intermittent faults that are notoriously difficult to reproduce under load. Keeping one or two spare front connectors in stock adds negligible cost but eliminates a common source of phantom faults.

For cabinets with analog I/O requirements alongside digital outputs, the SM332 analog output module (6ES7332-5HB01-0AB0) and SM331 analog input module (6ES7331-7KF02-0AB0) should be included in the periodic inspection checklist. Analog modules are sensitive to ground loops and EMI — conditions that often worsen as cable insulation ages in high-temperature environments. Calibration drift on analog channels can affect process quality long before a hard fault is logged.

Finally, for systems using PROFIBUS-DP communication, the CP 342-5 communication processor (6GK7342-5DA02-0XE0) and the associated PROFIBUS connectors and termination resistors deserve attention. A degraded bus terminator or a failing CP module can cause intermittent communication timeouts that manifest as sporadic output faults — often misdiagnosed as SM322 failures. Verifying bus topology and termination during planned maintenance prevents unnecessary module replacements.

Strategic Replacement Solutions

The 6ES7322-1BP00-0AA0 is a direct, plug-and-play replacement for any existing SM322 32DO 24VDC module installed in an S7-300 rack. No hardware configuration changes are required in STEP 7 or TIA Portal when replacing a like-for-like module — the CPU automatically recognizes the module at the same slot address, and the existing program continues to execute without modification.

For facilities managing the transition from S7-300 to S7-1500 or ET 200SP platforms, the SM322 32DO can serve as a bridge solution. Maintaining a pool of original S7-300 spare modules extends the operational life of legacy systems by 3–7 years, deferring capital expenditure on full system migration while keeping production lines running. This is particularly valuable in industries where control system validation and re-qualification carry significant regulatory overhead.

When sourcing replacement modules, the distinction between original and aftermarket parts carries real operational risk. Original Siemens modules undergo factory burn-in testing, carry traceable manufacturing data, and are covered by Siemens’ quality assurance processes. Each 6ES7322-1BP00-0AA0 shipped from TOPNLMS is tested for output channel continuity, isolation integrity, and bus communication before dispatch. This pre-shipment verification reduces the risk of installing a DOA module during a time-critical maintenance window.

Stocking one spare SM322 32DO module per production line — or per control cabinet in high-criticality applications — is the minimum recommended inventory posture. For facilities with more than five S7-300 racks, a centralized spare parts store with two to three SM322 units, combined with a documented module rotation policy, provides the optimal balance between inventory carrying cost and downtime risk.

Support FAQ

Q1: Is the 6ES7322-1BP00-0AA0 compatible with all S7-300 CPUs?
Yes. The SM322 32DO module is compatible with all standard S7-300 CPUs (CPU 312 through CPU 319) and with the ET 200M distributed I/O station using the IM 153 interface module. It occupies one slot in the S7-300 rack and is configured automatically by the CPU during startup. No special firmware or hardware revision matching is required for like-for-like replacement.

Q2: What pre-shipment testing is performed on each module?
Every 6ES7322-1BP00-0AA0 dispatched by TOPNLMS undergoes output channel continuity testing, optocoupler isolation verification, and backplane bus communication checks before packaging. Modules that fail any test parameter are quarantined and not shipped. A test record is retained for each unit. This process ensures that the module you receive is fully functional and ready for immediate installation.

Q3: How should I verify compatibility before installation in my existing S7-300 system?
Confirm the existing module’s order number (printed on the front label) matches 6ES7322-1BP00-0AA0. Check the hardware configuration in STEP 7 or TIA Portal to verify the slot assignment and module properties. No reconfiguration is needed for a direct replacement. If your system uses a modified hardware configuration with non-standard slot assignments, consult your STEP 7 project documentation before swapping the module.

Q4: What does the 12-month warranty cover, and what is the return process?
The 12-month warranty covers manufacturing defects, output channel failures, and bus communication faults under normal operating conditions. It does not cover damage caused by incorrect wiring, overvoltage events, or physical impact. To initiate a warranty claim, contact TOPNLMS with the order number and a description of the fault. Replacement or refund is processed within 5 business days of fault verification. For urgent production situations, contact us directly to discuss expedited replacement options.
