Siemens 6ES7314-6CH04-0AB0 Original Industrial Spare S7-300: System Stability & Maintenance Value

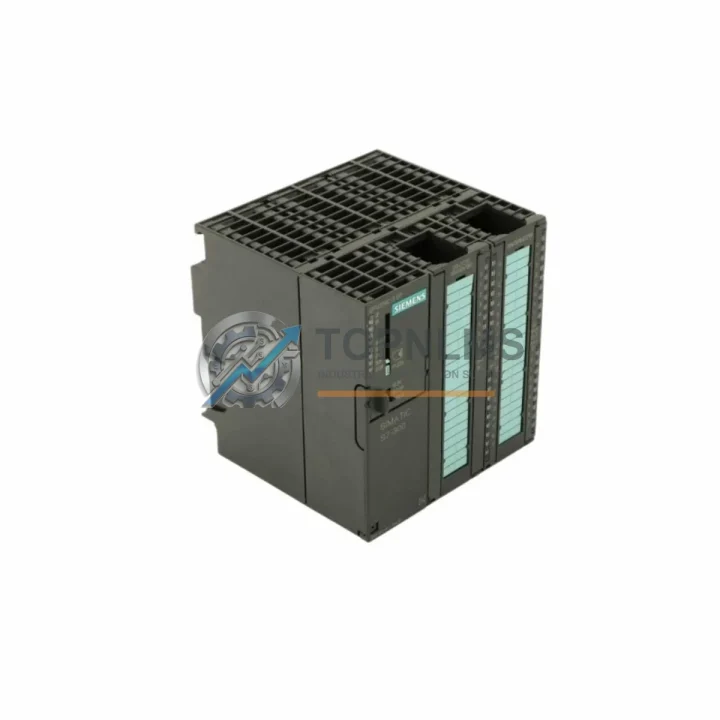

The Siemens 6ES7314-6CH04-0AB0 is a high-performance CPU module from the SIMATIC S7-300 series, designed for demanding industrial automation environments. As a CPU 314C-2 PN/DP, it integrates onboard digital and analog I/O with dual-port communication — PROFINET and PROFIBUS DP — making it a cornerstone controller in process manufacturing, automotive assembly, utilities, and discrete production lines worldwide.

For maintenance engineers and procurement teams managing aging S7-300 control cabinets, securing a verified original spare of the 6ES7314-6CH04-0AB0 is a critical risk-mitigation strategy. Unplanned downtime caused by CPU failure can halt entire production lines. Stocking this module as a ready-to-deploy replacement ensures that when failure occurs — whether from firmware corruption, hardware fault, or end-of-life degradation — your team can restore operations within hours, not days.

Every unit shipped from TOPNLMS undergoes functional verification prior to dispatch. Each module is covered by a 12-month warranty, providing procurement confidence for both emergency replacement and planned inventory replenishment cycles.

Critical Technical Specs

Preventive Maintenance Strategy

When a 6ES7314-6CH04-0AB0 CPU is flagged for replacement during a scheduled shutdown or emergency repair, experienced maintenance teams know that the CPU is rarely the only component under stress. A thorough inspection of the surrounding control cabinet is essential to prevent repeat failures and maximize the value of each maintenance window.

Begin with the power supply module — typically a 6ES7307 series PS307 — which feeds the CPU rail. A degraded power supply delivering unstable DC 24 V is a leading cause of CPU resets and memory errors. Replacing or bench-testing the PS307 alongside the CPU eliminates a common root cause before it triggers the next unplanned stop.

Next, inspect the digital input modules (such as 6ES7321 series SM321) and digital output modules (6ES7322 series SM322) installed on the same rack. These signal modules share the backplane bus with the CPU and are subject to the same thermal cycling and vibration stresses. Verifying their status during the same maintenance window avoids a second shutdown weeks later.

For systems using analog process signals — temperature, pressure, flow — the 6ES7331 series SM331 analog input modules and 6ES7332 series SM332 analog output modules should be calibration-checked. Drift in analog channels often goes undetected until it causes process deviation alarms or product quality issues.

The PROFIBUS DP communication cable and its termination resistors deserve attention whenever the CPU is pulled. Connector pins on 6ES7972 series PROFIBUS connectors can oxidize or loosen over years of service, causing intermittent communication faults that are difficult to diagnose remotely. Replacing aged connectors during a CPU swap is low-cost insurance against future network instability.

If the system includes distributed I/O over PROFINET, inspect the ET 200S or ET 200SP interface modules at remote stations. A CPU upgrade or replacement is an ideal time to verify firmware compatibility across all PROFINET nodes and update where necessary.

For facilities running older S7-300 racks, the bus connector between modules (the U-shaped backplane connector integrated into each module) should be visually inspected for cracking or deformation — a common failure point in high-vibration environments. Stocking a set of spare SM modules with integrated bus connectors ensures rapid slot-for-slot replacement.

Finally, if the control cabinet houses a SIMATIC HMI panel — such as a KTP700 or TP1200 Comfort — verify that the HMI project is backed up and that the communication parameters match the replacement CPU’s MPI address and baud rate settings. A mismatched HMI configuration is a frequent cause of post-maintenance commissioning delays.

Proactive procurement of these associated components — power supplies, I/O signal modules, PROFIBUS connectors, and HMI backup media — transforms a reactive repair into a structured maintenance event, reducing total downtime and extending the operational life of the entire S7-300 control system.

Strategic Replacement Solutions

The 6ES7314-6CH04-0AB0 (CPU 314C-2 PN/DP) is the successor to earlier compact CPUs in the S7-300 family, including the 6ES7314-6CF02-0AB0 and 6ES7314-6CG03-0AB0. Facilities still operating on these older firmware revisions can migrate to the -0AB0 variant without hardware rack changes, preserving existing wiring, I/O addressing, and STEP 7 project structures with minimal re-engineering effort.

For plants where Siemens has announced product discontinuation on specific S7-300 variants, stocking the 6ES7314-6CH04-0AB0 as a long-term spare is a proven strategy to extend system life by 5–10 years beyond the original product lifecycle. This approach defers costly full-system migrations to S7-1500 or TIA Portal platforms until capital budgets and production schedules allow a planned transition — rather than forcing an emergency upgrade during a critical production period.

Each unit supplied by TOPNLMS is sourced from verified supply channels, inspected for physical integrity, and functionally tested prior to shipment. Firmware version is confirmed and documented. Units are shipped in anti-static packaging with full traceability documentation, supporting your incoming inspection and asset management processes.
