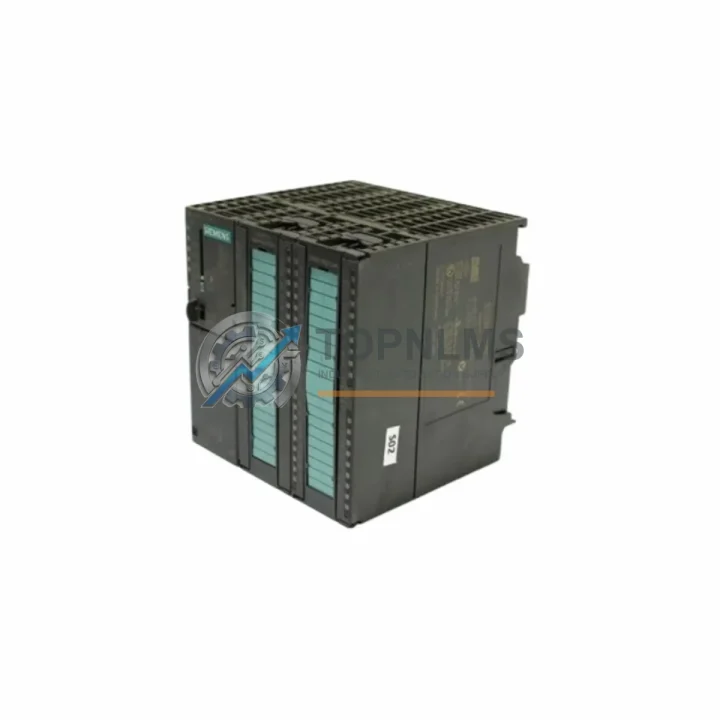

Siemens 6ES7314-6BF01-0AB0 Ruggedized CPU Module for Harsh Environments

Product Overview

Siemens 6ES7314-6BF01-0AB0 Ruggedized CPU Module for Harsh Environments

The Siemens 6ES7314-6BF01-0AB0 is a compact, high-performance CPU module from the SIMATIC S7-300 series, engineered to deliver uncompromising reliability in the most demanding industrial environments. Designed for continuous operation under extreme thermal stress, high-humidity conditions, heavy vibration, pervasive dust, and intense electromagnetic interference, this CPU 314C-2 PTP module is the backbone of mission-critical automation systems across global heavy industries. Whether deployed in a sealed control cabinet on an offshore oil platform or integrated into a high-cycle production line in a steel mill, the 6ES7314-6BF01-0AB0 maintains deterministic control performance without compromise.

Built on Siemens’ proven SIMATIC S7-300 architecture, this CPU module supports point-to-point (PTP) serial communication, making it a versatile choice for legacy system integration and modern distributed control architectures alike. Its compact form factor reduces panel space requirements while delivering the processing power necessary to handle complex ladder logic, function block diagrams, and structured text programs simultaneously. The onboard integrated I/O channels further reduce wiring complexity and cabinet footprint — a critical advantage in retrofit and brownfield automation projects where space and downtime are at a premium.

Rugged Specifications Table

Comprehensive Protection Solutions

The 6ES7314-6BF01-0AB0 does not operate in isolation — it is the control intelligence at the center of a tightly integrated automation architecture. In high-vibration environments such as mining conveyors or heavy press lines, this CPU module works in concert with SIMATIC S7-300 signal modules such as the SM 321 digital input module and SM 322 digital output module to maintain real-time I/O scanning without data loss. For analog process control in chemical dosing or temperature regulation loops, the SM 331 analog input module and SM 332 analog output module extend the CPU’s native I/O capacity with high-resolution measurement and precise actuation.

Power integrity is foundational to system uptime. The Siemens PS 307 power supply module (6ES7307-1EA01-0AA0) provides a stable, filtered 24 VDC rail that protects the CPU and connected modules from voltage transients common in industrial switchgear environments. In installations where electromagnetic interference from variable frequency drives (VFDs) or large motor starters poses a risk, proper grounding of the DIN rail and use of shielded cables in conjunction with the CP 340 or CP 341 communication processor modules ensures signal integrity across the PTP serial link.

For distributed I/O architectures — common in large-footprint plants such as water treatment facilities or power substations — the ET 200M remote I/O station paired with an IM 153 interface module allows the 6ES7314-6BF01-0AB0 to extend its control reach over PROFIBUS DP without sacrificing scan cycle performance. Safety-critical zones may additionally incorporate the Siemens SIRIUS 3SK1 safety relay module or a dedicated F-CPU from the S7-300F family to enforce SIL-rated protective functions alongside the standard control logic managed by this CPU.

Terminal block assemblies and marshalling panels using Siemens SIRIUS or Phoenix Contact terminal modules provide the field wiring interface, while the SIMATIC HMI TP700 Comfort or similar operator panels connect via MPI to deliver real-time process visualization directly from the CPU’s data registers. This end-to-end ecosystem — from field sensor through terminal module, I/O card, CPU, and HMI — is what makes the 6ES7314-6BF01-0AB0 a preferred choice for system integrators building robust, maintainable control cabinets.

Application in Critical Infrastructure

In the oil and gas sector, the 6ES7314-6BF01-0AB0 is deployed in wellhead control panels, pipeline SCADA outstations, and compressor station automation systems where ambient temperatures fluctuate widely and the risk of electrical interference from high-power equipment is constant. Its compliance with IEC 60068 environmental standards and EN 61000-6-2 industrial EMC immunity makes it suitable for Zone 2 classified areas when installed within appropriately rated enclosures.

Mining operations rely on this CPU module to automate conveyor belt sequencing, crusher control, and ventilation management in underground and open-pit environments where dust ingress, mechanical shock, and humidity are persistent challenges. The module’s robust construction and Siemens’ proven ASIC-based CPU architecture ensure mean time between failures (MTBF) figures that support the continuous, 24/7 production cycles typical of mineral processing plants.

In power generation and grid substation applications, the 6ES7314-6BF01-0AB0 handles protection relay interfacing, transformer monitoring, and auxiliary system control. Its MPI communication port enables integration with SCADA systems and energy management platforms, while the PTP serial interface supports legacy RTU protocols still prevalent in aging grid infrastructure. Water and wastewater treatment plants leverage this CPU for pump station automation, chemical dosing control, and effluent monitoring — applications where reliable, unattended operation over extended periods is non-negotiable.

Metallurgical and steel production facilities deploy the S7-300 CPU 314C-2 PTP in rolling mill control, furnace temperature management, and ladle tracking systems. The module’s ability to handle high-speed interrupt-driven tasks while maintaining deterministic cycle times makes it well-suited to the precision demands of hot metal processing, where a control fault can result in significant safety incidents and costly production losses.

Security & Quality FAQ

Q1: Does the 6ES7314-6BF01-0AB0 come with a warranty?
Yes. Every unit supplied by TOPNLMS is covered by a 12-month quality warranty from the date of shipment. This warranty covers functional defects identified under normal operating conditions. Our technical team provides post-sale support to assist with installation, commissioning, and fault diagnosis throughout the warranty period.

Q2: How is each unit tested before shipment?
All 6ES7314-6BF01-0AB0 modules undergo pre-shipment functional verification, including power-on testing, communication port validation, and I/O channel integrity checks. Units are inspected for physical condition, firmware version compatibility, and completeness of accessories (MMC slot, connector covers) before packaging. A test report is available upon request for critical procurement projects.

Q3: Is this CPU compatible with my existing S7-300 rack and STEP 7 programming environment?
Yes. The 6ES7314-6BF01-0AB0 is fully compatible with the standard SIMATIC S7-300 DIN rail backplane and all S7-300 signal, function, and communication modules. It is programmable via STEP 7 V5.4 and above, as well as TIA Portal with the S7-300 migration package. Existing programs from other CPU 314-series modules can typically be transferred with minimal modification.

Q4: Can TOPNLMS support long-term or repeat supply of this module?
