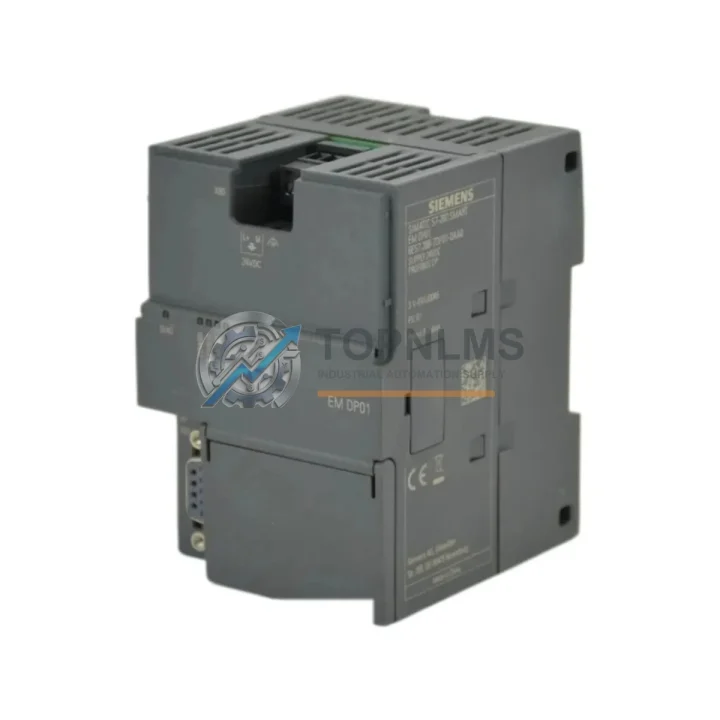

Siemens 6ES7288-7DP01-0AA0 Original Industrial Spare S7-200 SMART Compatible

Product Overview

Siemens 6ES7288-7DP01-0AA0 Original Industrial Spare S7-200 SMART Compatible: System Stability Through Proven PROFIBUS-DP Communication

In modern industrial automation environments, communication reliability between PLCs and field devices is not optional — it is the backbone of uninterrupted production. The Siemens 6ES7288-7DP01-0AA0 is an original PROFIBUS-DP slave communication module engineered specifically for the SIMATIC S7-200 SMART series. Designed to extend the S7-200 SMART CPU’s connectivity into PROFIBUS-DP networks, this module enables seamless integration with distributed I/O systems, drives, sensors, and other DP master controllers — making it an indispensable spare part for any facility running Siemens-based control architectures.

Whether you are managing a scheduled maintenance window, responding to an unplanned shutdown, or building a strategic spare parts inventory, having a verified original 6ES7288-7DP01-0AA0 on hand eliminates the risk of extended downtime caused by communication failures at the fieldbus level. This module is sourced as an original Siemens component, fully tested prior to shipment, and backed by a 12-month warranty.

Critical Technical Specs

Preventive Maintenance Strategy

A PROFIBUS-DP communication fault is rarely an isolated event. In most industrial facilities, the 6ES7288-7DP01-0AA0 operates within a tightly coupled control cabinet ecosystem where the failure of one component can cascade across the entire production line. A structured preventive maintenance approach — rather than reactive replacement — is the most cost-effective way to protect system uptime.

When inspecting or replacing the 6ES7288-7DP01-0AA0, maintenance engineers should simultaneously audit the health of the S7-200 SMART CPU module (e.g., CPU SR40 or CPU ST60) to which this DP slave is attached. The CPU’s firmware version and backplane bus integrity directly affect communication stability. If the CPU is approaching end-of-life or showing intermittent faults, replacing both the CPU and the DP module during the same maintenance window avoids a second unplanned shutdown.

The PROFIBUS-DP cable and bus connector (such as Siemens 6ES7972-0BA52-0XA0 bus connector with integrated termination resistor) should be inspected for insulation damage, connector oxidation, and proper termination at both ends of the DP segment. A degraded bus connector is one of the most common root causes of intermittent DP communication errors that are mistakenly attributed to the slave module itself.

Within the same control cabinet, the 24 VDC power supply module — such as the Siemens SITOP PSU100S or equivalent — should be load-tested. Voltage sag under peak I/O load can cause the DP slave module to drop off the network, triggering false fault alarms. Pairing a stable power supply with a freshly installed 6ES7288-7DP01-0AA0 ensures the communication layer operates within its rated electrical envelope.

For systems using distributed I/O, the S7-200 SMART expansion I/O modules — including digital input modules (EM DE08), digital output modules (EM QR16), and analog I/O modules (EM AE04, EM AQ02) — should be checked for loose terminal connections and signal drift. These modules share the backplane with the DP slave and any mechanical stress on the expansion bus can introduce intermittent faults that are difficult to diagnose remotely.

If the facility uses Siemens SINAMICS or MICROMASTER variable frequency drives connected to the PROFIBUS-DP network as slave devices, their DP parameter sets and GSD files should be verified against the current network configuration. A mismatch between the DP master’s expected configuration and the drive’s actual parameter set is a frequent source of network initialization failures after a module swap.

Finally, the STEP 7 Micro/WIN SMART programming software and associated PC/PPI cable or USB-PPI adapter should be available on-site during any DP module replacement. After installing the 6ES7288-7DP01-0AA0, the DP slave address must be configured via software, and a network scan should be performed to confirm the module is recognized by the DP master before returning the system to production.

Strategic Replacement Solutions

The 6ES7288-7DP01-0AA0 is a direct, plug-and-play replacement for any failed or aging PROFIBUS-DP slave module in the S7-200 SMART platform. Unlike third-party alternatives that may require GSD file modifications or firmware patches, the original Siemens module is recognized immediately by the DP master without reconfiguration — minimizing the time between module installation and system restart.

For facilities managing legacy S7-200 (classic) systems alongside newer S7-200 SMART installations, it is important to note that the 6ES7288-7DP01-0AA0 is not compatible with the original S7-200 CPU 22x series. The S7-200 SMART platform uses a different expansion bus architecture. Maintaining separate spare inventories for each platform prevents costly installation errors during emergency maintenance.

In multi-line production environments, a recommended spare parts strategy is to stock one 6ES7288-7DP01-0AA0 per three to five S7-200 SMART CPUs that use PROFIBUS-DP connectivity. This ratio balances inventory carrying costs against the risk of extended downtime while awaiting a replacement shipment. Given the module’s compact form factor and stable shelf life when stored in anti-static packaging at controlled temperature, long-term stocking is practical and cost-effective.

For facilities undergoing gradual migration from PROFIBUS-DP to PROFINET, the 6ES7288-7DP01-0AA0 serves as a bridge solution — maintaining existing DP infrastructure while the PROFINET migration is planned and budgeted. This approach avoids the capital expenditure of a full network overhaul while keeping aging DP segments operational and maintainable.

Support FAQ

Q1: Is the 6ES7288-7DP01-0AA0 compatible with all S7-200 SMART CPU models?
Yes. The module is compatible with all current S7-200 SMART CPU variants, including the SR20, SR30, SR40, SR60, ST20, ST30, ST40, and ST60. It occupies the dedicated communication module slot on the left side of the CPU and is configured via STEP 7 Micro/WIN SMART software. It is not compatible with the original S7-200 (classic) CPU 22x series.

Q2: How is the module tested before shipment?
Every 6ES7288-7DP01-0AA0 unit is powered on and functionally tested prior to dispatch. Testing includes backplane bus communication verification, PROFIBUS-DP address assignment, and network initialization confirmation. Units that do not pass functional testing are not shipped. A 12-month warranty is provided from the date of purchase.

Q3: What is the recommended spare parts lifecycle for this module?
Siemens classifies the S7-200 SMART platform as an active product line with ongoing spare parts availability. However, for facilities with high production criticality, we recommend maintaining at least one spare 6ES7288-7DP01-0AA0 on-site at all times. Modules stored in original anti-static packaging in a dry, temperature-controlled environment retain full functionality for 5+ years.

Q4: Can this module be installed without stopping the entire production line?
The 6ES7288-7DP01-0AA0 requires the S7-200 SMART CPU to be powered down for installation, as it connects via the backplane expansion bus. Hot-swap is not supported. However, because the DP slave address and configuration are stored in the CPU’s project, the replacement module is recognized automatically after power-up without requiring a full network reconfiguration — significantly reducing the time the line is offline.
