Siemens 6ES7288-1ST40-0AA0 Original Industrial Spare S7-200 SMART Compatible

Product Overview

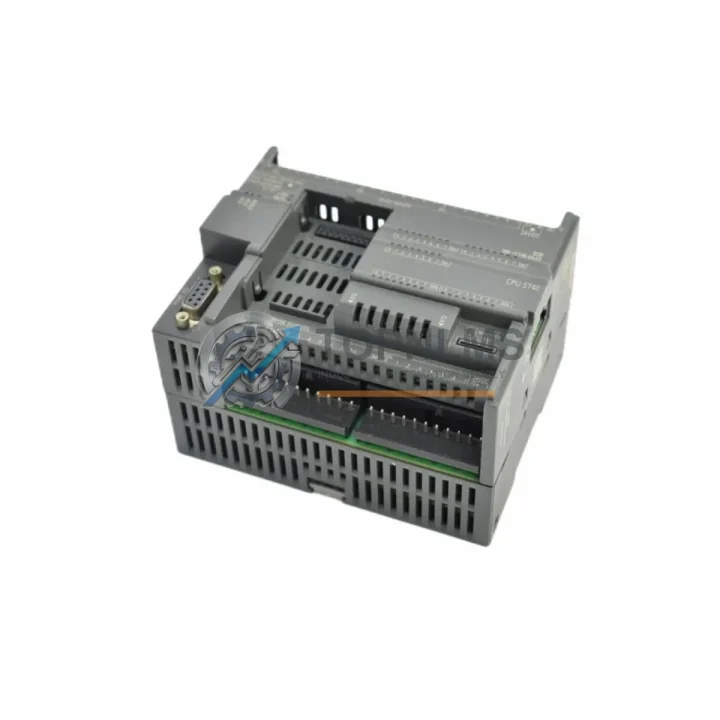

Siemens 6ES7288-1ST40-0AA0 Original Industrial Spare — S7-200 SMART CPU for System Stability

The Siemens 6ES7288-1ST40-0AA0 is an original standard CPU module from the S7-200 SMART series — a compact, high-performance programmable logic controller engineered for manufacturing automation, machine-building, and process control applications. Featuring 40 integrated I/O points (24 digital inputs / 16 transistor outputs), onboard Ethernet, RS485 communication, and support for up to 6 expansion modules, this CPU delivers the processing power and connectivity demanded by modern industrial environments. As an original Siemens spare part, the 6ES7288-1ST40-0AA0 is a verified drop-in replacement for failed or end-of-life units — restoring production continuity without system redesign, software migration, or panel rework.

For maintenance engineers managing S7-200 SMART installations, sourcing a genuine replacement CPU is the single most critical decision in a breakdown scenario. Counterfeit or refurbished units introduce unpredictable failure modes that compound downtime and invalidate warranty claims. Every 6ES7288-1ST40-0AA0 supplied by TOPNLMS is sourced from authorized channels, power-on tested prior to dispatch, and shipped in original Siemens anti-static packaging — giving your team the confidence to commission the replacement immediately upon arrival.

Critical Technical Specs

Preventive Maintenance Strategy

When a 6ES7288-1ST40-0AA0 CPU is scheduled for replacement — whether during a planned shutdown or an emergency breakdown — experienced maintenance engineers treat the event as a full-system health audit, not a single-component swap. The CPU is the nerve center of the S7-200 SMART control cabinet; its failure frequently signals accumulated stress across adjacent components sharing the same power rail, backplane bus, and communication network.

Start with the 24 VDC power supply module. The 6ES7288-0AA10-0AA0 PM207 power supply is the most common companion unit in S7-200 SMART panels, and voltage ripple or insufficient current headroom is a leading cause of premature CPU failure. Verify output voltage under load with a calibrated meter before commissioning the replacement CPU — a marginal power supply will shorten the life of a new unit within weeks. While the cabinet is open, inspect the digital input expansion modules such as the 6ES7288-2DE08-0AA0 EM DE08 for degraded input thresholds and the digital output expansion modules such as the 6ES7288-2DR08-0AA0 EM DR08 for blown transistor outputs or relay contact wear. These conditions are invisible during normal operation but become critical failure points after a CPU reset forces a full I/O re-scan.

The RS485 port on the 6ES7288-1ST40-0AA0 is typically used to connect HMI panels — commonly the Siemens SMART 700 IE V3 or similar SMART LINE touch panels. Inspect the RS485 cable shielding and terminal connections at both ends; corroded or loose terminals are a frequent source of intermittent communication faults that are misdiagnosed as CPU errors. The Ethernet port should also be tested for link integrity, particularly in high-vibration or high-humidity environments where RJ45 connector retention can degrade over time.

For process control applications with analog loops, verify the condition of analog input modules such as the 6ES7288-3AE04-0AA0 EM AE04 and analog output modules such as the 6ES7288-3AQ02-0AA0 EM AQ02. Signal drift in analog expansion modules can corrupt PID loop performance and is often only discovered after a CPU replacement fails to resolve a process instability complaint — a costly diagnostic dead end. While the panel is de-energized, inspect all terminal blocks and wiring ferrules for oxidation and verify the coil resistance and contact continuity of any relay output expansion modules such as the 6ES7288-2DR16-0AA0 EM DR16.

Finally, review the Micro SD card used for program backup storage on the S7-200 SMART CPU. Cards that have exceeded their write cycle limits can cause boot failures on an otherwise healthy replacement unit — a failure mode that is difficult to diagnose under time pressure. Stocking a spare formatted Micro SD card alongside the 6ES7288-1ST40-0AA0 is a low-cost insurance measure that eliminates one of the most common commissioning delays in the field. A complete spare parts kit for an S7-200 SMART panel — CPU, power supply, key expansion modules, communication cable, and backup card — represents the gold standard for industrial maintenance preparedness and the strongest protection against extended unplanned downtime.

Strategic Replacement Solutions

The 6ES7288-1ST40-0AA0 is a direct hardware replacement for all earlier S7-200 SMART ST40 CPU variants. Programs developed in STEP 7-Micro/WIN SMART can be restored from a Micro SD backup or downloaded via Ethernet without any hardware reconfiguration — making this the fastest possible path back to production for maintenance teams operating under time pressure.

For facilities still running the legacy S7-200 Classic platform (CPU 224XP, CPU 226), the S7-200 SMART series represents a validated modernization path that preserves existing ladder logic investment while delivering improved Ethernet connectivity, faster scan times, expanded memory, and a broader ecosystem of expansion modules. The 6ES7288-1ST40-0AA0 maintains the same 24 VDC supply standard and DIN rail mounting footprint, minimizing panel rework during upgrade projects and reducing the engineering cost of system modernization.

For multi-line facilities running identical S7-200 SMART configurations, a centralized spare parts inventory covering the CPU module, power supply, and key expansion modules provides the highest return on maintenance investment. Stocking one or two units of the 6ES7288-1ST40-0AA0 as on-site cold spares reduces mean time to repair (MTTR) from days to hours — a measurable improvement in OEE that justifies the inventory carrying cost many times over. TOPNLMS supports volume stocking programs with consolidated shipping, multi-SKU procurement, and flexible lead time arrangements.

Each unit is power-on tested and communication-port verified before dispatch, ships in original Siemens anti-static packaging, and is covered by a 12-month warranty. Express shipping is available for urgent breakdown scenarios. Contact our technical team to confirm compatibility, discuss volume pricing, or arrange a stocking agreement.

Support FAQ

Q1: Is the 6ES7288-1ST40-0AA0 a direct replacement for an existing ST40 CPU without reprogramming?
Yes. The 6ES7288-1ST40-0AA0 is fully pin-compatible and software-compatible with all S7-200 SMART ST40 variants. Restore the program from a Micro SD backup or via Ethernet download using STEP 7-Micro/WIN SMART — no hardware reconfiguration or software migration is required. Commissioning time is typically under 30 minutes for a prepared maintenance team.

Q2: How is the unit tested and verified before shipment?
Each 6ES7288-1ST40-0AA0 undergoes power-on functional verification and communication port testing (Ethernet and RS485) prior to dispatch. Units are shipped in original Siemens anti-static packaging. Inspection documentation and test records are available on request for quality-controlled maintenance programs.

Q3: What does the 12-month warranty cover, and how are claims processed?
The warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect wiring, overvoltage events, or physical impact. Warranty claims are acknowledged within 2 business days and processed within 5 business days of receipt of the returned unit. Replacement or repair is provided at no charge for valid claims.

Q4: Can I order multiple units for a spare parts inventory program?
Yes. Volume pricing is available for orders of 3 or more units of the 6ES7288-1ST40-0AA0 or any combination of S7-200 SMART spare parts. Contact us at [email protected] or +86 18359293191 to discuss inventory stocking agreements, consolidated shipping for multi-SKU orders, and lead time commitments for planned maintenance programs.
