Siemens 6ES7232-0HB22-0XA0 Ruggedized Analog Output Module for Harsh Environments

Product Overview

Siemens 6ES7232-0HB22-0XA0 Ruggedized Analog Output Module for Harsh Environments

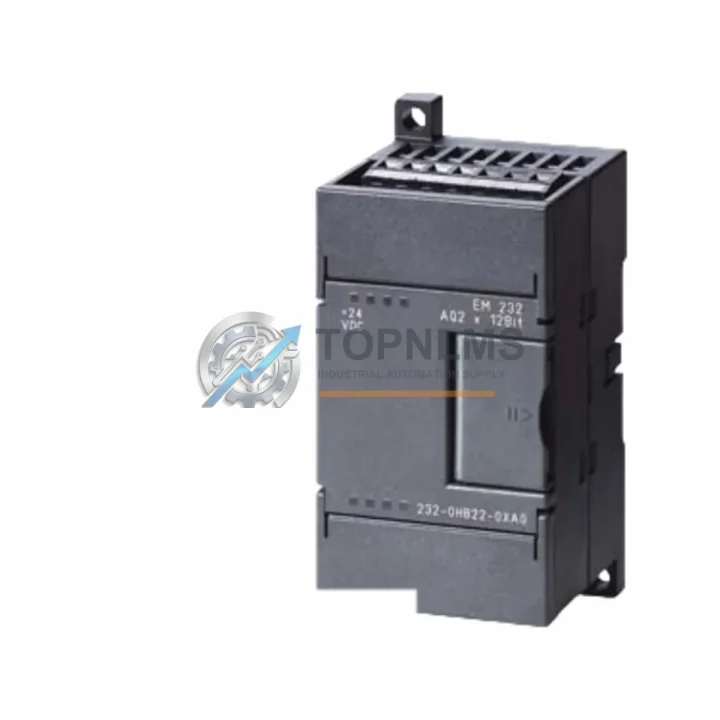

The Siemens 6ES7232-0HB22-0XA0 is a 2-channel analog output expansion module (EM232) engineered for the SIMATIC S7-200 compact PLC platform. Designed to meet the rigorous demands of continuous industrial production, this module delivers stable, high-resolution analog signal output in environments characterized by extreme temperature fluctuations, elevated humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference. Whether deployed in a sealed control cabinet on a petrochemical processing line or mounted in a junction box at a mining extraction site, the 6ES7232-0HB22-0XA0 maintains signal integrity and output accuracy where lesser components fail.

Built on Siemens’ proven SIMATIC S7-200 architecture, this EM232 module integrates seamlessly with the CPU 224, CPU 226, and CPU 222 series controllers, extending their analog control capability without additional signal conditioning hardware. Its compact DIN-rail form factor and tool-free bus connector make it a practical choice for both new panel builds and field replacement of aging analog output cards in legacy S7-200 systems still operating across global infrastructure.

Rugged Specifications Table

Comprehensive Protection Solutions

In demanding industrial environments, the 6ES7232-0HB22-0XA0 rarely operates in isolation. It functions as a precision output interface within a broader S7-200 control architecture, working in concert with analog input modules such as the EM231 (6ES7231-0HC22-0XA0) to form closed-loop process control loops for temperature regulation, pressure management, and flow control. The CPU 224 (6ES7214-1BD23-0XB0) serves as the central processing unit coordinating data exchange between the EM232 output module and field instruments, while the EM222 digital output module handles discrete switching tasks in parallel.

For applications requiring high-speed data acquisition alongside analog output, the EM235 combination analog I/O module (6ES7235-0KD22-0XA0) complements the EM232 by providing additional input channels within the same expansion bus. In control cabinets where power quality is critical, a SITOP PSU100S 24 V DC power supply ensures the stable bus voltage that the EM232 requires for accurate output linearity. Surge protection devices and EMC filter modules installed at the cabinet entry point further shield the analog output signals from conducted interference originating on long cable runs to field actuators such as control valves and variable-frequency drives.

Communication integrity across the plant network is maintained through the CP 243-1 Ethernet communication module, which allows the S7-200 system — including the EM232 — to participate in PROFINET or Industrial Ethernet supervisory architectures. Where legacy serial communication is required, the EM277 PROFIBUS-DP slave module bridges the S7-200 I/O bus to plant-wide PROFIBUS networks. Safety relay modules and terminal block assemblies within the same control cabinet complete the protection layer, ensuring that any fault condition on the analog output loop triggers a safe-state response before process equipment is damaged.

Application in Critical Infrastructure

The Siemens 6ES7232-0HB22-0XA0 has established a strong operational record across critical infrastructure sectors where unplanned downtime carries severe safety and financial consequences. In oil and gas upstream facilities, the module drives 4–20 mA signals to electro-pneumatic positioners on wellhead control valves, maintaining precise flow regulation in environments saturated with hydrogen sulfide and subject to explosive-atmosphere classification. Its compliance with EMC standards ensures that radio-frequency emissions from nearby wireless communication equipment do not corrupt the analog output signal.

In coal and hard-rock mining operations, the EM232 is deployed in conveyor belt speed control panels and ventilation fan drive systems, where coal dust accumulation and continuous mechanical vibration are constant stressors. The module’s vibration-rated design and conformal-coated PCB construction resist the ingress of conductive particulates that would otherwise cause premature failure of standard commercial-grade output cards. Power generation facilities — including thermal, hydroelectric, and wind energy plants — rely on the S7-200 EM232 for turbine governor signal output and excitation control interfaces, where signal stability directly affects grid frequency regulation.

Municipal water treatment and wastewater management plants use the 6ES7232-0HB22-0XA0 to modulate chemical dosing pump speeds and aeration blower damper positions, applications that demand continuous 24/7 operation across seasonal temperature extremes. In steel and aluminum smelting facilities, the module withstands radiant heat loads and high-frequency electromagnetic fields generated by arc furnaces and induction heating equipment, maintaining output accuracy for casting speed and cooling water flow control loops that are critical to product quality and worker safety.

Security & Quality FAQ

Q1: What warranty coverage is provided with the 6ES7232-0HB22-0XA0?
Every unit shipped by TOPNLMS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. If a module fails within the warranty period, we provide a replacement or full refund after technical verification. Our warranty process is straightforward — contact us with the order reference and a fault description, and we will initiate the resolution within one business day.

Q2: How is each module tested before shipment?
All 6ES7232-0HB22-0XA0 units undergo pre-shipment functional verification, including power-on testing, analog output channel calibration checks across the full 0–20 mA and ±10 V ranges, and visual inspection for physical damage. Modules sourced from authorized distribution channels are accompanied by original Siemens packaging and documentation. Units from certified refurbishment programs are tested to the same functional standard and clearly identified as such at the time of quotation.

Q3: Is the 6ES7232-0HB22-0XA0 compatible with my existing S7-200 CPU and STEP 7-Micro/WIN project?
Yes. The EM232 expansion module is fully compatible with all S7-200 CPU variants (CPU 221 through CPU 226XM) and is configured natively within STEP 7-Micro/WIN without additional drivers or firmware updates. The module occupies two analog output words in the CPU’s I/O image table (AQW0 and AQW2 by default), and its configuration is retained in the CPU project file, making field replacement a straightforward swap-and-power-cycle procedure with no re-programming required.

Q4: Can TOPNLMS support long-term supply for ongoing maintenance and spare-parts programs?
Yes. TOPNLMS maintains dedicated stock of high-demand S7-200 series modules, including the 6ES7232-0HB22-0XA0, to support customers with planned maintenance schedules, annual spare-parts procurement contracts, and emergency breakdown replacement requirements. We offer volume pricing for standing orders and can provide lead-time commitments for quantities exceeding standard stock levels. For critical infrastructure operators who require guaranteed availability, we recommend establishing a blanket purchase order to secure priority allocation from our inventory.
