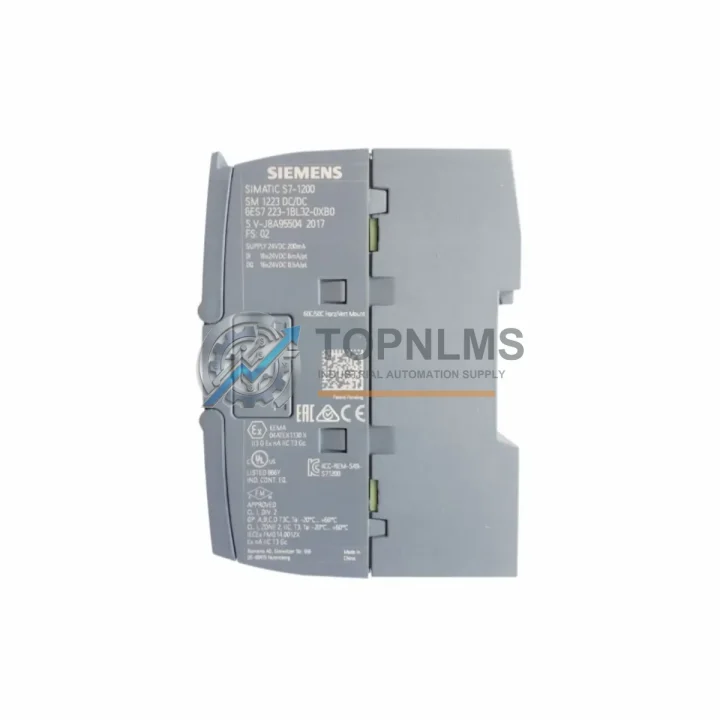

Siemens 6ES7223-1BL32-0XB0 Ruggedized 16DI/16DO Module for Harsh Environments

Product Overview

Siemens 6ES7223-1BL32-0XB0 Ruggedized 16DI/16DO Module for Harsh Environments

In the most demanding corners of modern industry — where ambient temperatures swing without warning, electromagnetic interference saturates the air, and production lines cannot afford a single unplanned stop — the Siemens 6ES7223-1BL32-0XB0 SM 1223 Signal Module stands as a proven pillar of control-system reliability. Engineered as a high-density digital I/O expansion for the Siemens SIMATIC S7-1200 PLC platform, this module delivers 16 digital inputs and 16 digital relay/transistor outputs in a compact DIN-rail form factor, purpose-built to sustain continuous operation under the harshest field conditions.

Whether deployed in a petrochemical processing plant, a coal-fired power station, a municipal water-treatment facility, or a high-throughput automotive assembly line, the 6ES7223-1BL32-0XB0 provides the signal integrity and I/O density that safety-critical automation demands. Its robust design philosophy — rooted in Siemens’ decades of industrial automation engineering — ensures that every digital signal is captured and executed with deterministic precision, even when vibration, dust ingress, humidity, and high-voltage transients are constant environmental realities.

Rugged Specifications Table

Comprehensive Protection Solutions

The 6ES7223-1BL32-0XB0 does not operate in isolation — it is the I/O backbone of a broader, integrated control architecture. In a typical S7-1200-based control cabinet, this module works in concert with the Siemens CPU 1214C DC/DC/DC (6ES7214-1AG40-0XB0), which serves as the central processing unit managing program execution and communication. Power integrity for the entire rack is maintained by the Siemens SITOP PSU100S 24 V/10 A power supply (6EP1334-2BA20), a stabilized DIN-rail unit engineered to reject input voltage fluctuations common in heavy industrial environments.

For applications requiring analog process variable monitoring alongside digital control — such as pressure, temperature, or flow measurement in a chemical plant — the SM 1231 Analog Input Module (6ES7231-4HD32-0XB0) pairs directly with the 6ES7223-1BL32-0XB0 on the same S7-1200 backplane, enabling mixed-signal control strategies without additional gateways. Where high-speed motor control is involved, the module’s relay outputs interface cleanly with Siemens SINAMICS G120 variable frequency drives, coordinating start/stop, fault reset, and speed-reference switching through hardwired digital commands.

Safety-critical zones benefit from the addition of the Siemens SIRIUS 3SK1 Safety Relay (3SK1111-1AB30), which monitors emergency-stop circuits and safety door interlocks, with its output status fed back into the SM 1223’s digital inputs for supervisory PLC logic. Communication to higher-level SCADA or DCS systems is handled via the Siemens CM 1241 RS485 Communication Module (6ES7241-1CH32-0XB0) or the CM 1243-5 PROFIBUS DP Master Module (6GK7243-5DX30-0XE0), both of which mount directly to the S7-1200 CPU left-side expansion slots. Terminal connectivity within the cabinet is standardized using Siemens SIRIUS ACT 8WA1 terminal blocks, ensuring reliable, vibration-proof field wiring termination for all 32 I/O channels of the SM 1223 module.

For installations requiring distributed I/O across large plant footprints, the Siemens ET 200SP distributed I/O system — including modules such as the DI 8×24VDC ST (6ES7131-6BF01-0BA0) — extends the same S7-1200 control philosophy to remote field panels, all managed through PROFINET from the central CPU that hosts the 6ES7223-1BL32-0XB0.

Application in Critical Infrastructure

The SM 1223 6ES7223-1BL32-0XB0 has earned its place in some of the most unforgiving industrial environments on the planet. In oil and gas upstream operations, it controls wellhead valve actuators, monitors pressure-switch states, and interfaces with flame-detection systems — all within control panels that may be exposed to hydrogen sulfide atmospheres and wide diurnal temperature swings. Its optical isolation and relay output architecture ensure that high-voltage field transients from solenoid valves and motor starters cannot propagate back into the S7-1200 CPU logic circuitry.

In coal and hydroelectric power generation, the module manages auxiliary equipment control — cooling fans, lube-oil pumps, and breaker status monitoring — where continuous availability is a regulatory and operational imperative. The module’s IEC 60068-compliant vibration and shock ratings make it suitable for installation in turbine hall panels subject to constant mechanical vibration.

Municipal water and wastewater treatment plants rely on the 6ES7223-1BL32-0XB0 to sequence pump stations, monitor float-switch arrays, and control chemical dosing solenoids. The module’s wide humidity tolerance and IP20 rating — combined with a properly sealed control enclosure — provide reliable operation in the high-moisture, corrosive-atmosphere conditions typical of these facilities.

In metallurgical and steel-making operations, where electromagnetic interference from arc furnaces and induction heaters is severe, the module’s CE and EMC-certified design, combined with proper cable shielding and grounding practices, maintains signal integrity across all 16 input channels simultaneously. Mining operations similarly benefit from the module’s shock resistance and wide temperature range, enabling deployment in underground control rooms and surface crusher-plant panels alike.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the 6ES7223-1BL32-0XB0?
All units supplied by TOPNLMS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. If a module fails within the warranty period, we provide a free replacement or full refund after technical verification. Warranty claims are processed within 5 business days of receiving the returned unit.

Q2: How is each module tested before shipment?
Every 6ES7223-1BL32-0XB0 unit undergoes pre-shipment functional verification: all 16 digital inputs and 16 relay outputs are exercised under load, backplane communication integrity is confirmed, and the module firmware version is logged. Units are shipped in original or equivalent anti-static packaging with inspection documentation included.

Q3: Is this module compatible with all S7-1200 CPU variants, and can it replace older SM 1223 revisions?
The 6ES7223-1BL32-0XB0 (firmware V2.0+) is compatible with all SIMATIC S7-1200 CPU models from the 1211C through the 1217C. It is a direct functional replacement for earlier SM 1223 revisions including the 6ES7223-1BL30-0XB0 and 6ES7223-1BL31-0XB0, with no hardware or software reconfiguration required in TIA Portal V13 SP1 and later.

Q4: Can TOPNLMS support long-term or repeat procurement for maintenance and spare-parts programs?
Yes. TOPNLMS maintains standing inventory of the 6ES7223-1BL32-0XB0 and related S7-1200 ecosystem components to support MRO (Maintenance, Repair & Operations) programs. We offer priority allocation for registered industrial accounts, volume pricing for orders of 5 units or more, and expedited shipping options to minimize plant downtime. Contact our technical sales team to establish a supply agreement.
