Siemens 6ES7222-1HF32-0XB0 Replacement for S7-1200 SM 1222

Product Overview

Siemens 6ES7222-1HF32-0XB0 Replacement for S7-1200 SM 1222: Seamless Transition & Smooth System Upgrade

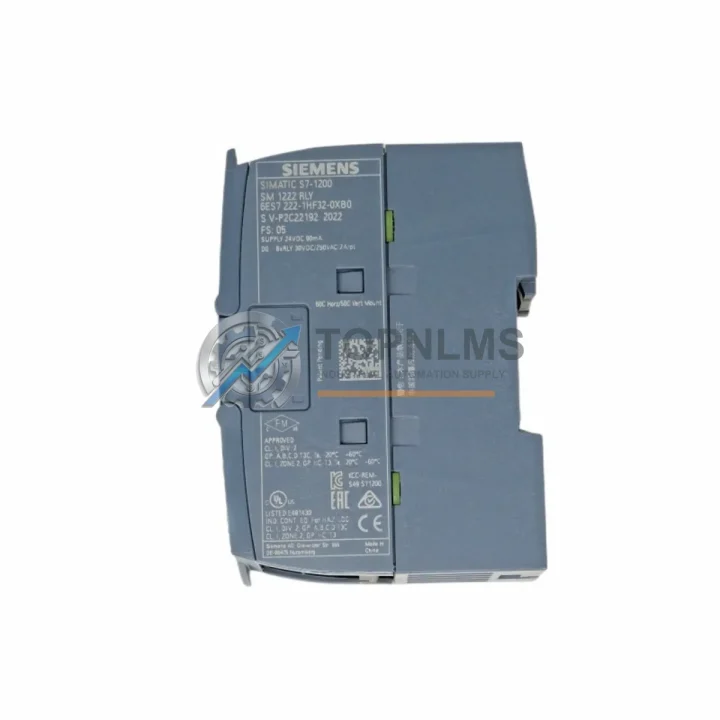

The Siemens 6ES7222-1HF32-0XB0 is an SM 1222 series 8-point relay digital output module designed for the SIMATIC S7-1200 controller platform. Whether you are replacing a failed unit, upgrading from an older S7-200 or S7-300 system, or consolidating a legacy control cabinet, this module delivers a verified drop-in solution with full compatibility across wiring, rack mounting, and TIA Portal programming environments. Its relay contact outputs (max. 2 A per point, 30 VDC / 250 VAC) make it the preferred choice for driving solenoid valves, motor starters, indicator lamps, and small actuators in process automation, packaging lines, and building management systems.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration to the 6ES7222-1HF32-0XB0 rarely involves a single module swap. In practice, engineers upgrading from a legacy S7-200 EM 222 relay output module or decommissioning an older S7-300 DO 16 × 24 VDC card will find that the S7-1200 ecosystem requires a coordinated approach across several components.

The SIMATIC S7-1200 CPU 1214C DC/DC/DC (6ES7214-1AG40-0XB0) serves as the central controller in most new panel builds, and the 6ES7222-1HF32-0XB0 slots directly onto its right-hand expansion bus without any additional adapter. For applications requiring additional digital inputs alongside the relay outputs, the SM 1221 8DI module (6ES7221-1BF32-0XB0) is the natural companion, sharing the same form factor and bus connector standard.

Where analog process signals — such as 4–20 mA pressure transmitters or PT100 temperature sensors — must be integrated into the same cabinet, the SM 1231 AI 4 × 13-bit module (6ES7231-4HD32-0XB0) provides seamless analog input expansion. On the output side, if variable-speed drives or proportional valves require analog control signals, the SM 1232 AO 2 × 14-bit module (6ES7232-4HB32-0XB0) pairs directly with the relay output module on the same rack.

Communication is a critical consideration during any PLC migration. The CM 1241 RS485 communication module (6ES7241-1CH32-0XB0) enables PROFIBUS DP or Modbus RTU connectivity to existing field devices — drives, HMIs, and remote I/O — without rewiring the entire network. For Ethernet-based PROFINET integration, the S7-1200 CPU’s built-in PROFINET port handles most requirements, but the CP 1242-7 GPRS module can extend remote monitoring capability to sites without fixed-line infrastructure.

Power supply integrity is equally important. The SITOP PSU100S 24 VDC / 5 A (6EP1333-2BA20) is a widely used DIN-rail power supply that provides stable 24 VDC to the S7-1200 CPU and its signal modules, including the 6ES7222-1HF32-0XB0. Pairing it with a SITOP UPS1600 buffer module ensures uninterrupted operation during brief mains interruptions — a key requirement in food processing and pharmaceutical automation.

For panel builders retrofitting existing cabinets, the SIMATIC HMI KTP700 Basic (6AV2123-2GB03-0AX0) provides a compact 7-inch touch panel that integrates natively with the S7-1200 over PROFINET, replacing older OP/TP 177 panels without requiring a new PLC program structure. Finally, the SIMATIC STEP 7 Basic / TIA Portal programming cable (USB-MPI/PC adapter) is essential for on-site commissioning, allowing engineers to download updated programs, monitor relay output states in real time, and verify I/O mapping after the module swap.

Retrofit Guidance FAQ

Q: Can I reuse the existing field wiring when replacing an older relay output module with the 6ES7222-1HF32-0XB0?
A: In most cases, yes. The SM 1222 uses standard screw terminals accepting 0.5–2.5 mm² conductors. If the legacy module used the same terminal pitch and the load voltage (up to 250 VAC / 30 VDC) is within specification, field wiring can be reconnected directly. Always verify load current does not exceed 2 A per relay contact.

Q: Do I need to modify my TIA Portal program after swapping to this module?
A: If you are replacing an identical 6ES7222-1HF32-0XB0 unit, no program changes are required — the module address is assigned automatically by the S7-1200 CPU based on slot position. If migrating from a different module type or slot configuration, update the hardware configuration in TIA Portal and perform a full download before restarting the system.

Q: Is the 6ES7222-1HF32-0XB0 compatible with all S7-1200 CPU versions?
A: Yes. The SM 1222 8DO relay module is compatible with all S7-1200 CPU variants (CPU 1211C, 1212C, 1214C, 1215C, and 1217C) running firmware V2.0 and above. Up to 8 signal modules can be connected to a single CPU, subject to the CPU’s maximum I/O expansion limit.

Q: How do I handle the physical space constraint when retrofitting an existing control cabinet?
A: The 6ES7222-1HF32-0XB0 has a compact 45 mm width on a 35 mm DIN rail. Compared to older S7-300 DO modules mounted on a 530 mm rack, the S7-1200 modular design significantly reduces panel footprint. In tight cabinets, consider using the S7-1200 mounting rail adapter to reposition the module stack horizontally or vertically as needed.

Q: What communication protocols are supported during the migration period when old and new devices coexist?
A: The S7-1200 CPU supports PROFINET (IRT/RT), Modbus TCP, Modbus RTU (via CM 1241), and USS protocol natively. During a phased migration, the CM 1241 RS485 module allows the new S7-1200 to communicate with legacy Modbus RTU field devices, eliminating the need to replace all field instruments simultaneously.

Q: What is the typical lead time and how is the module tested before shipment?
A: In-stock units ship within 1–3 business days from Xiamen. Each module undergoes functional output testing and visual inspection before packaging. Express international shipping (DHL / FedEx) is available for urgent replacement orders.

Warranty Assurance

Every Siemens 6ES7222-1HF32-0XB0 supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Our pre-shipment inspection protocol includes relay contact continuity testing, bus connector integrity verification, and firmware version confirmation. In the event of a confirmed defect within the warranty period, we provide priority replacement dispatch — typically within 2 business days — to minimize production downtime.

For B2B procurement teams managing spare parts inventories, we offer batch quotation, consignment stock arrangements, and documented test reports upon request. Our technical support team is available to assist with TIA Portal hardware configuration, wiring verification, and on-site commissioning guidance remotely.

All modules are shipped in original or equivalent anti-static packaging with full traceability documentation. Certificate of conformity and country of origin documentation are available for customs clearance purposes.
