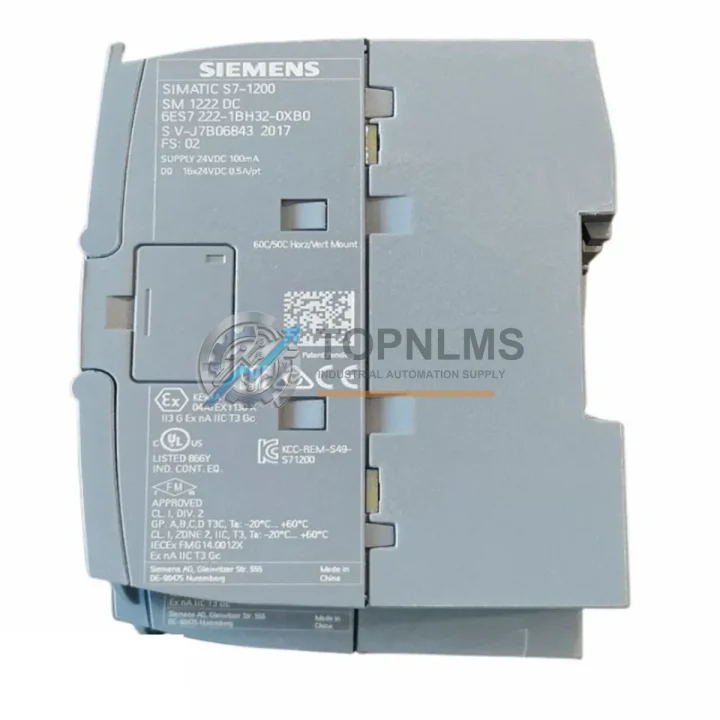

Siemens 6ES7222-1BH32-0XB0 Ruggedized Digital Output Module

Product Overview

Siemens 6ES7222-1BH32-0XB0 Ruggedized Digital Output Module for Harsh Industrial Environments

The Siemens 6ES7222-1BH32-0XB0 is a 16-channel digital output signal module (SM 1222) engineered for the SIMATIC S7-1200 programmable logic controller platform. Designed to operate reliably in the most demanding industrial conditions — including high ambient temperatures, elevated humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference — this module delivers consistent, deterministic output switching performance where uptime is non-negotiable.

In continuous production environments such as petrochemical processing lines, mineral extraction facilities, and heavy metallurgical plants, control system reliability is a safety-critical requirement. The 6ES7222-1BH32-0XB0 meets this requirement through its compact, DIN-rail-mounted form factor, robust terminal connectivity, and full integration with the S7-1200 CPU ecosystem. Whether installed in a sealed control cabinet on an offshore platform or mounted in a dusty panel room at a cement plant, this module maintains signal integrity and output accuracy across its full rated operating range.

Rugged Specifications Table

Comprehensive Protection Solutions for S7-1200 Control Systems

The 6ES7222-1BH32-0XB0 is one component within a tightly integrated S7-1200 control architecture built for industrial resilience. In a typical hardened control cabinet, this digital output module works in concert with the Siemens 6ES7214-1AG40-0XB0 CPU 1214C, which provides the processing core and PROFINET connectivity for the entire rack. Analog field signals — temperature transmitters, pressure transducers, and flow meters — are conditioned by the 6ES7231-4HD32-0XB0 SM 1231 4-channel analog input module, while proportional control valves and variable-speed actuators receive their setpoints from the 6ES7232-4HB32-0XB0 SM 1232 2-channel analog output module.

For applications requiring expanded mixed I/O in a single footprint, the 6ES7223-1BL32-0XB0 SM 1223 16DI/16DO module complements this unit by doubling the system’s digital input capacity without adding a separate CPU scan cycle. Stable, noise-filtered DC power to the entire S7-1200 rack is delivered by a Siemens SITOP PSU100S 24V/10A power supply — a critical factor in environments where large motor loads and variable frequency drives generate significant mains disturbances.

Communication integrity in electromagnetically noisy environments is maintained through the Siemens CM 1241 RS485 communication module (6ES7241-1CH32-0XB0), enabling MODBUS RTU and USS protocol links to drives, motor starters, and remote I/O panels. Safety-critical shutdown circuits are implemented using the Siemens SIRIUS 3SK1 safety relay in conjunction with the transistor outputs of this SM 1222 module, ensuring SIL-compliant emergency stop and protective interlock functions. Field wiring is terminated reliably through Phoenix Contact PTFIX distribution terminal blocks and Weidmüller WDU 2.5 terminal modules, which maintain contact integrity under vibration and thermal cycling across the full service life of the installation.

Application in Critical Infrastructure

The 6ES7222-1BH32-0XB0 is deployed across a broad spectrum of critical industrial infrastructure where control system failure carries significant operational, financial, or safety consequences.

In oil and gas processing facilities, this module controls solenoid valves, motor contactors, and alarm annunciators on wellhead control panels and pipeline SCADA outstations. Its transistor outputs provide fast, bounce-free switching for pneumatic valve actuators, and its compatibility with the S7-1200 PROFINET backbone allows seamless integration into distributed control architectures spanning multiple field panels across hazardous-area boundaries.

In mining and mineral processing operations, the module manages conveyor belt start/stop sequences, crusher interlock circuits, and dust suppression system activation. The combination of its wide operating temperature range and IEC 60068 vibration compliance makes it suitable for installation in mobile plant control panels and fixed underground substation enclosures alike, where shock loads and airborne silica dust are constant environmental stressors.

In power generation and electrical utilities, the SM 1222 module is used for auxiliary equipment control — managing cooling fans, lubrication pumps, and circuit breaker trip/close commands in generator protection panels. Its deterministic output response time ensures that protective relay commands are executed within the timing windows required by grid protection schemes, where millisecond-level accuracy is a functional safety requirement.

In water and wastewater treatment plants, the module controls pump station motor starters, UV disinfection system enable signals, and chemical dosing pump activation. Its resistance to high-humidity environments and corrosive atmospheres — common in chlorination rooms and wet wells — ensures long service life without derating or accelerated contact degradation.

In metallurgical and steel production facilities, the 6ES7222-1BH32-0XB0 manages furnace burner sequencing, cooling water valve control, and rolling mill auxiliary drive commands. The module’s EN 61000-4 EMI immunity is particularly valuable in these environments, where large variable frequency drives and arc furnaces generate significant conducted and radiated interference on the plant electrical network — interference levels that would compromise lesser-rated output modules.

Security & Quality FAQ

Q1: What warranty coverage is provided for the 6ES7222-1BH32-0XB0?
All units supplied by TOPNLMS carry a 12-month warranty from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. In the event of a warranty claim, we provide technical assessment, replacement dispatch, or full refund — whichever resolution best suits your operational timeline.

Q2: How is each unit tested before shipment?
Every 6ES7222-1BH32-0XB0 module undergoes pre-shipment functional verification, including output channel continuity checks, power-on self-test confirmation, and visual inspection for physical integrity. Units are shipped in original or equivalent anti-static protective packaging to prevent ESD damage in transit. A test report is available upon request for critical procurement applications.

Q3: Is this module compatible with all S7-1200 CPU variants and existing TIA Portal projects?
Yes. The SM 1222 6ES7222-1BH32-0XB0 is fully compatible with all S7-1200 CPU models (CPU 1211C through CPU 1217C) and is natively supported in TIA Portal V13 SP1 and all later versions. No hardware configuration changes are required when replacing an existing SM 1222 module of the same part number — the replacement is plug-and-play within the existing project configuration, with zero re-engineering overhead.

Q4: Can TOPNLMS support long-term or repeat procurement for this part?
Yes. TOPNLMS maintains dedicated stock of high-demand S7-1200 signal modules, including the 6ES7222-1BH32-0XB0, to support both emergency replacement orders and scheduled maintenance procurement programs. We offer volume pricing for MRO contracts, and our team can provide lead-time commitments and allocation reservations for planned shutdowns or capital projects. Contact us at [email protected] or +86 18359293191 to discuss your supply requirements.
