Siemens 6ES7216-2AD23-0XB8 Ruggedized PLC CPU Module

Product Overview

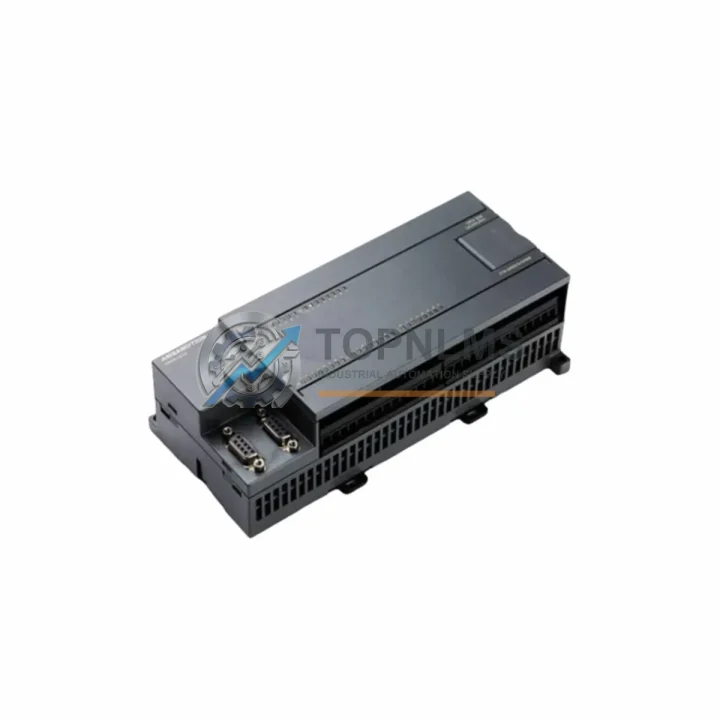

Siemens 6ES7216-2AD23-0XB8 Ruggedized PLC CPU Module for Harsh Industrial Environments

The Siemens 6ES7216-2AD23-0XB8 is a high-performance compact CPU from the SIMATIC S7-200 series, engineered to deliver uncompromising reliability in the most demanding industrial environments. Designed for continuous operation under conditions of extreme temperature variation, high humidity, pervasive dust, mechanical vibration, and intense electromagnetic interference (EMI), this CPU module is a cornerstone component for mission-critical automation systems where downtime is simply not an option.

Built on Siemens’ proven SIMATIC S7-200 platform, the 6ES7216-2AD23-0XB8 integrates AC power input, DC digital inputs, and relay outputs into a single compact housing — making it ideal for distributed control architectures in space-constrained control cabinets. Its relay output stage provides galvanic isolation between the control logic and field devices, a critical safety feature when interfacing with high-voltage actuators, solenoid valves, motor starters, and industrial contactors in hazardous or electrically noisy environments.

In high-vibration applications such as mining conveyors, offshore drilling platforms, and heavy press lines, the module’s robust mechanical construction and conformal-coated PCB resist the ingress of conductive particles and moisture. This makes the 6ES7216-2AD23-0XB8 a trusted choice for plant engineers who cannot afford field failures between scheduled maintenance windows.

Rugged Specifications Table

Comprehensive Protection Solutions

The 6ES7216-2AD23-0XB8 rarely operates in isolation. In a fully integrated S7-200 control system, it works in concert with a range of expansion and protection components to deliver system-wide resilience. Digital I/O expansion modules such as the EM 223 DC/DC/DC and EM 222 Relay Output extend the CPU’s I/O capacity for larger process control loops, while analog modules like the EM 235 Analog Combo handle precision signal conditioning for temperature transmitters, pressure transducers, and flow meters in process industries.

For communication-intensive installations, the CP 243-1 Ethernet Module and CP 243-2 AS-Interface Master extend the S7-200 network reach to PROFINET and AS-i field bus topologies, enabling seamless integration with SCADA systems and distributed sensor networks. In control cabinets where the 6ES7216-2AD23-0XB8 is the central controller, it is commonly paired with SITOP PSU100S 24 V DC power supplies to ensure a clean, regulated power rail — critical for maintaining CPU stability during grid fluctuations common in heavy industrial facilities.

Surge and transient protection is typically provided by DEHN or Phoenix Contact surge protection devices installed on the 24 V DC bus, while Siemens 3RT contactor and 3RV circuit breaker combinations protect downstream motor loads switched by the relay outputs. For safety-rated applications, the system can be extended with a SIRIUS 3SK1 Safety Relay Module to implement emergency-stop and safety gate monitoring circuits compliant with IEC 62061 and ISO 13849-1.

Terminal connectivity within the control cabinet is managed through Phoenix Contact or Weidmüller DIN-rail terminal blocks, ensuring secure, vibration-resistant field wiring terminations. Where the S7-200 communicates with variable frequency drives — such as the Siemens MICROMASTER 440 or SINAMICS G120 — the RS-485 Freeport protocol or USS communication library provides robust, noise-immune serial links even in high-EMI drive rooms.

Application in Critical Infrastructure

The Siemens 6ES7216-2AD23-0XB8 has established a strong track record across the most demanding sectors of critical infrastructure:

Oil & Gas: In upstream wellhead automation and midstream pipeline compression stations, this CPU module controls valve sequencing, pump interlocks, and emergency shutdown (ESD) logic. Its relay outputs directly drive solenoid valve coils and motor starter contactors, while its RS-485 ports communicate with remote I/O panels and SCADA RTUs over long cable runs in electrically noisy environments.

Mining & Mineral Processing: On conveyor drive systems, crusher controls, and flotation cell automation, the module withstands the constant vibration, coal dust, and high-humidity conditions of underground and open-cut mining operations. Its compact form factor allows installation in space-constrained local control panels mounted directly on mobile mining equipment.

Power Generation & Utilities: In thermal power plants and hydroelectric stations, the 6ES7216-2AD23-0XB8 manages auxiliary systems including cooling water pumps, lubrication oil systems, and fuel feed conveyors. Its IEC 61131-2 compliance ensures compatibility with the stringent electrical environment requirements of high-voltage switchgear rooms.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on this CPU for pump station automation, chemical dosing control, and UV disinfection system sequencing. The module’s resistance to high ambient humidity and chemical vapors makes it well-suited for wet-area control panels in treatment plants.

Metallurgy & Steel: In rolling mills, continuous casting lines, and furnace control systems, the module’s wide operating temperature range and vibration resistance allow reliable operation adjacent to high-temperature process equipment. It coordinates with SINAMICS drives and SIRIUS motor management relays to maintain precise speed and torque control on rolling stands and ladle transfer cars.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the 6ES7216-2AD23-0XB8?
All units supplied by TOPNLMS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. If a unit fails within the warranty period, we provide a free replacement or full refund. Our warranty process is straightforward — contact us with the order reference and a fault description, and we will arrange return logistics and expedited replacement to minimize your downtime.

Q2: How is each unit tested before shipment?
Every 6ES7216-2AD23-0XB8 unit undergoes a multi-stage pre-shipment inspection: visual inspection for physical damage, power-on functional test verifying CPU boot and I/O response, communication port verification on both RS-485 channels, and firmware version confirmation. Units that do not pass all test stages are quarantined and not dispatched. A test report is available upon request for quality-critical procurement processes.

Q3: Is this module compatible with existing S7-200 systems and STEP 7-Micro/WIN programming environments?
Yes. The 6ES7216-2AD23-0XB8 is fully backward-compatible with all SIMATIC S7-200 expansion modules (EM 2xx series) and is programmed using STEP 7-Micro/WIN V4.0 SP9 or later. It supports PPI, MPI, and Freeport communication protocols natively, ensuring seamless integration into existing S7-200 networks without hardware or software modifications. It is also compatible with third-party HMI panels that support the S7-200 PPI protocol.

Q4: Can TOPNLMS support long-term or repeat supply of this module?
Yes. TOPNLMS maintains dedicated stock of the 6ES7216-2AD23-0XB8 and other SIMATIC S7-200 series components to support ongoing maintenance, spare parts programs, and production line continuity for industrial customers. We understand that legacy PLC platforms require reliable long-term supply chains. For volume orders or scheduled delivery agreements, please contact our technical sales team to discuss pricing, lead times, and consignment stock arrangements.
