Siemens 6ES7155-6AU01-0CN0 Original Industrial Spare ET 200SP Compatible

Product Overview

Siemens 6ES7155-6AU01-0CN0 Original Industrial Spare ET 200SP Compatible: System Stability and Industrial Spare Parts Maintenance Value

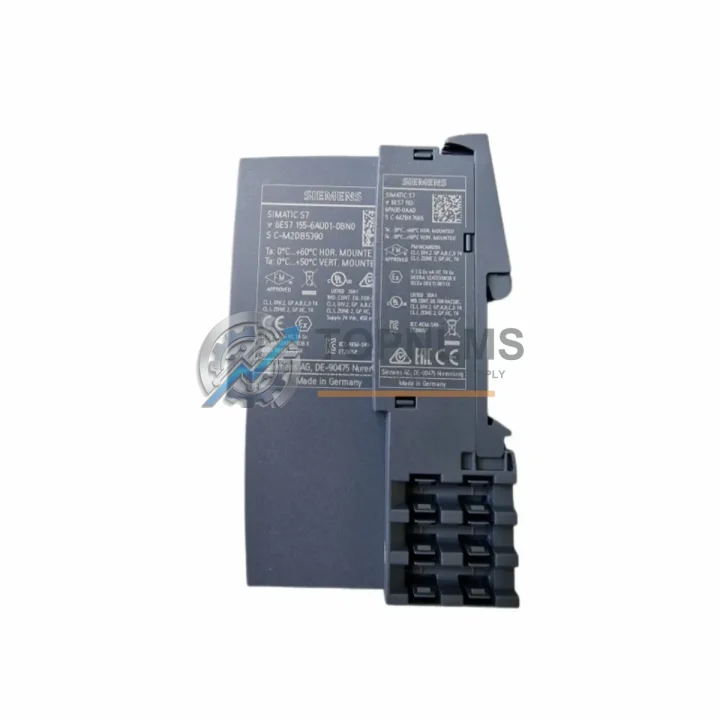

The Siemens 6ES7155-6AU01-0CN0 is the IM155-6PN/2 HF PROFINET Interface Module for the ET 200SP distributed I/O system, designed to integrate seamlessly with Siemens S7-1500 and S7-1200 PLC platforms. As a high-feature (HF) variant, it supports PROFINET IRT (Isochronous Real-Time) communication, enabling deterministic, low-latency data exchange across demanding industrial networks. For maintenance engineers and procurement teams managing aging automation infrastructure, securing an original replacement unit of the 6ES7155-6AU01-0CN0 is a foundational step in preserving system uptime, reducing unplanned downtime, and extending the operational life of existing control architectures.

In modern manufacturing, process, and utility environments, the ET 200SP station serves as the nerve center of distributed field I/O. When the interface module fails or degrades, the entire I/O station loses communication with the controller — halting production lines, triggering safety shutdowns, and initiating costly emergency maintenance cycles. Stocking a verified original 6ES7155-6AU01-0CN0 as a critical spare eliminates the most dangerous single point of failure in your ET 200SP architecture.

Critical Technical Specs Table

Preventive Maintenance Strategy

A disciplined preventive maintenance program for ET 200SP-based control systems goes well beyond replacing the interface module itself. When scheduling a planned outage to inspect or replace the 6ES7155-6AU01-0CN0, experienced maintenance teams use the opportunity to audit the entire station and associated electrical cabinet for wear, contamination, and component aging.

Begin with the BaseUnit BU15-P16+A10+2D (6ES7193-6BP20-0DA0) — the mounting base that carries the interface module. Inspect the push-in terminal contacts for oxidation and confirm the bus connector integrity. A degraded BaseUnit can cause intermittent communication faults that are frequently misdiagnosed as interface module failures. Simultaneously, verify the 24 V DC power supply module feeding the ET 200SP station; Siemens SITOP PSU8200 or equivalent units should be load-tested and their output ripple measured, as aging power supplies are a leading cause of spurious PROFINET disconnects.

Within the same I/O station, inspect the installed digital input modules (e.g., 6ES7131-6BF01-0BA0, DI 8×24VDC HF) and digital output modules (e.g., 6ES7132-6BF01-0BA0, DQ 8×24VDC/0.5A HF) for channel-level faults logged in the TIA Portal diagnostics buffer. Channels showing recurring errors under load are candidates for proactive replacement before they cause process interruptions. If the station includes analog input modules such as the 6ES7134-6GD01-0BA1 (AI 4×U/I/RTD/TC ST), calibrate and verify signal accuracy against known reference sources — analog drift is common in high-temperature cabinet environments.

For stations deployed in motion or drive applications, check the technology modules (e.g., 6ES7138-6AA01-0BA0, TM Count 1×24V) for encoder signal integrity and counter overflow events. In communication-intensive architectures, the CM DP communication module (6ES7137-6AA00-0BA0) should be inspected for PROFIBUS error counters if the station bridges legacy DP networks. Additionally, review the server module (6ES7193-6PA00-0AA0) at the end of the station — a missing or damaged server module can prevent the station from initializing correctly after a power cycle.

At the cabinet level, inspect terminal blocks and wiring harnesses connected to field sensors and actuators. Loose or corroded terminals on Phoenix Contact or Weidmüller-style terminal strips are a frequent source of intermittent I/O faults that generate false diagnostics. Finally, verify the PROFINET patch cables connecting the ET 200SP station to the network switch or controller — industrial-grade Cat 6 cables with IP20 RJ45 connectors should be tested for continuity and replaced if the outer jacket shows cracking or abrasion.

Strategic Replacement Solutions

The 6ES7155-6AU01-0CN0 supersedes earlier ET 200SP interface module variants, including the 6ES7155-6AU00-0CN0 (IM155-6PN/2 ST, Standard variant). Facilities still operating on the ST variant can upgrade to the HF module without hardware reconfiguration, gaining IRT support, shared device capability, and extended temperature range — all within the same physical footprint and BaseUnit compatibility. This makes the 6ES7155-6AU01-0CN0 an ideal drop-in upgrade for aging ET 200SP stations that require improved network determinism for motion-synchronized or safety-adjacent applications.

For plants running legacy S7-300 or S7-400 systems with ET 200M or ET 200S distributed I/O, migrating field stations to ET 200SP with the IM155-6PN/2 HF interface module provides a cost-effective modernization path. The ET 200SP’s compact form factor reduces cabinet space requirements by up to 50% compared to ET 200M, while the PROFINET HF interface ensures full compatibility with TIA Portal V16 and later engineering environments. Replacement projects can be staged by station, minimizing production disruption and capital expenditure in any single maintenance window.

When sourcing replacement units, always verify the firmware version compatibility with your TIA Portal project. The 6ES7155-6AU01-0CN0 supports firmware updates via PROFINET, allowing field upgrades without module removal. Each unit supplied by TOPNLMS is tested for communication integrity, firmware operability, and power supply response before shipment, ensuring plug-and-play replacement in live production environments.

Support FAQ

Q1: Is the 6ES7155-6AU01-0CN0 a direct replacement for the 6ES7155-6AU00-0CN0?
Yes. The 6ES7155-6AU01-0CN0 (IM155-6PN/2 HF) is the successor to the 6ES7155-6AU00-0CN0 (IM155-6PN/2 ST) and is mechanically and electrically compatible with the same BaseUnit. The HF variant adds IRT support, shared device functionality, and a wider operating temperature range. No hardware changes to the ET 200SP station are required for this upgrade.

Q2: What pre-shipment testing is performed on each unit?
Every 6ES7155-6AU01-0CN0 unit is powered on, connected to a PROFINET test network, and verified for successful module initialization, firmware version confirmation, and PROFINET communication response before packaging. Units that fail any test stage are quarantined and not shipped. A 12-month warranty covers all units against manufacturing defects and functional failure under normal operating conditions.

Q3: How should I manage spare inventory for ET 200SP interface modules?
For facilities operating 5 or more ET 200SP stations, maintaining a minimum of 1–2 spare IM155-6PN/2 HF units on-site is recommended. Interface modules are the highest-criticality component in the ET 200SP station — their failure takes the entire station offline. Given typical lead times for industrial automation components, on-site spares eliminate the risk of extended downtime during procurement. For multi-site operations, a centralized regional spare pool with documented allocation procedures is the preferred strategy.

Q4: Can the 6ES7155-6AU01-0CN0 be used in a shared device configuration with two S7-1500 controllers?
Yes. The IM155-6PN/2 HF supports the PROFINET shared device feature, allowing up to 2 IO controllers to access different I/O modules within the same ET 200SP station simultaneously. This is particularly valuable in safety-integrated architectures where a standard S7-1500 and an S7-1500F (fail-safe) controller share field I/O. Configuration is performed entirely within TIA Portal and requires no additional hardware.
