Siemens 6ES7152-1AA00-0AB0 Original Spare ET 200X Compatible: System Stability and Industrial Spare Parts Maintenance Value

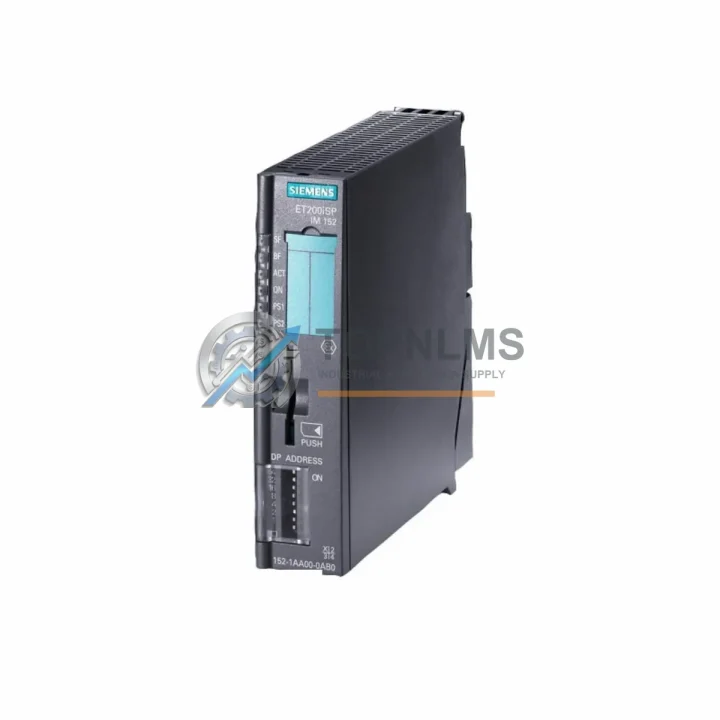

The Siemens 6ES7152-1AA00-0AB0, designated IM152-1, is the PROFIBUS DP interface module for the ET 200X distributed I/O system — a field-proven platform widely deployed in machine-level automation across automotive assembly, food and beverage processing, material handling, and discrete manufacturing. As an original Siemens spare part, this module serves as the communication backbone of the ET 200X station, establishing and maintaining the PROFIBUS DP connection between the field station and the upstream S7-300 or S7-400 PLC controller. Sourced, inspected, and dispatched by TOPNLMS, the 6ES7152-1AA00-0AB0 is available for immediate procurement to support planned maintenance shutdowns, emergency replacements, and long-term MRO inventory strategies.

In industrial environments where ET 200X stations are embedded directly into machines — often in IP65-rated enclosures mounted on the machine frame itself — the IM152-1 interface module is the single most critical component in the station. A failure of this module results in complete loss of communication for all downstream BM 141 digital input modules, BM 142 digital output modules, and BM 143 analog I/O modules connected to the same ET 200X backplane. Maintaining a qualified spare of the 6ES7152-1AA00-0AB0 in your maintenance stockroom is therefore a foundational element of any responsible spare parts strategy for PROFIBUS DP-based machine automation.

Critical Technical Specs Table

Preventive Maintenance Strategy

A structured preventive maintenance program for PROFIBUS DP-based ET 200X installations should treat the 6ES7152-1AA00-0AB0 IM152-1 as a Tier-1 critical spare — one that must be available on-site before a fault occurs, not ordered reactively after a line stoppage. During scheduled maintenance windows, technicians should inspect the IM152-1 alongside the full ET 200X station assembly, beginning with the ET 200X BM 141 digital input modules and BM 142 digital output modules that handle sensor and actuator signals at the machine level. Connector seating, DIP switch settings, and LED diagnostic indicators on the IM152-1 should all be verified against the station’s STEP 7 or TIA Portal hardware configuration.

The PROFIBUS DP cable connecting the IM152-1 to the upstream controller — typically a Siemens S7-300 CPU 315-2 DP or a CP 342-5 PROFIBUS communication processor — should be inspected for insulation damage, connector corrosion, and proper termination resistor status at both ends of the bus segment. A degraded PROFIBUS cable is frequently the root cause of intermittent IM152-1 communication faults that are misdiagnosed as module failures. Alongside the cable, the PROFIBUS DP bus connector (6ES7972-0BA52-0XA0) at the IM152-1 port should be checked for pin wear and replaced if contact resistance has increased.

Power supply integrity is equally critical. The Siemens SITOP PSU100S 24 V DC power supply feeding the ET 200X station should be load-tested during the maintenance window to confirm output voltage remains within the 20.4–28.8 V DC tolerance band under full I/O load. A marginal power supply that passes no-load inspection but sags under load is a common cause of IM152-1 resets and PROFIBUS DP communication interruptions. If the station includes analog I/O via a BM 143 analog module, signal quality should be verified with a calibrated process signal simulator to confirm that 4–20 mA loop integrity has not been compromised by supply voltage variation.

For stations that include motor starter or safety functions via BM 147/CPU modules or integrated Siemens 3RK1 motor starter modules, the maintenance inspection should extend to contactor wear, overload relay calibration, and safety circuit continuity. These components share the same 24 V DC supply rail as the IM152-1 and are subject to the same thermal and vibration stresses in machine-mounted enclosures. Documenting the condition of each component during the inspection — and cross-referencing against the station’s GSD-based hardware configuration in STEP 7 — creates an audit trail that supports both predictive maintenance scheduling and warranty claim substantiation.

Finally, the ET 200X terminal module connectors and DIN rail mounting hardware should be inspected for corrosion and mechanical integrity, particularly in food processing or chemical environments where cleaning agents may have infiltrated the IP65 enclosure seals. A complete spare kit — comprising the IM152-1 interface module, one BM 141, one BM 142, and a set of PROFIBUS bus connectors — stored in a labeled, ESD-safe container near the machine provides the fastest possible recovery path in the event of a multi-component failure during a production run.

Strategic Replacement Solutions

The Siemens 6ES7152-1AA00-0AB0 IM152-1 is a mature product within the ET 200X platform, which Siemens has progressively transitioned toward the newer ET 200SP and ET 200MP distributed I/O families. However, a large installed base of ET 200X stations remains in active service across global manufacturing facilities, and the demand for original IM152-1 spare parts continues to be driven by the economics of system life extension versus full migration.

For maintenance engineers managing legacy ET 200X installations, the strategic case for stocking original 6ES7152-1AA00-0AB0 modules is straightforward: a direct replacement requires no hardware reconfiguration, no GSD file update, no STEP 7 project modification, and no revalidation of the machine’s safety or functional logic. The replacement technician simply powers down the ET 200X station, swaps the IM152-1, sets the PROFIBUS address DIP switches to match the original configuration (documented in the station label or STEP 7 project), and restores power. In a well-documented maintenance environment, this procedure can be completed in under 15 minutes, minimizing production downtime to the absolute minimum.

For facilities planning a phased migration from ET 200X to ET 200SP, TOPNLMS recommends maintaining a 12–24 month buffer stock of IM152-1 modules to cover the transition period. During this window, new machine builds or major refurbishments can adopt the ET 200SP platform with Siemens IM 155-6 PN interface modules and PROFINET connectivity, while existing ET 200X stations continue to operate reliably on PROFIBUS DP with original spare parts support. This dual-track approach avoids the risk of a forced, unplanned migration triggered by spare parts unavailability — a scenario that typically results in significantly higher costs and longer downtime than a planned transition.

TOPNLMS maintains dedicated inventory of the 6ES7152-1AA00-0AB0 and related ET 200X components to support both emergency replacement and planned MRO procurement. All units are sourced from verified supply channels, inspected against Siemens published specifications, and dispatched with full traceability documentation. For customers with multiple ET 200X installations across several facilities, consolidated blanket purchase orders and scheduled delivery programs are available to optimize inventory carrying costs while ensuring parts availability at each site.
