Siemens 6ES7151-8FB01-0AB0 Original Industrial Spare ET 200S Compatible

Product Overview

Siemens 6ES7151-8FB01-0AB0 Original Industrial Spare ET 200S Compatible: System Stability and Industrial Spare Maintenance Value

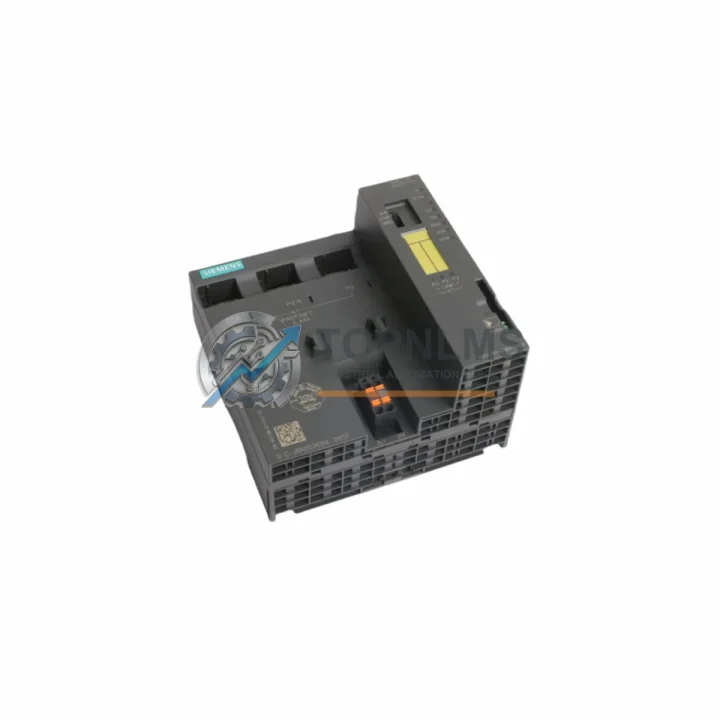

The Siemens 6ES7151-8FB01-0AB0 is the IM 151-8F PN/DP F-CPU interface module for the SIMATIC ET 200S distributed I/O system — a safety-rated controller designed for demanding industrial environments where functional safety (SIL 3 / PLe) and system uptime are non-negotiable. As a genuine original spare part, this module is a critical asset for maintenance engineers managing safety-integrated production lines, process automation cells, and legacy SIMATIC S7-300/S7-400 architectures that rely on the ET 200S platform for distributed field-level control.

In modern industrial facilities, the ET 200S IM 151-8F PN/DP F-CPU serves as the brain of the distributed safety I/O station. It communicates over PROFINET IO and PROFIBUS DP simultaneously, enabling seamless integration into both legacy and modern control architectures. When this module fails or degrades, the entire safety zone it governs can be forced into a safe-stop state, triggering unplanned downtime that cascades across production. Holding a verified original spare — the 6ES7151-8FB01-0AB0 — in your maintenance inventory is the single most effective way to reduce mean time to repair (MTTR) for safety-critical stations.

Critical Technical Specs Table

Preventive Maintenance Strategy

A proactive maintenance strategy for any ET 200S safety station built around the 6ES7151-8FB01-0AB0 must account for the full ecosystem of components that share the same control cabinet, power rail, and safety loop. During scheduled shutdowns or annual inspections, maintenance teams should treat the IM 151-8F PN/DP F-CPU replacement as the trigger for a comprehensive station audit.

Begin with the power supply module — typically a PM-E DC 24V (6ES7138-4CA01-0AA0) — which feeds the ET 200S backplane. A degraded power module can cause intermittent F-CPU resets that mimic CPU faults, leading to misdiagnosis. Inspect and replace the power module proactively if it has been in service for more than five years.

Next, audit the digital safety I/O modules installed in the station. Modules such as the 4 F-DI (6ES7138-4FA04-0AB0) and 4 F-DO (6ES7138-4FB03-0AB0) are the functional endpoints of the safety loop. Their internal diagnostics are only as reliable as the F-CPU that reads them — replacing the IM 151-8F F-CPU without verifying the F-DI/F-DO modules leaves latent faults undetected.

The terminal modules (e.g., TM-E15S26-A1, 6ES7193-4CA40-0AA0) that mechanically and electrically connect each I/O module to the rail should be inspected for contact oxidation and mechanical wear. These passive components are often overlooked but are a common source of intermittent signal faults in high-vibration environments.

For stations communicating over PROFIBUS DP, inspect the PROFIBUS connector and cable assembly (e.g., 6ES7972-0BB52-0XA0 bus connector with integrated termination resistor). A degraded bus termination is a leading cause of sporadic DP communication errors that can trigger F-CPU safe-state transitions.

If the station is integrated into a PROFINET network, verify the integrity of the Industrial Ethernet switch and patch cables feeding the IM 151-8F PN port. Managed switches such as the SCALANCE X208 (6GK5208-0BA10-2AA3) provide port-level diagnostics that can identify marginal links before they cause communication timeouts.

Finally, review the 24 V DC distribution fuse modules (e.g., 3NW6 series) protecting the ET 200S station supply. A blown or weakened fuse protecting the IM 151-8F supply rail will cause a hard CPU stop. Stocking a set of replacement fuse elements alongside the 6ES7151-8FB01-0AB0 ensures a complete station recovery kit is always available.

For facilities running multiple ET 200S stations, consider maintaining a spare IM 151-8F PN/DP F-CPU pre-loaded with the current safety program backup. This hot-spare strategy — combined with regular STEP 7 Safety program exports stored on a secure network drive — reduces replacement time from hours to under 30 minutes.

Strategic Replacement Solutions

The 6ES7151-8FB01-0AB0 is a direct original replacement for aging IM 151-8F PN/DP F-CPU modules that have reached end of their service life. Unlike third-party alternatives, the original Siemens module preserves full compatibility with STEP 7 Safety V5.x and TIA Portal Safety Advanced project configurations without requiring re-validation of the safety function — a critical advantage in regulated industries (automotive, chemical, food and beverage) where safety re-certification is time-consuming and costly.

For facilities transitioning from older ET 200S stations running IM 151-1 or IM 151-3 PN interface modules, the IM 151-8F PN/DP F-CPU upgrade path consolidates standard and safety I/O into a single station, reducing cabinet footprint and simplifying wiring. This is particularly valuable in brownfield modernization projects where panel space is constrained and the cost of a full PLC migration is prohibitive.

The dual-port PROFINET/PROFIBUS capability of the 6ES7151-8FB01-0AB0 also makes it an ideal bridge module in hybrid networks where legacy PROFIBUS field devices — drives, valve islands, remote I/O — must coexist with modern PROFINET infrastructure. This eliminates the need for separate DP/PN link gateways, reducing both hardware cost and potential points of failure in the communication chain.

All units supplied by TOPNLMS are sourced from authorized channels, individually tested for electrical integrity and firmware version compatibility, and shipped with full documentation. Each module is verified against Siemens factory specifications before dispatch, ensuring drop-in replacement without additional commissioning overhead.

Support FAQ

Q1: Is the 6ES7151-8FB01-0AB0 compatible with my existing STEP 7 Safety project?
Yes. The IM 151-8F PN/DP F-CPU is fully compatible with STEP 7 Safety V5.4 SP5 and later, as well as TIA Portal Safety Advanced V13 and above (via legacy project import). No safety re-validation is required when replacing a like-for-like module with the same firmware version. We recommend confirming the firmware version of your existing module before ordering so we can match it precisely.

Q2: What is included in the 12-month warranty and what does pre-shipment testing cover?
Every 6ES7151-8FB01-0AB0 unit undergoes electrical power-on testing, communication interface verification (PROFINET and PROFIBUS), and firmware version confirmation before shipment. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage, or environmental conditions outside the specified range. Warranty claims are processed within 5 business days of receipt of the returned unit.

Q3: How should I manage spare part inventory for ET 200S F-CPU modules in a multi-line facility?
For facilities with 3 or more ET 200S safety stations, we recommend maintaining a minimum of one spare IM 151-8F PN/DP F-CPU per 5 stations, pre-programmed with the latest validated safety program backup. Pair this with a documented replacement procedure and a station-level spare kit (power module, key F-DI/F-DO modules, terminal modules, and bus connectors) to achieve sub-30-minute recovery times for any single-station failure.

Q4: Can this module extend the life of an ET 200S station that Siemens has declared end-of-life?
Yes. The 6ES7151-8FB01-0AB0 is an original Siemens module and remains fully functional in existing ET 200S stations regardless of the product’s commercial lifecycle status. Many industrial facilities operate validated safety systems for 15–20 years, and sourcing original spare parts from specialist distributors like TOPNLMS is the standard strategy for extending system life without triggering a full safety re-certification. We maintain stock specifically to support long-term maintenance of installed ET 200S bases.
