Siemens 6ES7151-3BA23-0AB0 Replacement for ET 200S PN: Seamless PROFINET Migration & Upgrade Solution

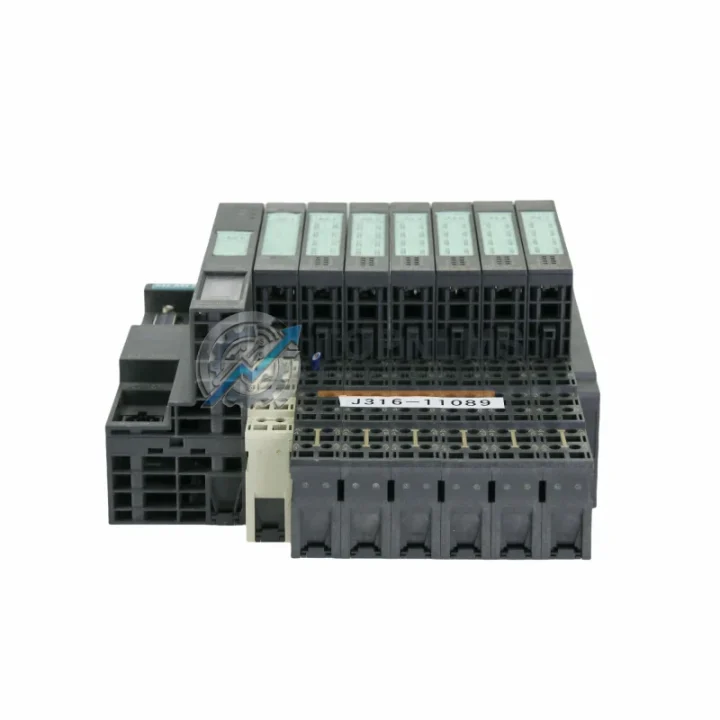

The Siemens 6ES7151-3BA23-0AB0 is the IM151-3 PN (Standard) Interface Module for the ET 200S distributed I/O station, enabling PROFINET IO communication between the field-level I/O rack and a SIMATIC S7-300, S7-400, or S7-1500 controller. As legacy ET 200S installations age and original IM151-3 PN units reach end-of-life or become difficult to source, plant engineers increasingly require a verified, drop-in replacement that preserves existing wiring, rack geometry, and PROFINET device names without forcing a full system redesign.

TOPNLMS maintains ready stock of the 6ES7151-3BA23-0AB0 and its compatible successors, fully tested and shipped with a 12-month warranty. Every unit undergoes pre-shipment functional verification to confirm PROFINET IO communication, device name assignment, and power-rail integrity before leaving our facility in Xiamen.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful ET 200S PROFINET migration rarely involves replacing the interface module in isolation. In practice, the 6ES7151-3BA23-0AB0 upgrade is part of a broader modernization effort that touches multiple components within the same control cabinet or distributed I/O station.

The most common starting point is the power module. The existing 6ES7138-4CA01-0AA0 PM-E 24VDC power module mounted on the ET 200S rail supplies 24 V DC to the I/O modules downstream. When replacing the interface module, engineers should verify that the PM-E’s output current rating still covers the updated I/O configuration — particularly if additional 4-channel digital output modules (6ES7132-4BD32-0AA0) or 2-channel analog input modules (6ES7134-4FB52-0AB0) are being added as part of the same retrofit.

On the network side, the 6ES7151-3BA23-0AB0 connects to the PROFINET IO controller — typically a SIMATIC S7-300 CPU 315-2 PN/DP (6ES7315-2EH14-0AB0) or, in modernized installations, a SIMATIC S7-1500 CPU 1515-2 PN (6ES7515-2AM02-0AB0). When migrating from an S7-300 to an S7-1500 controller, the PROFINET device name and IP address of the ET 200S station are preserved in the TIA Portal hardware configuration, meaning the 6ES7151-3BA23-0AB0 replacement module can be commissioned without modifying the existing field wiring or I/O addressing.

For installations where the ET 200S station communicates over a managed PROFINET ring topology, a SCALANCE X208 (6GK5208-0BA10-2AA3) industrial Ethernet switch is often present in the same cabinet. Replacing the interface module does not require reconfiguring the switch, as the PROFINET device name and MAC address are reassigned during commissioning via TIA Portal’s online device replacement function.

Safety-rated stations incorporating F-I/O modules such as the 6ES7138-4FA04-0AB0 F-PM-E fail-safe power module require particular attention during the swap. The F-signature and safety program in the S7-300F or S7-1500F controller must be re-accepted after the interface module is replaced, even if no safety logic changes are made. TOPNLMS recommends scheduling this step during a planned maintenance window to avoid unintended safety shutdowns.

In motor-starter applications, the ET 200S station may host DS1e-x motor starter modules (6ES7138-4DA04-0AB0) controlling 400 V AC loads. These modules communicate exclusively through the ET 200S backplane and are unaffected by the interface module replacement — their parameter sets, overload thresholds, and interlocking logic remain intact after the new 6ES7151-3BA23-0AB0 is installed and the PROFINET connection is re-established.

Finally, for sites upgrading from older IM151-1 (6ES7151-1AA06-0AB0) PROFIBUS-based ET 200S head stations to PROFINET, the 6ES7151-3BA23-0AB0 is the direct migration path. The physical I/O modules, terminal modules, and wiring remain unchanged; only the head station and the controller’s communication module (e.g., replacing a CP 342-5 PROFIBUS CP (6GK7342-5DA02-0XE0) with a PROFINET-capable CPU or CP) need to be updated.

Retrofit Guidance FAQ

Q: Can I replace the 6ES7151-3BA23-0AB0 without modifying my existing field wiring?
Yes. The IM151-3 PN mounts on the ET 200S head station slot and connects to the backplane rail. All field wiring terminates on the individual I/O terminal modules, which remain in place. Only the PROFINET RJ45 cable needs to be reconnected to the new module’s port.

Q: Do I need to update my STEP 7 or TIA Portal project after the replacement?
For a like-for-like replacement of the same order number, no hardware configuration change is required. Simply use TIA Portal’s “Replace module” function online, reassign the PROFINET device name via DCP, and download the existing configuration. If upgrading to an IRT-capable variant, update the GSDML file and re-download the hardware configuration.

Q: Is the PROFINET device name retained after replacement?
No — a new module ships without a device name. You must reassign the device name using TIA Portal’s “Assign device name” function (online, via PROFINET DCP). This takes less than two minutes and does not require any program changes.

Q: What is the maximum number of I/O modules supported per ET 200S station?
The IM151-3 PN (Standard) supports up to 63 I/O modules per station, with a maximum of 244 bytes of input data and 244 bytes of output data. Verify your existing I/O count before adding modules during the retrofit.

Q: Can this module operate in an IRT (Isochronous Real-Time) PROFINET network?
The 6ES7151-3BA23-0AB0 (Standard variant) supports RT communication only. For IRT requirements (e.g., motion control applications with SINAMICS drives), the IM151-3 PN High Feature variant (6ES7151-3BA60-0AB0) is required. TOPNLMS stocks both variants.

Q: What physical space does the module occupy in the cabinet?
The IM151-3 PN occupies the standard ET 200S head station position on the terminal module rail. No additional DIN rail space is required beyond the existing head station footprint. Cabinet layout is unchanged.

Warranty Assurance

Every 6ES7151-3BA23-0AB0 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Our pre-shipment test protocol includes:

• PROFINET IO communication verification (device name assignment, cyclic data exchange)
• Power rail continuity and 24 V DC input integrity check
• Backplane connector inspection and cleaning
• Firmware version verification against Siemens release notes
• Visual and mechanical inspection for transit damage

In the event of a DOA (Dead on Arrival) unit, TOPNLMS will dispatch a replacement within 3 business days upon confirmation of the fault. For warranty claims arising during the 12-month coverage period, our technical team will assess the failure remotely and arrange return logistics at no cost to the buyer.
