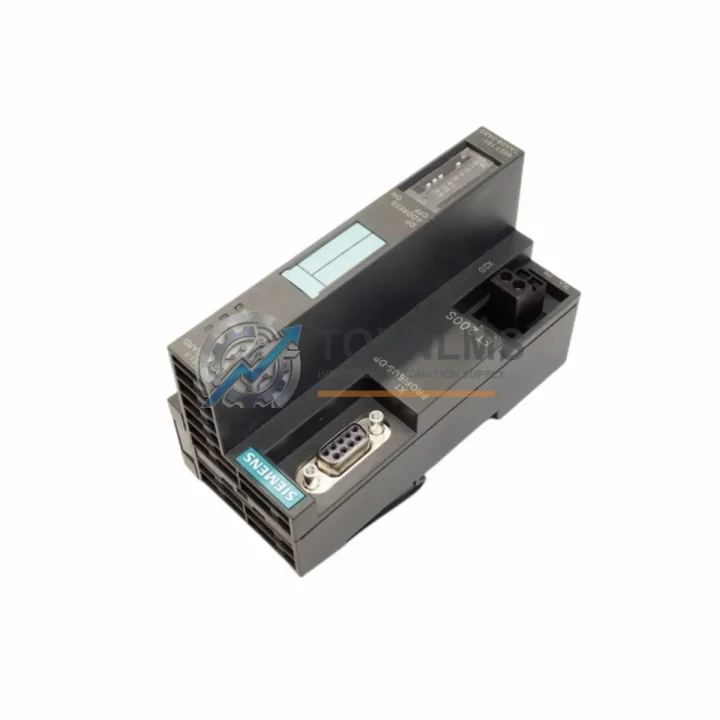

Siemens 6ES7151-1AA06-0AB0 Replacement & Upgrade Solution for ET200S IM151-1 PROFIBUS DP

The Siemens 6ES7151-1AA06-0AB0 is the IM151-1 Standard Interface Module for the ET200S distributed I/O system, communicating via PROFIBUS DP at up to 12 Mbit/s. As Siemens progressively transitions its automation portfolio toward PROFINET-based architectures, many facilities running legacy SIMATIC S7-300 or S7-400 controllers with ET200S stations are now evaluating their options: continue sourcing original spare parts, or plan a structured migration to the ET200SP or ET200MP platform.

TOPNLMS maintains verified stock of the 6ES7151-1AA06-0AB0 to support both strategies. Whether you need an immediate drop-in replacement to restore a failed station or are planning a phased upgrade across multiple control cabinets, this module ships with full functional testing documentation and a 12-month warranty.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful ET200S station restoration or migration involves more than the interface module itself. When replacing a failed 6ES7151-1AA06-0AB0, engineers frequently discover that adjacent components also require attention. The PM-E DC24V power module (6ES7138-4CA01-0AA0) is the most common companion part — it supplies the ET200S I/O bus and should be inspected or replaced simultaneously to avoid repeat failures.

For stations with digital I/O, the 2DI DC24V HF (6ES7131-4BB01-0AB0) and 2DO DC24V/2A HF (6ES7132-4BB01-0AB0) modules are standard building blocks that share the same terminal module footprint, making them straightforward to swap without rewiring. Analog signal chains typically rely on the 2AI I 2-/4-wire ST (6ES7134-4GB01-0AB0) for current-loop inputs, and these modules must be reconfigured in STEP 7 or TIA Portal after any interface module replacement to restore correct scaling and diagnostics.

Communication integrity across the PROFIBUS segment depends on proper termination. If your installation uses the PROFIBUS connector 6ES7972-0BB52-0XA0 with integrated termination resistors, verify termination status at both ends of the segment after module swap — a common source of intermittent faults post-replacement. For longer cable runs or noisy environments, the RS485 repeater 6ES7972-0AA02-0XA0 may already be present in the cabinet and should be checked for firmware compatibility.

Facilities planning a broader migration from S7-300 to S7-1500 architecture will need to account for the CPU 1516-3 PN/DP (6ES7516-3AN02-0AB0) or similar S7-1500 controllers, which support both PROFIBUS DP (via integrated DP port) and PROFINET IO simultaneously — enabling a phased migration where existing ET200S PROFIBUS stations remain operational while new ET200SP PROFINET stations are commissioned in parallel. The SIMATIC HMI TP1200 Comfort (6AV2124-0MC01-0AX0) is a common panel upgrade in the same modernization projects, replacing older OP/TP panels without requiring cabinet redesign.

For facilities that cannot tolerate extended downtime, maintaining a cold-spare 6ES7151-1AA06-0AB0 alongside a tested PM-E power module and a set of I/O modules covers the majority of ET200S station failure scenarios and allows restoration within minutes rather than days.

Retrofit Guidance FAQ

Q: Can I replace the 6ES7151-1AA06-0AB0 without rewiring the terminal modules?
A: Yes. The IM151-1 Standard mounts on the TM-IM/IM terminal module, which remains in place during replacement. All field wiring stays connected to the downstream I/O terminal modules. Only the interface module itself is swapped, making this a tool-minimal, low-risk replacement that typically takes under 15 minutes on a de-energized station.

Q: Do I need to update the STEP 7 or TIA Portal project after replacement?
A: For a like-for-like replacement (same order number), no hardware configuration changes are required. The DP address is stored on the module and must be set via the address switch on the new unit to match the original. If replacing an older firmware revision (e.g., 6ES7151-1AA03-0AB0 or 6ES7151-1AA04-0AB0), verify GSD file compatibility in your hardware catalog before downloading the configuration.

Q: What PROFIBUS baud rates are supported?
A: The 6ES7151-1AA06-0AB0 auto-detects baud rates from 9.6 kbit/s up to 12 Mbit/s. No manual baud rate configuration is required — the module synchronizes to the master’s baud rate automatically on power-up.

Q: Is this module compatible with S7-300, S7-400, and S7-1500 PROFIBUS DP masters?
A: Yes. The ET200S IM151-1 operates as a standard DP slave and is compatible with any PROFIBUS DP master, including SIMATIC S7-300 CP 342-5, S7-400 CP 443-5, S7-1500 integrated DP port, and third-party masters conforming to IEC 61158.

Q: How do I handle the physical address switch after replacement?
A: The PROFIBUS node address is set via a rotary switch on the front of the IM151-1. Before powering up the replacement module, set the address switch to match the original station address (visible in your STEP 7 hardware configuration or on the old module’s label). Mismatched addresses will cause the DP master to report a station failure.

Q: Can this module be used in a mixed ET200S station with both digital and analog I/O?
A: Yes. The IM151-1 Standard supports mixed I/O configurations including digital input, digital output, analog input, analog output, and technology modules (e.g., counter, SSI encoder) within the same station, up to the maximum of 63 I/O modules and the station’s power budget.

Warranty Assurance

Every 6ES7151-1AA06-0AB0 unit shipped by TOPNLMS undergoes a pre-shipment functional test covering power-up initialization, PROFIBUS DP communication handshake, and I/O bus integrity verification. Units are shipped with test records available on request.

• 12-Month Warranty: Covers manufacturing defects and functional failures under normal operating conditions from the date of shipment.
• DOA Policy: Dead-on-arrival units are replaced or refunded within 5 business days of confirmed fault report, with return shipping covered by TOPNLMS.
• Replacement Support: Our technical team can assist with address switch configuration, GSD file selection, and STEP 7 / TIA Portal hardware catalog guidance.
• Shipment: In-stock units ship within 1–3 business days from Xiamen, China. Express DHL/FedEx options available for urgent requirements.
• Procurement Assurance: All units are sourced through verified supply channels. Certificates of conformity and traceability documentation available for regulated industries.
