Siemens 6ES7137-6EA00-0BA0 Original Industrial Spare ET 200SP Compatible: Sustaining System Stability in Demanding Environments

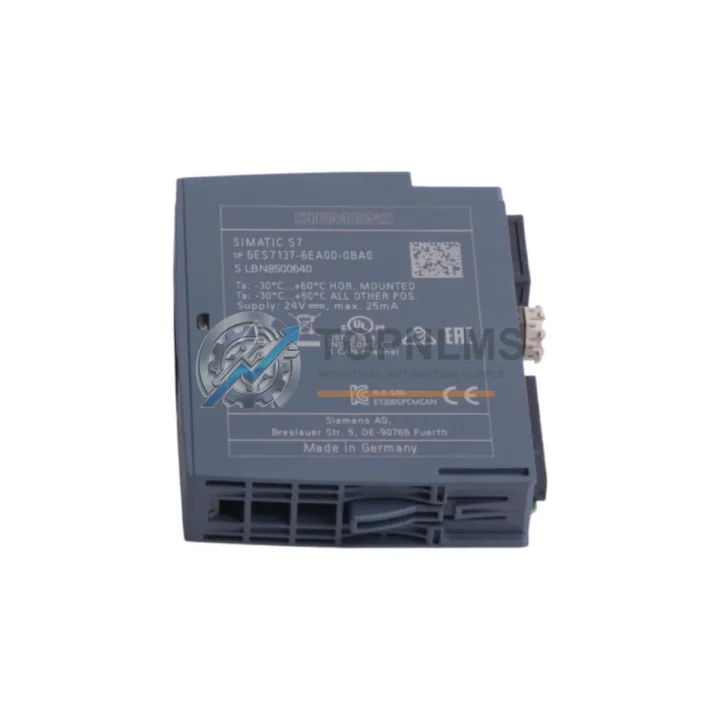

The Siemens 6ES7137-6EA00-0BA0 is a CM PTP (Communication Module Point-to-Point) designed for the ET 200SP distributed I/O system, supporting RS-422 and RS-485 serial communication protocols. In modern industrial facilities — from automotive assembly lines to chemical processing plants — serial communication links remain the backbone of legacy SCADA integrations, drive parameter transfers, and third-party device interfacing. When this module fails or degrades, the consequences extend far beyond a single cabinet: production halts, diagnostic windows close, and maintenance teams face mounting pressure to restore operations with minimal downtime.

Stocking a verified original 6ES7137-6EA00-0BA0 as a ready-to-deploy spare is one of the most cost-effective decisions a maintenance engineer can make. This module ships fully tested, backed by a 12-month warranty, and is confirmed compatible with the ET 200SP platform — ensuring a drop-in replacement without firmware conflicts or re-engineering effort.

Critical Technical Specs

Preventive Maintenance Strategy

Serial communication faults rarely occur in isolation. In most ET 200SP installations, the 6ES7137-6EA00-0BA0 operates within a tightly coupled electrical environment where the health of adjacent modules directly affects communication reliability. A structured preventive maintenance approach — rather than reactive replacement — significantly reduces unplanned downtime and extends the operational life of the entire control cabinet.

When scheduling a planned inspection or module swap for the 6ES7137-6EA00-0BA0, maintenance teams should simultaneously audit the ET 200SP BaseUnit (6ES7193-6BP00-0BA0), as a degraded base unit can cause intermittent bus errors that mimic CM PTP faults. The ET 200SP interface module IM 155-6 PN ST (6ES7155-6AU01-0BN0) should also be checked for firmware currency and connector integrity, since all distributed I/O traffic — including serial data routed through the CM PTP — passes through this gateway.

Power quality is a frequent root cause of communication module failures. Inspecting the SITOP PSU100S 24V DC power supply feeding the ET 200SP rail, along with any 6ES7138-6AA01-0BA0 PM-E power modules in the segment, ensures the CM PTP receives stable voltage within its operating tolerance. Voltage sags or ripple on the 24 V bus can corrupt serial frames and trigger false diagnostics.

For cabinets where the CM PTP interfaces with variable frequency drives or third-party PLCs via RS-485, the signal cable shielding and terminal connections at the 6ES7193-6BP20-0BA0 BaseUnit should be inspected for oxidation and loose terminations. In high-vibration environments, adding 6ES7590-1AB60-0AA0 shield connecting elements reduces EMI-induced communication errors. Simultaneously, reviewing the 6ES7131-6BF01-0BA0 DI 8×24VDC HF digital input modules in the same cabinet confirms that no cross-wiring or ground loop is introducing noise into the serial circuit.

Where the ET 200SP system integrates with SIMATIC S7-1500 controllers, verifying the health of the CPU 1512SP-1 PN (6ES7512-1DK01-0AB0) and its PROFINET connection to the IM 155-6 is essential before concluding that the CM PTP module itself is the fault source. Many field engineers have replaced communication modules unnecessarily due to undiagnosed PROFINET latency issues upstream. A complete cabinet inspection — covering the CM PTP, interface module, power supply, base units, and digital I/O modules — transforms a reactive repair into a proactive maintenance event that protects system uptime for the next 12–24 months.

Strategic Replacement Solutions

The 6ES7137-6EA00-0BA0 is a direct replacement for aging CM PTP modules in ET 200SP systems that were originally commissioned in the early 2010s. Many facilities running SIMATIC ET 200SP with legacy RS-485 device networks — including barcode scanners, weighing systems, RFID readers, and third-party motor controllers — rely on this exact module to maintain protocol compatibility without redesigning the communication architecture.

Unlike generic third-party serial adapters, the original Siemens 6ES7137-6EA00-0BA0 integrates natively with TIA Portal V13 SP1 and later, supporting hardware configuration without manual GSD file imports. This eliminates a common source of commissioning errors during emergency replacements and allows maintenance personnel to restore communication within a single shift rather than over multiple days of re-engineering.

For facilities managing end-of-life SIMATIC S7-300 or S7-400 systems that previously used CP 340 or CP 341 communication processors, migrating serial device networks to an ET 200SP CM PTP architecture provides a forward-compatible path. The 6ES7137-6EA00-0BA0 supports the same Modbus RTU and 3964R protocols, preserving existing PLC program logic while moving to a more maintainable, modular hardware platform. This strategy extends the operational life of the broader control system by 5–10 years without requiring a full DCS migration.

Stocking two units of the 6ES7137-6EA00-0BA0 — one installed, one as a cold spare — is the recommended inventory posture for facilities with more than three ET 200SP stations on a single production line. The module’s compact form factor (15 mm wide) and low weight make it practical to store in a standard spare parts cabinet alongside other ET 200SP consumables.
