Siemens 6ES7134-6HB00-0CA1 Original Industrial Spare ET 200SP Compatible

Product Overview

Siemens 6ES7134-6HB00-0CA1 Original Industrial Spare ET 200SP Compatible: Ensuring System Stability in Demanding Industrial Environments

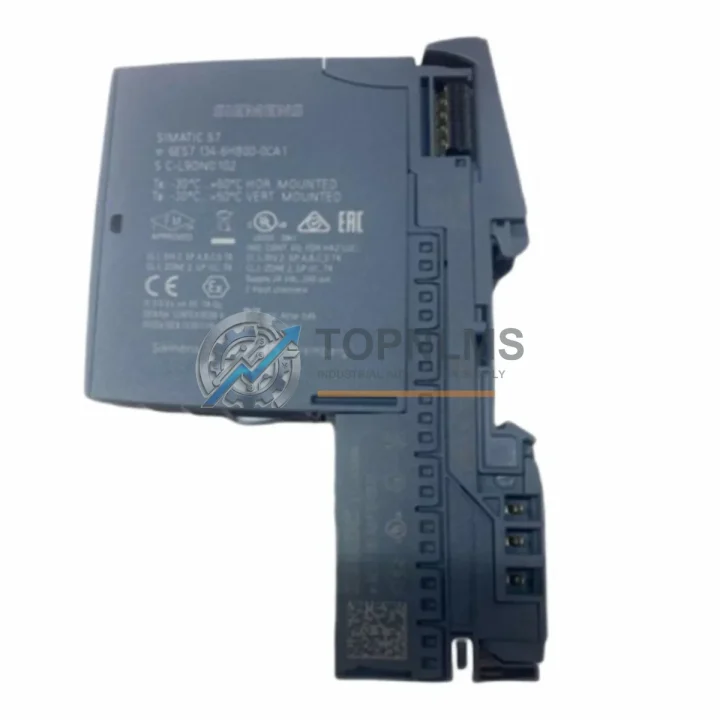

The Siemens 6ES7134-6HB00-0CA1 is a high-speed analog input module designed for the SIMATIC ET 200SP distributed I/O system, fully compatible with SIMATIC S7-1500 and S7-1200 controller platforms. As a genuine original spare part sourced directly from Siemens-authorized supply chains, this module is a critical component for maintaining uninterrupted production in process automation, machine building, and factory control applications. Whether you are managing a planned maintenance shutdown, responding to an unexpected fault, or building a strategic spare parts inventory, the 6ES7134-6HB00-0CA1 delivers the precision, speed, and compatibility your system demands.

In modern industrial facilities, analog signal acquisition is the backbone of process control. Temperature, pressure, flow, and position data all depend on reliable analog input channels. A failed or degraded analog input module can cascade into measurement errors, PID loop instability, and ultimately unplanned downtime — costing far more than the module itself. Keeping a verified original replacement on the shelf is not a luxury; it is a fundamental element of any mature maintenance strategy.

Critical Technical Specs

Preventive Maintenance Strategy

When scheduling a maintenance window around the 6ES7134-6HB00-0CA1, experienced maintenance engineers know that replacing a single module in isolation rarely tells the full story of a control cabinet’s health. The ET 200SP system is a tightly integrated distributed I/O architecture, and the analog input module operates in close dependency with several adjacent components that should be inspected — and ideally stocked — at the same time.

Begin with the ET 200SP BaseUnit (e.g., 6ES7193-6BP00-0BA0) on which the 6ES7134-6HB00-0CA1 is mounted. BaseUnits carry the backplane bus connections and push-in terminals; corrosion, mechanical stress, or repeated module swaps can degrade contact reliability over time. While the analog input module is removed, inspect the BaseUnit for discoloration, bent contacts, or terminal wear.

Next, verify the condition of the ET 200SP Interface Module (IM 155-6 PN series, e.g., 6ES7155-6AU01-0BN0). The IM module manages PROFINET communication between the ET 200SP station and the S7-1500 CPU. A degraded IM can cause intermittent diagnostic alarms that are often misattributed to the analog input module itself. Replacing the IM as part of a planned overhaul eliminates this diagnostic ambiguity.

The 24 V DC power supply module feeding the ET 200SP station — commonly a Siemens SITOP PSU100S or equivalent — should also be load-tested during the same maintenance cycle. Voltage ripple or marginal output capacity directly affects analog measurement accuracy, particularly in high-speed acquisition mode where the 6ES7134-6HB00-0CA1 samples at 62.5 µs per channel.

For facilities running mixed analog and digital I/O, it is prudent to simultaneously inspect the digital input modules (e.g., 6ES7131-6BH01-0BA0) and digital output modules (e.g., 6ES7132-6BH01-0BA0) installed in the same ET 200SP station. These modules share the same backplane bus and power distribution, and a fault in one can stress adjacent modules.

Signal integrity between field instruments and the analog input module depends heavily on the quality of shielded signal cables and terminal blocks. During replacement, inspect cable shields for continuity, check for ground loops, and verify that terminal screws are torqued to specification. Loose terminals are a leading cause of intermittent analog signal drift that is difficult to diagnose remotely.

If the 6ES7134-6HB00-0CA1 is used in a safety-instrumented or high-availability loop, consider also reviewing the signal isolator or barrier modules in the circuit. Zener barriers and galvanic isolators degrade over years of service and can introduce offset errors that appear as sensor drift rather than module failure.

Finally, for facilities managing aging SIMATIC S7-300 or S7-400 systems alongside newer S7-1500 infrastructure, maintaining cross-platform spare parts — such as SM 331 analog input modules (6ES7331-7KF02-0AB0) for legacy racks — ensures that a single maintenance team can service both generations without separate procurement cycles.

Strategic Replacement Solutions

The 6ES7134-6HB00-0CA1 is a direct, plug-and-play replacement for earlier ET 200SP analog input variants within the same BaseUnit footprint. Its high-speed 62.5 µs conversion time makes it particularly valuable in motion control, fast process loops, and condition monitoring applications where older, slower analog modules have become a bottleneck.

For facilities still operating legacy SIMATIC S7-300 systems with SM 331 or SM 334 analog input modules, migrating critical measurement loops to an ET 200SP distributed station with the 6ES7134-6HB00-0CA1 offers a practical path to system modernization without a full PLC replacement. The ET 200SP station connects via PROFINET to any S7-1500 or compatible CPU, preserving existing field wiring while delivering significantly improved resolution and speed.

Procurement teams should note that sourcing original Siemens modules — rather than third-party equivalents — eliminates compatibility risk during TIA Portal hardware configuration. The 6ES7134-6HB00-0CA1 is fully recognized by TIA Portal V15 and later, with no manual GSD file import required. This reduces commissioning time after replacement from hours to minutes, directly minimizing production downtime.

All units supplied by TOPNLMS are tested for electrical functionality prior to shipment, packaged in anti-static protective materials, and accompanied by a 12-month warranty. Expedited shipping options are available for emergency maintenance scenarios where production continuity cannot be delayed.

Support FAQ

Q1: Is the 6ES7134-6HB00-0CA1 compatible with my existing ET 200SP station?
The 6ES7134-6HB00-0CA1 is compatible with all ET 200SP BaseUnit type A0 slots and is supported by SIMATIC S7-1500, S7-1200, and ET 200SP CPU controllers running TIA Portal V13 SP1 or later. Verify your BaseUnit type (BU15-P16+A0+2D or equivalent) before installation. No firmware update is required for standard configurations.

Q2: What is the recommended spare parts stocking strategy for this module?
For production lines with more than four ET 200SP analog input channels, we recommend maintaining a minimum of one spare 6ES7134-6HB00-0CA1 per station. For critical process loops (e.g., temperature or pressure control), a 1:4 spare ratio is industry best practice. Modules stored in original anti-static packaging in a climate-controlled environment retain full functionality for 5+ years.

Q3: How is the module tested before shipment?
Every 6ES7134-6HB00-0CA1 unit is powered up and subjected to functional verification across all analog input channels prior to dispatch. Electrical parameters including input impedance, channel isolation, and conversion accuracy are verified against Siemens factory specifications. A test report is available upon request for quality-assurance documentation purposes.

Q4: What is covered under the 12-month warranty?
