Siemens 6ES7131-6BF01-0BA0 Replacement for ET 200SP: Seamless Migration & Upgrade Solution

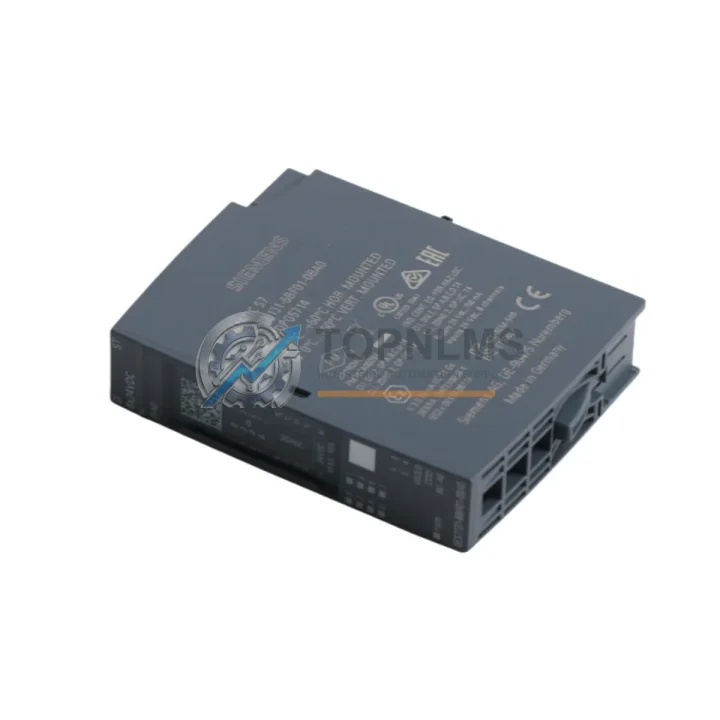

The Siemens 6ES7131-6BF01-0BA0 is an 8-channel digital input module for the ET 200SP distributed I/O system, rated at 24 V DC and designed for high-density field signal acquisition in demanding industrial environments. As legacy SIMATIC installations age and original spare parts become increasingly difficult to source, plant engineers and procurement teams are turning to verified replacement and upgrade solutions to maintain uptime without committing to a full system overhaul.

At TOPNLMS, we supply the 6ES7131-6BF01-0BA0 as a direct drop-in replacement for existing ET 200SP stations. Whether your facility is running a SIMATIC S7-1500 controller with distributed ET 200SP I/O nodes, or migrating from an older S7-300 or S7-400 architecture to a modern PROFINET-based topology, this module integrates without requiring changes to your existing base unit, terminal block wiring, or TIA Portal program logic.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration to or within the ET 200SP platform rarely involves a single module swap. In practice, field engineers replacing the 6ES7131-6BF01-0BA0 will typically also evaluate adjacent components in the same control cabinet or I/O station. The ET 200SP BaseUnit BU15-P16+A10+2D (6ES7193-6BP20-0BA0) is the standard carrier for this DI module and must be present in the station before the module can be installed — if the base unit is damaged or missing, it must be sourced alongside the input module.

For stations that have grown beyond their original I/O count, the ET 200SP Interface Module IM 155-6 PN ST (6ES7155-6AU01-0BN0) serves as the PROFINET head station, connecting the entire distributed I/O node to the S7-1500 CPU over a standard RJ45 PROFINET link. Facilities migrating from PROFIBUS-based ET 200S stations will need to plan for this interface module replacement as part of the protocol transition.

On the output side, the 6ES7132-6BF01-0BA0 8-channel digital output module (24 V DC / 0.5 A) is the natural companion to this DI module, sharing the same form factor, base unit type, and TIA Portal configuration workflow. Many retrofit projects replace both input and output modules simultaneously to standardize the station hardware revision level and simplify future maintenance.

Where analog signals are present — pressure transmitters, temperature sensors, or flow meters feeding 4–20 mA or 0–10 V signals — the ET 200SP AI module 6ES7134-6GD01-0BA1 (4-channel analog input, high-feature) integrates into the same station without additional hardware. Signal isolators such as the SITRANS I/P converter or third-party DIN-rail signal conditioners may be required when migrating from older non-isolated analog input cards.

Power supply integrity is critical in any retrofit. The SITOP PSU100S 24V/5A (6EP1333-2BA20) is a widely deployed 24 V DC rail power supply compatible with ET 200SP station power requirements. For larger cabinets with multiple ET 200SP nodes, the SITOP PSU8600 modular power supply system offers redundancy and load monitoring. Verifying that the existing 24 V supply rail can support the additional current draw of replacement modules is a mandatory pre-commissioning step.

Communication cabling between the S7-1500 CPU and the ET 200SP station uses standard PROFINET IE FC TP Standard Cable GP 2×2 with IE FC RJ45 Plug 180 connectors. When the migration involves relocating the I/O station or extending the PROFINET segment, pre-assembled PROFINET patch cables or field-assembled IE FC cables should be planned into the bill of materials.

For programming and commissioning, the SIMATIC S7 PC Adapter USB A2 (6ES7972-0CB20-0XA0) or a standard PROFINET-capable laptop with TIA Portal V16/V17 is sufficient for online diagnostics, firmware updates, and I/O forcing during startup. Engineers migrating from STEP 7 Classic should allow time for hardware configuration re-import and GSD file updates within TIA Portal before going live.

Retrofit Guidance FAQ

Q: Can I replace the 6ES7131-6BF01-0BA0 without modifying my TIA Portal program?
A: Yes, provided the replacement module carries the same firmware revision and hardware version. The ET 200SP supports hot-swap replacement — the module can be physically swapped while the station remains powered, and the CPU will automatically re-parameterize the new module using the stored configuration. No program download is required in most cases.

Q: Is this module compatible with PROFIBUS DP systems?
A: The 6ES7131-6BF01-0BA0 is a PROFINET-native module and does not directly support PROFIBUS DP. Facilities running legacy PROFIBUS ET 200S or ET 200M stations must replace the interface module with a PROFINET IM and reconfigure the network topology. The field wiring to the DI module itself remains unchanged.

Q: What BaseUnit is required for installation?
A: This module requires an ET 200SP BaseUnit of type A0 or B0 (light or dark). The BaseUnit provides the terminal block for field wiring and the backplane bus connection. If the existing BaseUnit is in good condition, only the I/O module itself needs to be replaced.

Q: Will the existing 24 V DC field wiring connect directly?
A: Yes. The push-in terminal design of the ET 200SP BaseUnit accepts standard 0.2–1.5 mm² conductors. No re-termination is required if the existing wiring gauge is within specification. Verify conductor cross-section and insulation strip length (8–9 mm) before reinserting into the push-in terminals.

Q: How much cabinet space does this module require?
A: The 6ES7131-6BF01-0BA0 occupies 15 mm of DIN rail width when mounted on its BaseUnit. This compact form factor is a significant advantage over legacy ET 200S modules (30–45 mm per slot), allowing higher I/O density in the same cabinet footprint during a retrofit.

Q: What is the input signal delay and filter time?
A: The module supports configurable input filter times from 0.05 ms to 20 ms via TIA Portal hardware configuration. The default filter time is 3.2 ms, suitable for most standard digital field devices including proximity switches, pushbuttons, and relay contacts.
