Siemens 6ES7131-4BD00-0AA0 Replacement for ET 200S: Seamless Migration & Upgrade Solution

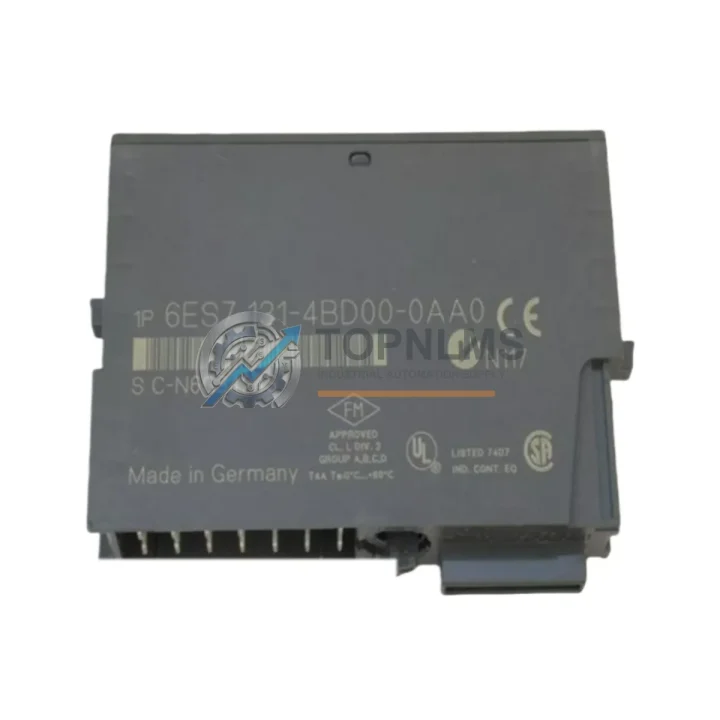

When your existing Siemens ET 200S distributed I/O station requires a digital input module replacement or your legacy 6ES7131-4BD00-0AA0 has reached end-of-life, a smooth, validated migration path is critical to minimizing production downtime. The Siemens 6ES7131-4BD00-0AA0 is a 4-channel digital input module rated at 24 VDC, designed for installation in the ET 200S modular I/O system. It slots directly into the ET 200S terminal module — specifically the 6ES7193-4CA30-0AA0 power terminal module or compatible base units — and communicates upstream via the ET 200S interface module, such as the 6ES7151-1BA02-0AB0 IM 151-1 PROFIBUS interface module or the 6ES7151-3BA23-0AB0 IM 151-3 PN PROFINET interface module, depending on your fieldbus architecture.

For plants running SIMATIC S7-300 or S7-400 controllers with PROFIBUS DP backbones, the 6ES7131-4BD00-0AA0 integrates without any GSD file changes when replacing a like-for-like unit. For facilities already migrating toward PROFINET and S7-1500 architectures, the module remains compatible when paired with the appropriate PN interface module, allowing a phased hardware upgrade without requiring a full I/O station redesign. This flexibility makes the 6ES7131-4BD00-0AA0 a preferred choice for retrofit projects where capital expenditure must be staged across multiple maintenance windows.

Field engineers frequently encounter this module in process automation panels alongside the 6ES7132-4BD02-0AA0 4-channel digital output module, forming a matched DI/DO pair within the same ET 200S rack. When replacing or expanding an existing station, sourcing both modules simultaneously reduces commissioning time and ensures consistent firmware baseline across the I/O tier. Similarly, analog signal conditioning tasks in the same cabinet often involve the 6ES7134-4FB01-0AB0 2-channel analog input module for 4–20 mA process signals, which shares the same terminal module footprint and installation procedure.

Power distribution within the ET 200S station is managed by dedicated power modules. The 6ES7138-4CA01-0AA0 PM-E 24 VDC power module segments the station bus voltage, and its correct placement relative to the 6ES7131-4BD00-0AA0 must be verified during any replacement to ensure the input module receives stable 24 VDC supply. Incorrect power segmentation is one of the most common causes of intermittent diagnostic faults after a module swap, and this should be the first checkpoint during post-replacement commissioning.

For applications where the ET 200S station is mounted in a compact control cabinet with limited DIN rail space, the physical dimensions of the 6ES7131-4BD00-0AA0 — combined with its terminal module — must be accounted for in the panel layout. The module occupies a standard ET 200S slot width of 15 mm, and the associated terminal module adds depth toward the back panel. In retrofit scenarios where the original terminal module is still serviceable, only the electronic module itself needs to be replaced, significantly reducing installation time and avoiding rewiring of field cables.

Programming compatibility is fully maintained when replacing the 6ES7131-4BD00-0AA0 on a like-for-like basis. The hardware configuration in SIMATIC STEP 7 (Classic) or TIA Portal does not require modification, and the existing symbol table, I/O address assignments, and diagnostic interrupt routines remain valid. For projects migrating from STEP 7 to TIA Portal as part of a broader S7-300 to S7-1500 upgrade, the TIA Portal Migration Tool handles the hardware configuration conversion, and the ET 200S station — including this DI module — is recognized automatically in the new project structure.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete ET 200S station replacement or expansion typically involves more than a single module. When migrating from an aging distributed I/O architecture, the following components are commonly sourced alongside the 6ES7131-4BD00-0AA0 to ensure a fully validated, production-ready station:

The 6ES7151-1BA02-0AB0 IM 151-1 PROFIBUS interface module serves as the station head for PROFIBUS DP networks and is the upstream communication gateway for all I/O modules in the ET 200S rack. If the interface module itself is the root cause of station faults, replacing it in conjunction with the DI module eliminates multiple failure points in a single maintenance window. For sites transitioning to PROFINET, the 6ES7151-3BA23-0AB0 IM 151-3 PN is the corresponding interface module and supports concurrent engineering with TIA Portal.

On the output side, the 6ES7132-4BD02-0AA0 4-channel digital output module is the natural pairing for the 6ES7131-4BD00-0AA0 in mixed DI/DO applications such as motor starter control, valve actuation, and conveyor interlocking. Sourcing both modules together ensures matched production dates and consistent hardware revision levels, which simplifies spare parts management and reduces diagnostic ambiguity during troubleshooting.

For process signals requiring analog measurement — such as temperature, pressure, or flow — the 6ES7134-4FB01-0AB0 2-channel analog input module integrates into the same ET 200S station without additional configuration overhead. In retrofit projects where the field wiring already carries 4–20 mA signals, this module can be added to the station during the same maintenance outage as the DI module replacement.

Power segmentation is managed by the 6ES7138-4CA01-0AA0 PM-E 24 VDC power module. Verifying the power module’s condition and correct placement is a mandatory step in any ET 200S retrofit. A degraded power module can cause intermittent input faults that are misdiagnosed as DI module failures, so proactive replacement during a planned outage is a sound maintenance strategy.

Finally, for programming and diagnostic access during commissioning, a SIMATIC PC Adapter USB A2 or CP 5711 PROFIBUS adapter is required to connect a TIA Portal or STEP 7 engineering station to the PLC. Having the correct programming cable on-site before the replacement window begins eliminates a common source of commissioning delays.

Retrofit Guidance FAQ

Q: Do I need to rewire field cables when replacing the 6ES7131-4BD00-0AA0?
A: No. If the existing terminal module (e.g., 6ES7193-4CA30-0AA0) is undamaged and remains in place, only the electronic module is swapped. All field wiring connected to the terminal module stays intact, eliminating rewiring risk and reducing replacement time to under 10 minutes per module.

Q: Will my STEP 7 or TIA Portal hardware configuration need to be updated?
A: For a like-for-like replacement of the same order number, no hardware configuration change is required. The PLC will recognize the module automatically on the next power cycle or online download. If you are migrating from a different ET 200S DI module variant, a minor hardware configuration update in STEP 7 or TIA Portal may be needed to match the new module’s order number.

Q: Is the module compatible with both PROFIBUS DP and PROFINET networks?
A: The 6ES7131-4BD00-0AA0 itself is fieldbus-agnostic at the module level — it communicates via the ET 200S backplane bus. The fieldbus protocol (PROFIBUS DP or PROFINET) is determined by the interface module installed at the head of the station. Replacing the DI module does not affect the fieldbus configuration.

Q: Can this module be used in an S7-1500 / TIA Portal migration project?
A: Yes. The ET 200S station, including the 6ES7131-4BD00-0AA0, is fully supported in TIA Portal and can be used as a distributed I/O station connected to an S7-1500 CPU via PROFINET (using the IM 151-3 PN interface module) or PROFIBUS DP (using the IM 151-1 interface module). This makes it an ideal interim solution during phased migrations where the I/O field wiring is retained while the controller tier is upgraded.

Q: What physical space is required in the control cabinet?
A: The module occupies a 15 mm slot width on the ET 200S DIN rail assembly. No additional panel cutouts or mounting hardware are required beyond the existing terminal module. Ensure adequate clearance above and below the station for cable management and ventilation per Siemens installation guidelines.

Q: How do I verify the module is functioning correctly after installation?
A: After installation, power on the ET 200S station and observe the module’s LED indicators. A steady green LED on the SF/BF channel indicates normal operation. Use STEP 7 or TIA Portal online diagnostics to confirm the module is recognized in the hardware configuration and that all four input channels report the correct signal states. Any diagnostic interrupt should be cleared in the PLC program after confirming field signal integrity.

Warranty Assurance

Every Siemens 6ES7131-4BD00-0AA0 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes a functional verification check to confirm power-up integrity, channel response, and backplane communication. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period, subject to inspection of the returned module. Our after-sales response target is 24 hours for warranty inquiries, and replacement units are dispatched within 3–5 business days of claim approval. We maintain buffer stock of high-demand ET 200S modules specifically to support warranty replacements without extended lead times.

For procurement teams requiring documentation, we can provide a test report, packing list, and commercial invoice with each shipment. Export compliance documentation for cross-border shipments is available upon request. All units are packed in anti-static ESD-safe packaging with foam cushioning to prevent transit damage.

For volume orders, OEM procurement, or project-based sourcing of ET 200S components, contact our technical sales team directly to discuss lead times, pricing, and consignment stock arrangements.
