Siemens 6ES5535-3LB12 Replacement Solution for SIMATIC S5

Product Overview

Siemens 6ES5535-3LB12 Replacement Solution for SIMATIC S5: Smooth Migration & Legacy System Compatibility

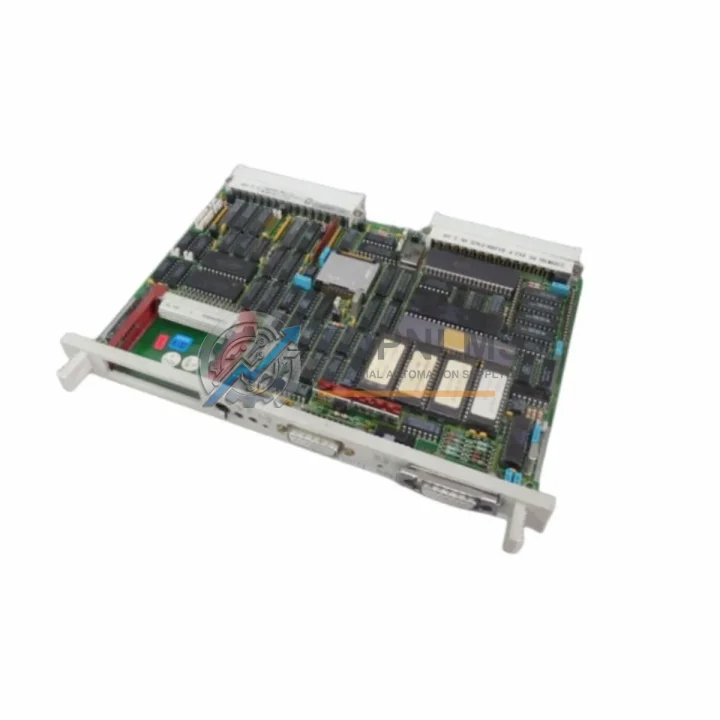

The Siemens 6ES5535-3LB12 is the CP535 Serial Communications Processor designed for the SIMATIC S5 programmable controller platform. As Siemens has officially discontinued the S5 product line, facilities still operating S5-115U, S5-135U, and S5-155U systems face increasing pressure to source reliable replacement modules before critical spares become unavailable. TOPNLMS maintains verified stock of the 6ES5535-3LB12 and provides a structured migration pathway for engineers who need to keep existing S5 racks operational or transition to a modern control architecture with minimal disruption.

The CP535 module occupies a standard S5 slot in the central controller rack and handles serial communication tasks — including point-to-point links, printer interfaces, and ASCII protocol exchanges — independently of the CPU. When replacing a failed or end-of-life 6ES5535-3LB12, the physical slot dimensions, backplane connector pinout, and power draw remain identical to the original specification, allowing a direct swap without rack modification. Engineers should verify the firmware revision stamped on the module label against the STEP 5 project’s hardware configuration to ensure the replacement unit matches the configured CP type.

For sites migrating from the S5 platform entirely, the 6ES5535-3LB12 is frequently the last module to be replaced because serial communication links to third-party devices — weighing scales, barcode readers, legacy SCADA RTUs, and Modbus-connected field instruments — are often undocumented and difficult to re-engineer. Keeping a tested spare CP535 in inventory allows the S5 system to remain operational while the broader migration to a SIMATIC S7-300 or S7-400 platform is planned and executed in stages. During this transition period, the 6ES5535-3LB12 continues to handle all serial I/O, while the new CPU handles process logic, reducing the scope of any single cutover window.

Wiring compatibility is a key consideration. The CP535 uses a 15-pin sub-D connector for its serial interface, and the existing cable assemblies, terminal blocks, and signal isolators connected to the original module can typically be reused without modification. If the installation includes a 6ES5700-series power supply module or a 6ES5183-series interface submodule for distributed I/O expansion, these components are unaffected by the CP535 replacement and continue to operate normally on the same backplane.

Communication protocol compatibility is equally important. The 6ES5535-3LB12 supports configurable baud rates, parity settings, and data frame formats through STEP 5 parameterization. When sourcing a replacement, TOPNLMS recommends requesting the specific hardware revision that matches the original to avoid re-parameterization. In cases where the original parameterization file is unavailable, our technical team can assist with standard CP535 configuration templates for common ASCII and 3964R protocol setups.

For facilities planning a phased migration to the S7 platform, the CP535 replacement strategy integrates naturally with a broader upgrade sequence. A typical migration path begins with replacing aging 6ES5095-series CPU modules and 6ES5441-series digital output modules while retaining the CP535 for serial communication continuity. Once the new S7 CPU is commissioned and the process logic is validated, the serial communication function can be migrated to a CP341 or CP343 module on the S7 rack, at which point the 6ES5535-3LB12 is decommissioned. This staged approach eliminates the need for a full system shutdown and allows each subsystem to be validated independently.

Physical space and installation environment requirements for the 6ES5535-3LB12 are consistent with the standard S5 rack format. The module fits into any slot of a 6ES5700-series or 6ES5183-series rack that supports communications processors. Cabinet ventilation, DIN rail mounting, and existing cable management infrastructure require no modification for a like-for-like replacement.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful CP535 replacement or S5 migration typically involves coordinating several interdependent components. When replacing the 6ES5535-3LB12, engineers should audit the adjacent modules in the same rack. The 6ES5095-8MA02 CPU and 6ES5101-8UA13 CPU memory module are common co-replacements, as aging CPUs and memory cards often fail in proximity to communications processors in long-running S5 installations. The 6ES5700-8MA11 power supply module should also be inspected, as power supply degradation is a leading cause of intermittent CP535 faults that are misdiagnosed as module failures.

For serial interface wiring, the 6ES5734-1BD20 programming cable is required for STEP 5 parameterization of the CP535 and should be available on-site during commissioning. If the serial link connects to a Modbus RTU field device network, a 6ES5752-0AA23 SINEC L1 communications module or a dedicated signal isolator may be present in the cable path and should be tested independently before concluding that the CP535 is the root cause of a communication fault.

For sites executing a full S5-to-S7 migration, the Siemens CP341 serial communications module for the S7-300 rack is the functional successor to the CP535, supporting the same ASCII and 3964R protocols with updated parameterization via STEP 7. The IM360/IM361 interface modules for S7-300 expansion racks and the SM321 digital input modules are frequently ordered alongside the CP341 as part of a complete rack build-out. TOPNLMS can supply these components individually or as part of a coordinated migration kit.

Retrofit Guidance FAQ

Q: Can I install the replacement 6ES5535-3LB12 without modifying my STEP 5 project?
A: Yes, provided the hardware revision of the replacement matches the original. The CP535 is parameterized within the STEP 5 hardware configuration, and a matching revision allows the existing project to be downloaded without changes.

Q: Will my existing serial cable wiring need to be changed?
A: No. The 15-pin sub-D connector and signal levels are identical across all CP535 revisions. Existing cable assemblies, junction boxes, and signal isolators can be reused directly.

Q: What communication protocols does the 6ES5535-3LB12 support?
A: The CP535 supports ASCII protocol, 3964R, and point-to-point serial communication. Baud rate, parity, stop bits, and data frame format are all configurable via STEP 5 parameterization.

Q: How do I verify the module is functioning correctly after installation?
A: Use the STEP 5 diagnostic functions to read the CP535 status word. A green RUN LED on the module face and successful data exchange with the connected serial device confirm correct operation. TOPNLMS provides pre-shipment test reports on request.

Q: Is the 6ES5535-3LB12 compatible with S5-115U, S5-135U, and S5-155U systems?
A: Yes. The CP535 is compatible with all three S5 central controller variants, subject to the slot assignment rules defined in the S5 system manual.

Q: What is the lead time for delivery?
A: Units in stock ship within 1–3 business days from Xiamen. Express international shipping is available. Contact [email protected] for freight options to your region.

Warranty Assurance

Every 6ES5535-3LB12 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes functional verification including power-on self-test, backplane interface check, and serial port continuity testing. A pre-shipment inspection report is available on request.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response target is 24 hours for initial technical assessment. Replacement units are dispatched with priority shipping to minimize production downtime. All warranty claims are handled directly by our technical team — no third-party intermediaries.

For procurement teams requiring documentation, TOPNLMS can provide a commercial invoice, packing list, certificate of conformity, and test report with each shipment. Bulk orders and long-term supply agreements for S5 spare parts are supported.
