Siemens 6ES5526-3LF01 Ruggedized Serial Communication Module

Product Overview

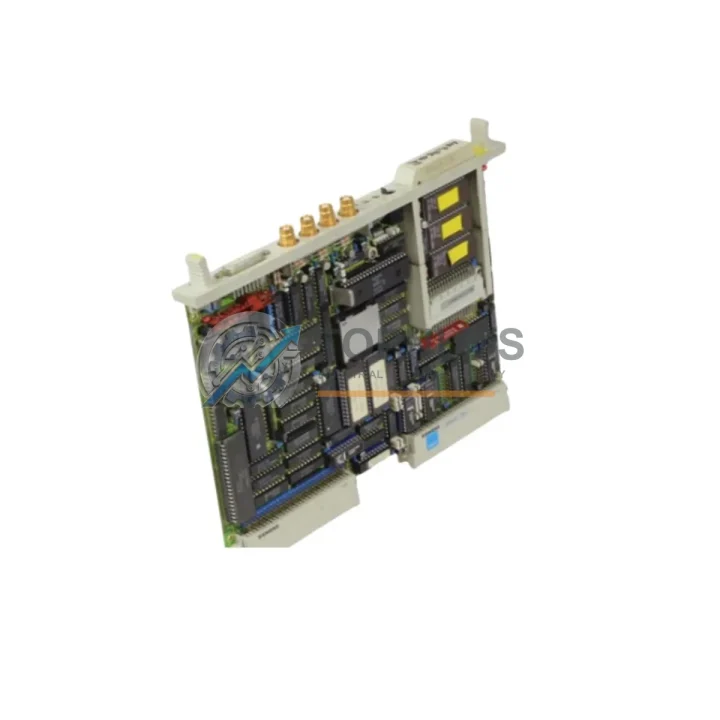

Siemens 6ES5526-3LF01 Ruggedized Serial Communication Module for Harsh Industrial Environments

The Siemens 6ES5526-3LF01 is a serial communication processor module engineered for the SIMATIC S5 programmable logic controller platform — one of Siemens’ most enduring and widely deployed industrial automation architectures. Designed to operate reliably in the most demanding process environments, this module delivers stable, high-integrity serial data exchange between S5 CPUs and peripheral devices, field instruments, and supervisory systems, even under conditions of elevated temperature, humidity, vibration, and electromagnetic interference.

In continuous production environments — oil refineries, chemical processing plants, power generation facilities, water treatment stations, and heavy metallurgical operations — communication integrity is not optional. A single dropped frame or bus fault can cascade into process shutdowns, safety interlocks, or unplanned downtime. The 6ES5526-3LF01 addresses this challenge with robust hardware design, proven firmware, and full compatibility with the SIMATIC S5 backplane architecture, making it a trusted choice for both original installations and critical spare-part replacement programs.

At TOPNLMS, every 6ES5526-3LF01 unit is sourced from verified supply channels, individually inspected, and dispatched with a 12-month quality warranty. Our inventory is maintained specifically to support industrial customers who cannot afford lead-time uncertainty on mission-critical spares.

Rugged Specifications Table

Comprehensive Protection Solutions

The 6ES5526-3LF01 does not operate in isolation — it functions as a critical node within a broader SIMATIC S5 control architecture. In a typical S5-based control cabinet, this communication processor works alongside the 6ES5095-8MA02 S5-95U CPU module and 6ES5101-8UA13 bus unit to form a tightly integrated control backbone. Digital and analog I/O expansion is commonly handled by modules such as the 6ES5430-4UA12 digital input module and 6ES5470-4UA12 analog output module, which feed process data through the backplane to the communication processor for upstream SCADA or DCS reporting.

In installations where the S5 system interfaces with variable frequency drives or motor control centers, the 6ES5526-3LF01 provides the serial gateway function that allows the Siemens MICROMASTER or SINAMICS drive series to exchange speed references and fault status with the PLC. Similarly, in safety-instrumented systems, it supports data exchange with Siemens SIRIUS safety relays and 3SK1 safety relay modules, ensuring that safety loop status is visible at the supervisory level without compromising the integrity of the safety circuit itself.

Power supply stability is equally critical in harsh environments. The 6ES5526-3LF01 relies on a clean, regulated 24 VDC rail — typically sourced from a Siemens SITOP PSU100S or SITOP modular power supply — to maintain communication integrity during voltage transients common in heavy industrial facilities. Surge protection and EMI filtering provided by Siemens SIPROTEC protective relays and line-side filters further shield the communication module from grid-borne disturbances in substations and motor rooms.

For facilities running mixed-generation automation infrastructure, the 6ES5526-3LF01 also plays a bridging role: it enables legacy S5 controllers to communicate with newer SIMATIC S7-300 or S7-400 systems via serial protocol converters, extending the operational life of proven S5 installations without requiring full platform migration. Terminal modules and Siemens ET 200 distributed I/O stations can be integrated into the same communication network, providing field-level data aggregation across large plant footprints.

Application in Critical Infrastructure

In oil and gas upstream and midstream operations, the 6ES5526-3LF01 is deployed in wellhead control panels, compressor station PLCs, and pipeline SCADA outstations where continuous, uninterrupted serial communication between field controllers and the central DCS is non-negotiable. The module’s tolerance for wide temperature swings and its resistance to the electromagnetic noise generated by high-power pumping equipment make it particularly well-suited to these environments.

In coal and metal mining operations, S5-based control systems equipped with the 6ES5526-3LF01 manage conveyor belt sequencing, ventilation control, and hoisting machinery — applications where vibration levels are extreme and dust ingress is a constant threat. The module’s sealed construction and robust backplane connection ensure reliable operation even in these mechanically aggressive conditions.

At thermal and hydroelectric power generation facilities, the 6ES5526-3LF01 supports turbine control systems and auxiliary plant automation, where it handles serial communication between the unit controller and the plant-wide energy management system. Its long-term availability as a spare part is especially valued in power plants with 20–30 year asset lifecycles, where replacing the entire PLC platform is not economically or operationally feasible.

In municipal water treatment and wastewater management plants, the module enables reliable communication between S5 PLCs controlling dosing pumps, filtration systems, and UV disinfection units, and the SCADA systems used by plant operators for remote monitoring and compliance reporting. The module’s proven reliability in high-humidity environments — common in water treatment facilities — is a key selection criterion for maintenance engineers responsible for these assets.

Metallurgical and steel production facilities represent another core application domain. In electric arc furnace control systems and rolling mill automation, the 6ES5526-3LF01 handles the high-cycle serial communication demands of real-time process control, where communication latency or data loss directly impacts product quality and equipment safety.
